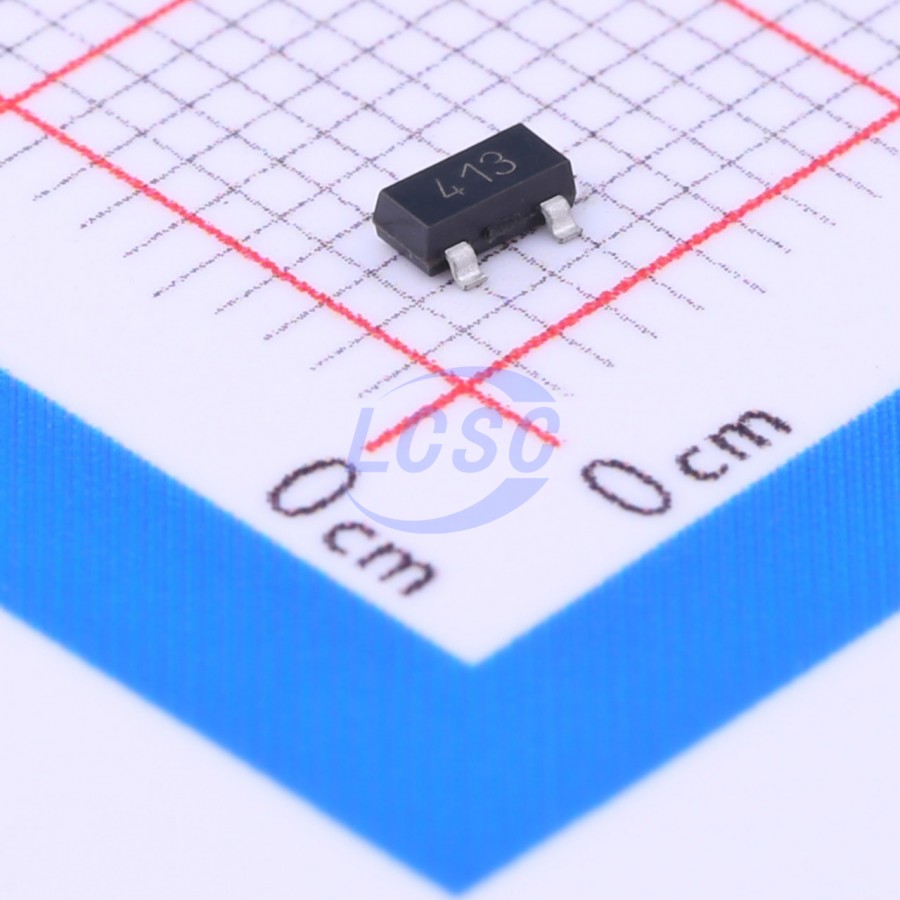

FMMT413TD
Bipolar (BJT) Transistor NPN 50V 100mA 150MHz 0.5W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS NPN 50V 100mA SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- FMMT413TD
- Store part #
- C193670
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
844 in stock
#C193670
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹729.81 | ₹729.81 |
| 10+ | ₹607.96 | ₹6,079.60 |
| 30+ | ₹533.80 | ₹16,014.00 |
| 100+ | ₹471.80 | ₹47,180.00 |
1 × ₹729.81
₹729.81
excl. GST
₹861.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
FMMT413TD
₹729.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 150MHz
- Collector - Emitter Voltage VCEO
- 50V
- Emitter-Base Voltage VEBO
- 6V
- DC Current Gain
- 50
- Current - Collector(Ic)
- 100mA
- Pd - Power Dissipation
- 500mW
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 150mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
The FMMT413 is a NPN silicon planar bipolar transistor optimized for avalanche mode operation. Tight process control and low inductance packaging combine to produce high current pulses with fast edges, ideal for laser diode driving.
Applications
- Laser LED drivers
- Fast edge generation
- High speed pulse generators
Key features
- Avalanche mode operation
- 50A peak avalanche current
- Low inductance packaging
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FMMT495TA#C47296DIODES · SOT-23 | DIODES | SOT-23 | 4,750 | ₹62.71 · 4,750 in stock | View |
 | FMMT495TC#C5157727DIODES · SOT-23 | DIODES | SOT-23 | 5 | ₹18.22 · 5 in stock | View |
 | FMMT495#C5245504DIODES · SOT-23 | DIODES | SOT-23 | 6 | ₹85.49 · 6 in stock | View |
 | MMBTA44#C20069141R+O · SOT-23 | R+O | SOT-23 | 5,93,690 | ₹7.61 · 5,93,690 in stock | View |
 | MMBTA44_R1_00001#C6093930PANJIT · SOT-23 | PANJIT | SOT-23 | On request | ₹6.88 · 0 in stock | View |
