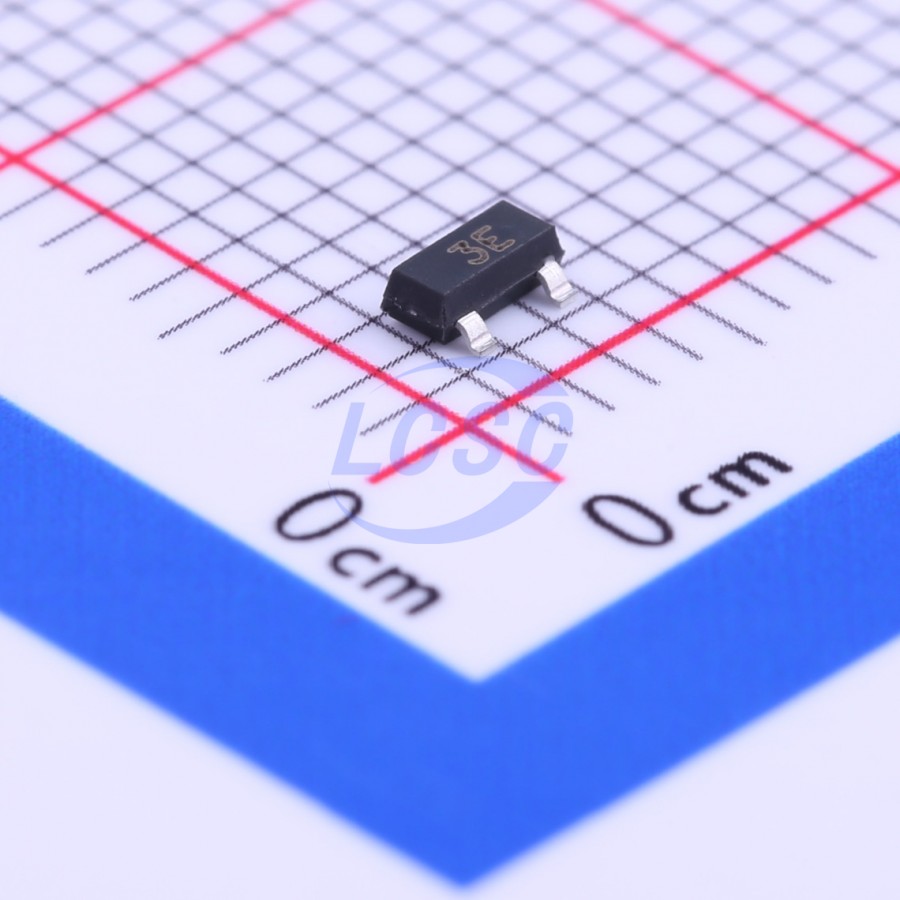

FMMTA42TA
Bipolar (BJT) Transistor NPN 300V 200mA 50MHz 350mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS NPN 300V 200mA SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- FMMTA42TA
- Store part #
- C151355
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,040 in stock
#C151355
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.78 | ₹107.80 |
| 100+ | ₹9.01 | ₹901.00 |
| 300+ | ₹8.12 | ₹2,436.00 |
| 3,000+ | ₹7.46 | ₹22,380.00 |
| 6,000+ | ₹6.92 | ₹41,520.00 |
| 9,000+ | ₹6.65 | ₹59,850.00 |
10 × ₹10.78
₹107.80
excl. GST
₹127.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FMMTA42TA
₹107.80 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 50MHz
- Collector - Emitter Voltage VCEO
- 300V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 25
- Current - Collector(Ic)
- 200mA
- Pd - Power Dissipation
- 350mW
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Key features
- BVCEO > 300 V
- IC = 200 mA High Collector Current
- 350mW Power Dissipation
- Excellent hFE Characteristics up to 30mA
- Complementary Part Number FMMTA92
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- An automotive-compliant part is available under separate datasheet (FMMTA42Q)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMBTA42#C713680LGE · SOT-23 | LGE | SOT-23 | 1,640 | ₹4.33 · 1,640 in stock | View |
| FJV42MTF#C463258onsemi · SOT-23-3 | onsemi | SOT-23-3 | 845 | ₹14.95 · 845 in stock | View | |
 | SMMBTA42LT1G#C462960onsemi · SOT-23 | onsemi | SOT-23 | 180 | ₹26.27 · 180 in stock | View |
 | S-LMBTA42LT1G#C5336147LRC · SOT-23 | LRC | SOT-23 | 170 | ₹5.98 · 170 in stock | View |
 | LMBTA42LT1G#C78717LRC · SOT-23 | LRC | SOT-23 | 120 | ₹3.36 · 120 in stock | View |
