Advanced Analog TechnologyDatasheet (PDF)

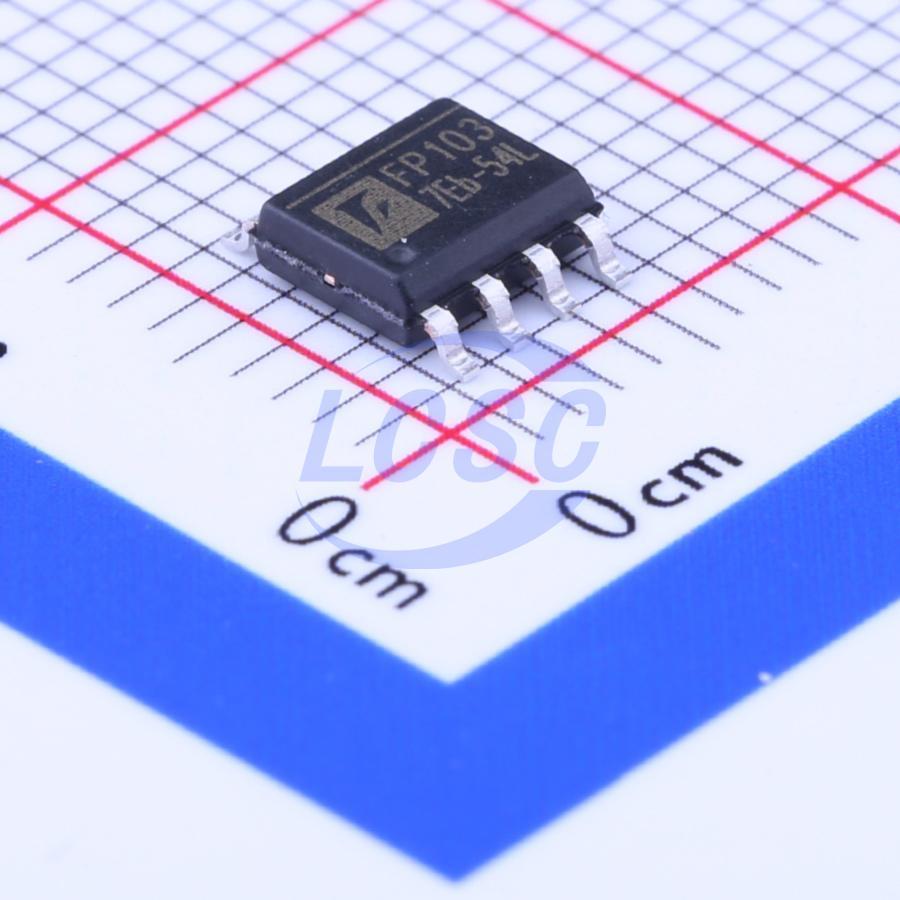

FP103DR-LF
50mA 2 1mV 400V/ms 20nA 85dB 700uA 900kHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
DUAL OPERATIONAL AMPLIFIER AND REFERENCE REGULATOR
- Manufacturer
- Advanced Analog Technology
- Manufacturer part #
- FP103DR-LF
- Store part #
- C114304
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C114304
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.67 | ₹243.35 |
| 50+ | ₹38.47 | ₹1,923.50 |
| 150+ | ₹34.11 | ₹5,116.50 |
| 500+ | ₹28.66 | ₹14,330.00 |
| 2,500+ | ₹26.22 | ₹65,550.00 |
| 5,000+ | ₹24.77 | ₹1,23,850.00 |
5 × ₹48.67
₹243.35
excl. GST
₹287.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FP103DR-LF
₹243.35 for 5 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -20℃~+85℃
- Ib - Input Bias Current
- 20nA
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 700uA
- Gain Bandwidth Product
- 900kHz
- Dual Supply
- -16V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.118 g
Overview
The FP103, a 1-chip composed of one independent op-amp (OPA2) and another op-amp (OPA1) with a 2.5V precision voltage reference on non-inverting input, applied to offer space and low cost in many applications such as the secondary feedback control of power supply, DC/DC converter or adaptor. Using few external components, FP103, a high performance integrated IC, is designed for a feedback circuit.
Applications
- secondary feedback control of power supply
- DC/DC converter
- adaptor
Key features
- Fixed Reference Voltage: 2.5V
- Reference Voltage Precision: 1%
- Output sink current up to 100mA
- Low quiescent supply current
- Wide operating voltage range: 3~32V(+/-16V)
- Low input offset voltage
- Unit gain bandwidth: 0.9MHz
- Package: PDIP8/SOP8
