FOJAN

FRL1210JR750TS

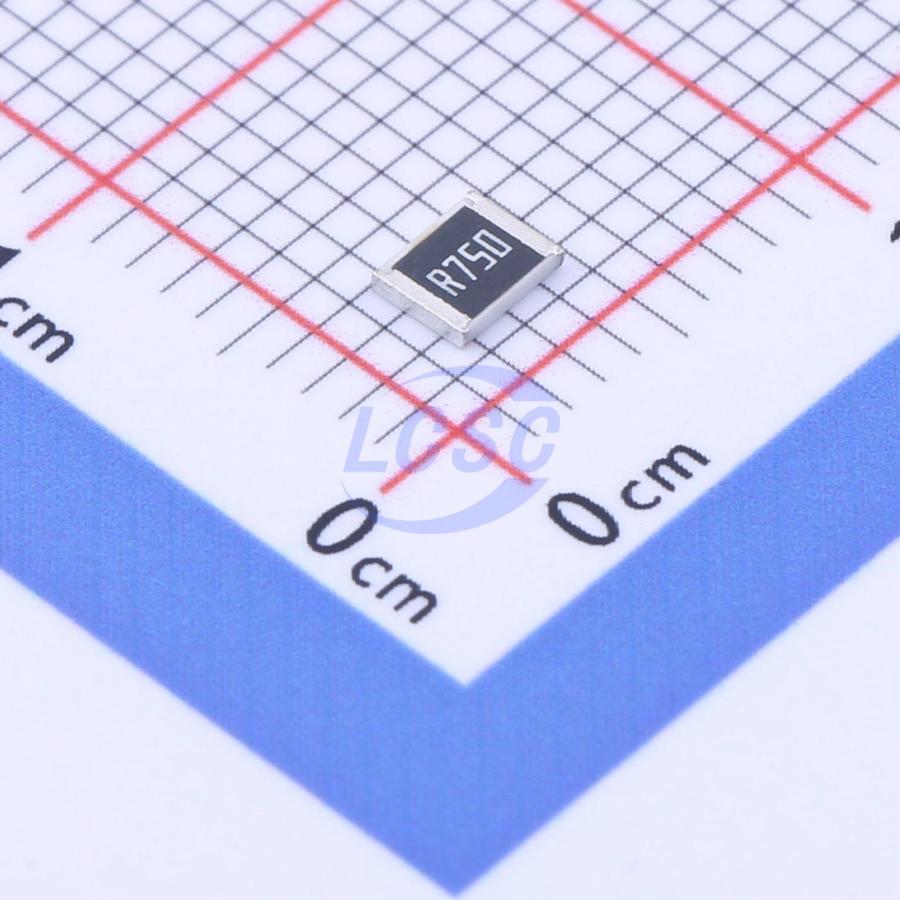

750mΩ ±5% 500mW 1210 Thick Film Resistor

1210RoHSActive

RES 750mΩ ±5% 500mW 1210

Manufacturer: FOJAN
Manufacturer part #: FRL1210JR750TS
Store part #: C2974124
Package / case: 1210
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,64,650 in stock

#C2974124

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
50+	₹1.59	₹79.50
500+	₹1.26	₹630.00
1,500+	₹1.07	₹1,605.00
5,000+	₹0.9393	₹4,696.50
25,000+	₹0.8467	₹21,167.50
50,000+	₹0.7938	₹39,690.00

Quantity (min 50, multiples of 50)

50 × ₹1.59

₹79.50

excl. GST

₹93.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

FRL1210JR750TS

₹79.50 for 50 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Power(Watts): 500mW
Resistance: 750mΩ
Voltage Rating: 500V
Type: Thick Film Resistor
Tolerance: ±5%
Temperature Coefficient: ±200ppm/℃
Operating Temperature: -55℃~+155℃

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 50 (multiples of 50)
Unit weight: 0.034 g

Overview

Applications

Overcurrent protection for switching power supplies and audio equipment, voltage regulators, power converters, chargers, LED driver power supplies, portable devices, etc.

Key features

Compact and lightweight
Miniature and lightweight
Stable electrical performance, high reliability
RoHS compliant
Halogen-free compliant
Low resistance value

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	FRL1210FR750TS#C2934322FOJAN · 1210	FOJAN	1210	3,900	₹2.25 · 3,900 in stock	View
