onsemiDatasheet (PDF)

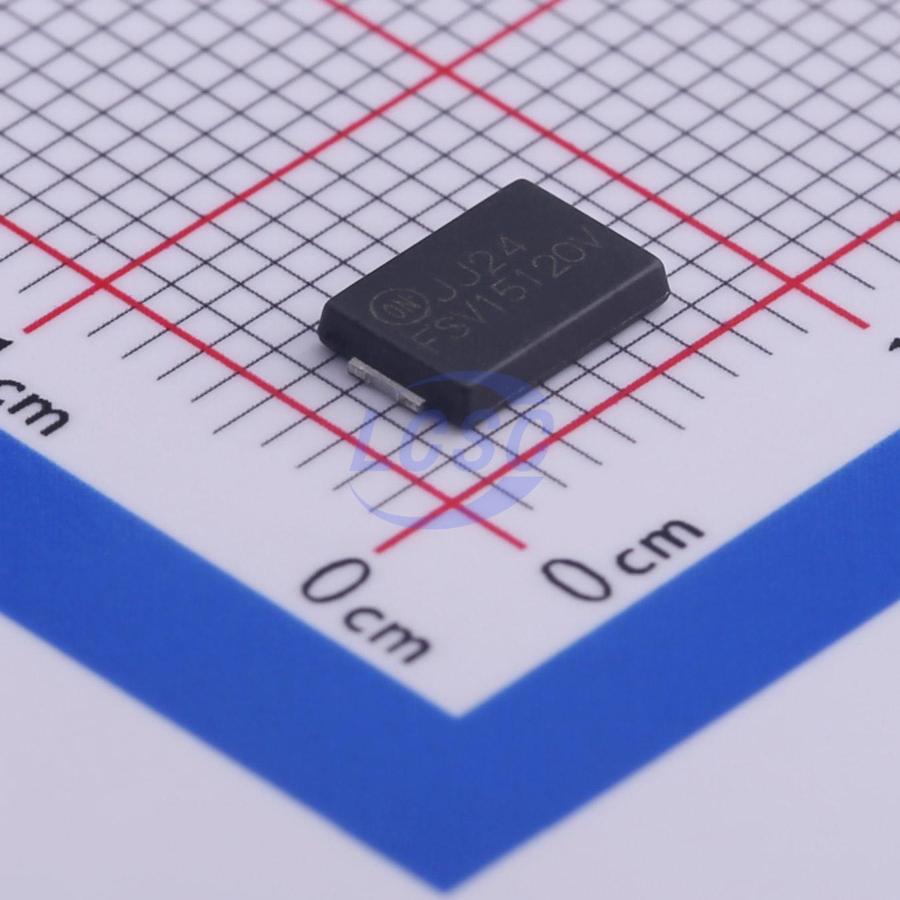

FSV15120V
Diode 120V 15A Surface Mount TO-277-3
TO-277-3ROHS3 CompliantActive
DIODE SCHOTTKY 120V TO-277-3
- Manufacturer
- onsemi
- Manufacturer part #
- FSV15120V
- Store part #
- C463273
- Package / case
- TO-277-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
132 in stock
#C463273
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹238.59 | ₹238.59 |
| 10+ | ₹206.14 | ₹2,061.40 |
| 30+ | ₹185.71 | ₹5,571.30 |
| 100+ | ₹164.86 | ₹16,486.00 |
| 500+ | ₹155.41 | ₹77,705.00 |
| 1,000+ | ₹151.32 | ₹1,51,320.00 |
1 × ₹238.59
₹238.59
excl. GST
₹281.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FSV15120V
₹238.59 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 120V
- Voltage - Forward(Vf@If)
- 790mV@15A
- Reverse Leakage Current (Ir)
- 35uA@120V
- Non-Repetitive Peak Forward Surge Current
- 250A
- Current - Rectified
- 15A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.144 g
Overview
Key features
- Ultra- Low Forward Voltage Drop
- Low Thermal Resistance
- Very Low Profile: Typical Height of 1.1mm
- Trench Schottky Technology
- Green Molding Compound as per IEC61249 Standard
- Non- DAP Option Only
- These Devices are Pb- Free, Halogen Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NSB15200#C55137672BORN · TO-277B | BORN | TO-277B | 2,000 | ₹37.49 · 2,000 in stock | View |
 | SS15U150P#C5339827YANGJIE · TO-277 | YANGJIE | TO-277 | 1,805 | ₹35.87 · 1,805 in stock | View |
 | SB20150#C55269737R+O · TO-277 | R+O | TO-277 | 4,625 | ₹48.26 · 4,625 in stock | View |
 | SP15200L#C24833856XCH · TO-277B | XCH | TO-277B | 3,725 | ₹42.87 · 3,725 in stock | View |
 | ST20120L#C5295578JSCJ · TO-277 | JSCJ | TO-277 | 21,506 | ₹94.10 · 21,506 in stock | View |
