onsemiDatasheet (PDF)

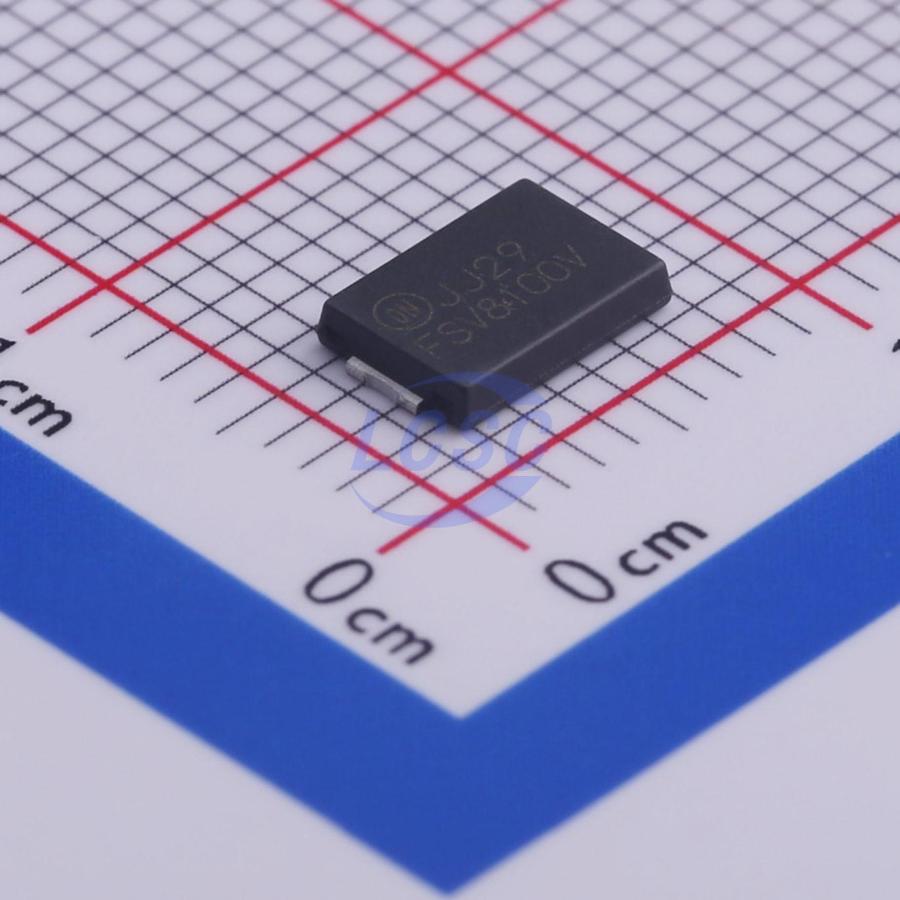

FSV8100V
Diode 100V 8A Surface Mount TO-277-3
TO-277-3ROHS3 CompliantActive
DIODE SCHOTTKY 100V TO-277-3
- Manufacturer
- onsemi
- Manufacturer part #
- FSV8100V
- Store part #
- C463036
- Package / case
- TO-277-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
101 in stock
#C463036
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.26 | ₹106.26 |
| 10+ | ₹84.96 | ₹849.60 |
| 30+ | ₹74.33 | ₹2,229.90 |
| 100+ | ₹63.68 | ₹6,368.00 |
| 500+ | ₹57.38 | ₹28,690.00 |
| 1,000+ | ₹54.11 | ₹54,110.00 |
1 × ₹106.26
₹106.26
excl. GST
₹125.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
FSV8100V
₹106.26 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 670mV@8A
- Reverse Leakage Current (Ir)
- 50uA@100V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.142 g
Overview
Applications
- AC- DC and DC- DC Converter
- Mobile Charger
- LED Lighting
- Solar Panel
- Reverse Polarity Protection
Key features
- Ultra- Low Forward Voltage Drop
- Low Thermal Resistance
- Very Low Profile: Typical Height of 1.1mm
- Trench Schottky Technology
- Green Molding Compound as per IEC61249 Standard
- Non- DAP Option Only
- These Devices are Pb- Free, Halogen Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SVT10100UB_R2_00001#C6241494PANJIT · TO-277B | PANJIT | TO-277B | 4,730 | ₹74.47 · 4,730 in stock | View | |
 | SP10100L#C5375264XCH · TO-277B | XCH | TO-277B | 3,555 | ₹27.61 · 3,555 in stock | View |
 | SP10U100L#C5375265XCH · TO-277B | XCH | TO-277B | 3,630 | ₹32.06 · 3,630 in stock | View |
 | ST10100L#C7428202NH · TO-277B | NH | TO-277B | 3,595 | ₹31.21 · 3,595 in stock | View |
 | NRVTS10100PFST3G-HXY#C53262814HXY MOSFET · TO-277 | HXY MOSFET | TO-277 | 197 | ₹73.72 · 197 in stock | View |
