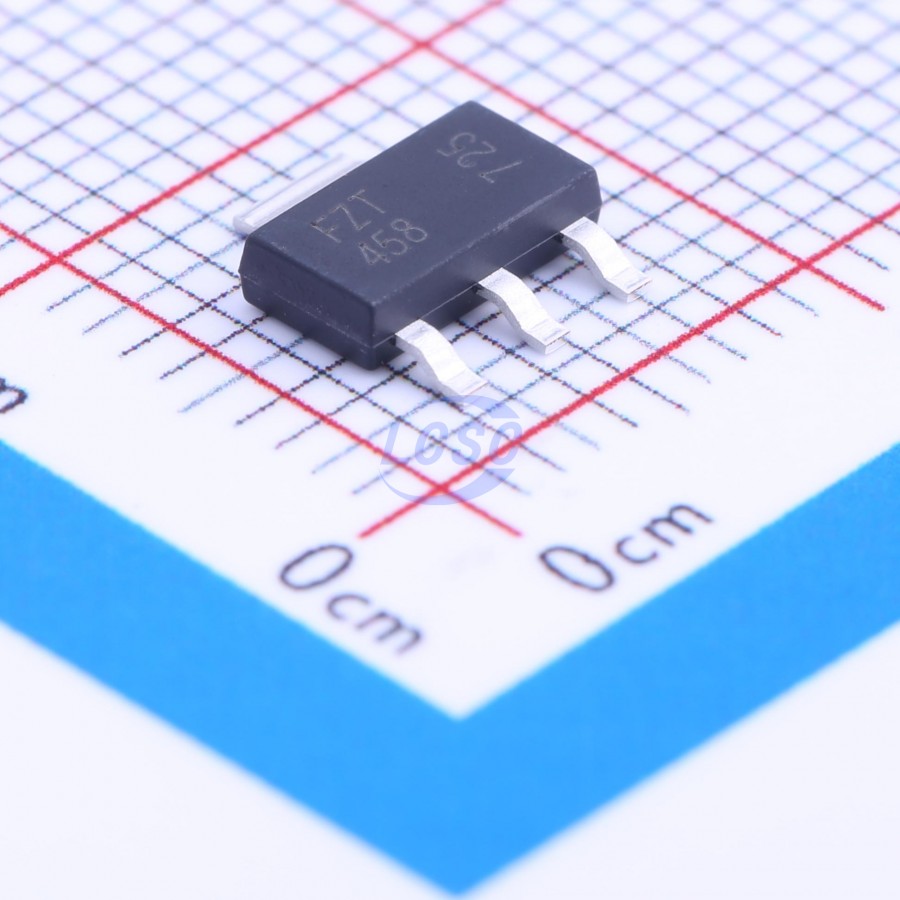

FZT458TA
Bipolar (BJT) Transistor NPN 400V 300mA 50MHz 3W Surface Mount SOT-223
SOT-223ROHS CompliantActive
TRANS NPN 400V 300mA SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- FZT458TA
- Store part #
- C154737
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
537 in stock
#C154737
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹145.86 | ₹145.86 |
| 10+ | ₹119.08 | ₹1,190.80 |
| 30+ | ₹105.80 | ₹3,174.00 |
| 100+ | ₹92.52 | ₹9,252.00 |
| 500+ | ₹84.69 | ₹42,345.00 |
| 1,000+ | ₹80.54 | ₹80,540.00 |
1 × ₹145.86
₹145.86
excl. GST
₹172.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
FZT458TA
₹145.86 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 50MHz
- Collector - Emitter Voltage VCEO
- 400V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 100
- Current - Collector(Ic)
- 300mA
- Pd - Power Dissipation
- 3W
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 200mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
Key features
- BVCEO > 400V
- IC = 300mA High Continuous Current
- Excellent hFE Characteristics up to 100mA
- Low Saturation Voltage VCE(sat) < 200mV @20mA
- Complementary PNP Type: FZT558
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| FZT458QTA#C5747946DIODES · SOT-223-3 | DIODES | SOT-223-3 | On request | ₹81.80 · 0 in stock | View | |
 | PBHV8140Z,115#C456083Nexperia · SOT-223 | Nexperia | SOT-223 | On request | ₹69.99 · 0 in stock | View |
