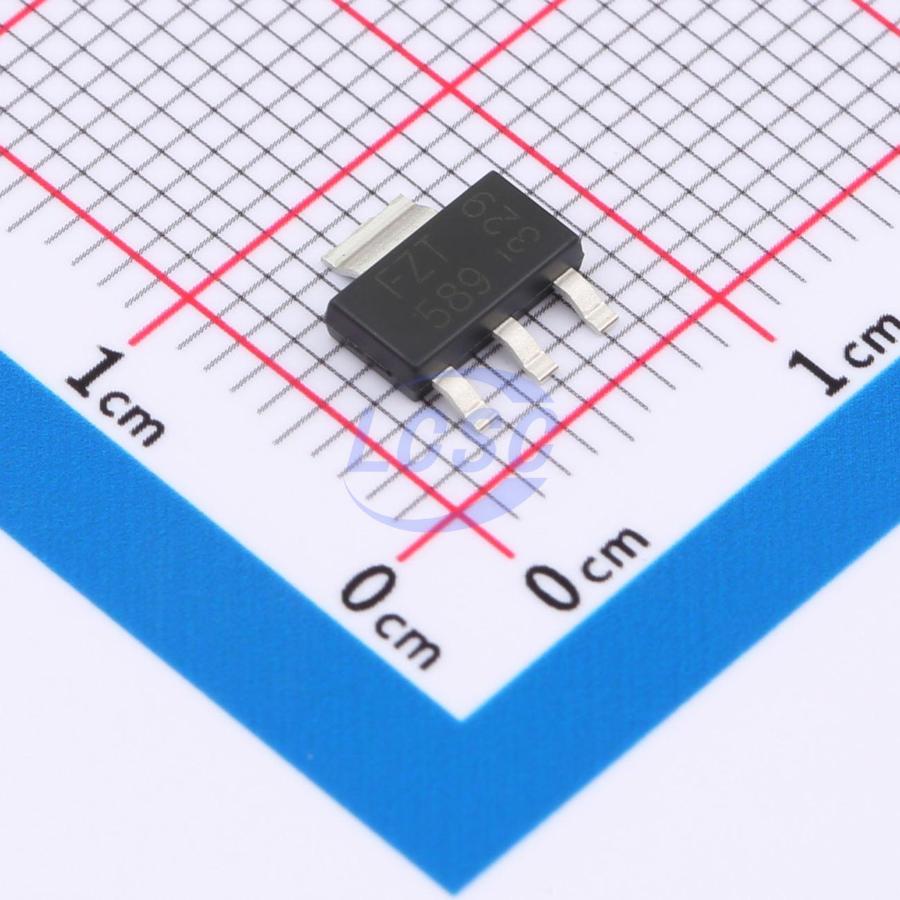

FZT589TA
Bipolar (BJT) Transistor PNP 30V 1A 100MHz 3W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
TRANS PNP 30V 1A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- FZT589TA
- Store part #
- C5245602
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C5245602
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.59 | ₹77.59 |
| 10+ | ₹76.52 | ₹765.20 |
| 30+ | ₹75.66 | ₹2,269.80 |
| 100+ | ₹75.01 | ₹7,501.00 |
1 × ₹77.59
₹77.59
excl. GST
₹91.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
FZT589TA
₹77.59 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 100MHz
- Collector - Emitter Voltage VCEO
- 30V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 80
- Current - Collector(Ic)
- 1A
- Pd - Power Dissipation
- 3W
- Configuration
- Standalone
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 350mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.161 g
Overview
Key features
- BVCEO > -30V
- Ic = -1A High Continuous Current
- Excellent hFE Characteristics up to -2A
- Low Saturation Voltage VCE(sat) < -0.35V @ -1A
- Complementary NPN Type: FZT489
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
