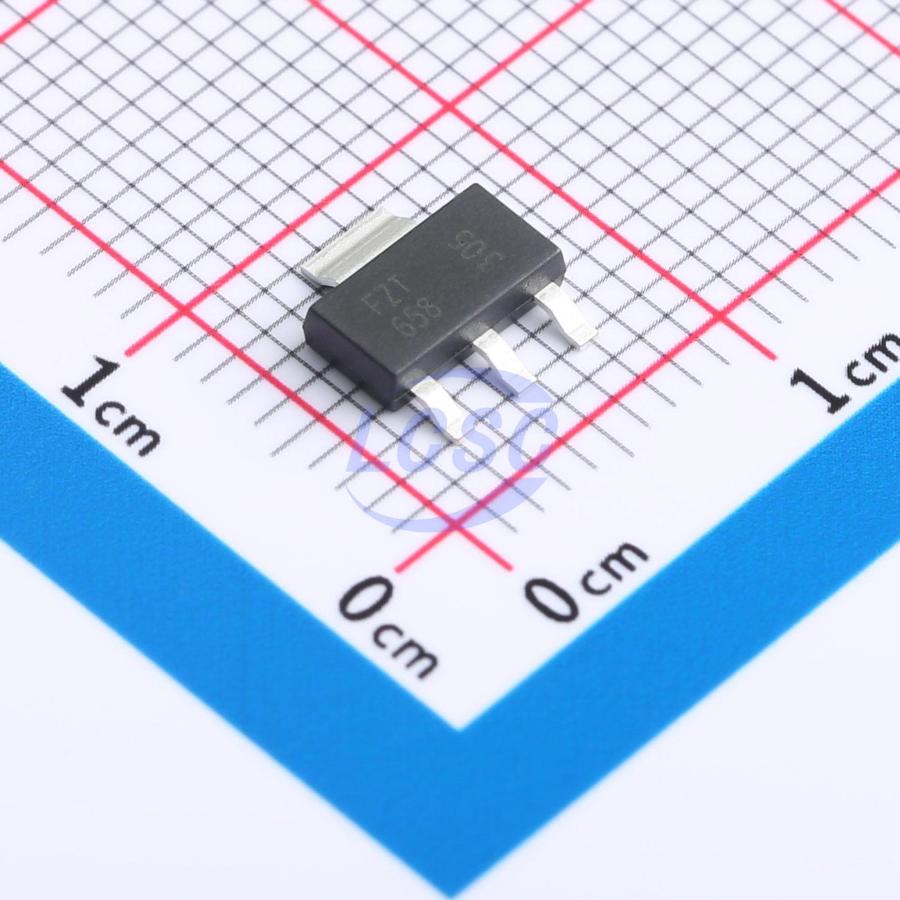

FZT658
Bipolar (BJT) Transistor NPN 400V 0.5A 50MHz 1.6W Surface Mount SOT-223
SOT-223ROHS CompliantActive
TRANS NPN 400V 0.5A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- FZT658
- Store part #
- C5245513
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
344 in stock
#C5245513
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.98 | ₹131.98 |
| 10+ | ₹106.71 | ₹1,067.10 |
| 30+ | ₹94.09 | ₹2,822.70 |
| 100+ | ₹81.46 | ₹8,146.00 |
| 500+ | ₹74.05 | ₹37,025.00 |
| 1,000+ | ₹70.13 | ₹70,130.00 |
1 × ₹131.98
₹131.98
excl. GST
₹155.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
FZT658
₹131.98 for 1 + GST
Specifications
- Current - Collector Cutoff
- 100nA
- Operating Temperature
- -55℃~+150℃
- Transition frequency(fT)
- 50MHz
- Collector - Emitter Voltage VCEO
- 400V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 40
- Pd - Power Dissipation
- 1.6W
- Current - Collector(Ic)
- 500mA
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 250mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.198 g
Overview
Key features
- BVCEO > 400V
- Ic = 500mA High Continuous Current
- ICM = 1A Peak Pulse Current
- Low Saturation Voltage VCE(sat) < 250mV @ 50mA
- hFE > 40 Specified up to 200mA for High Current Gain Hold-Up
- Complementary PNP Type: FZT758
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Package: SOT223
- Package Material: Molded Plastic. “Green” Molding Compound; UL Flammability Rating 94V - 0
- Moisture Sensitivity: Level 1 per J - STD - 020
- Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL - STD - 202, Method 208
- Weight: 0.112 grams (Approximate)
