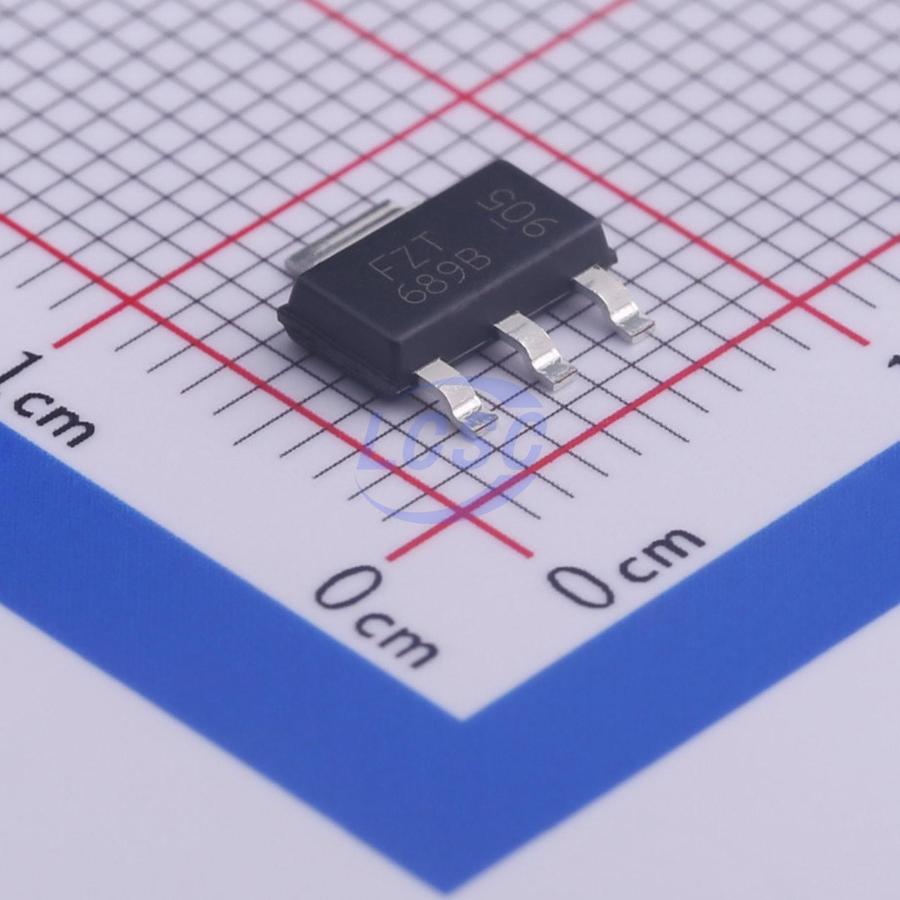

FZT689BTA
Bipolar (BJT) Transistor NPN 20V 3A 150MHz 1.6W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
TRANS NPN 20V 3A SOT-223
- Manufacturer
- DIODES
- Manufacturer part #
- FZT689BTA
- Store part #
- C460218
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
113 in stock
#C460218
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.12 | ₹83.12 |
| 10+ | ₹66.85 | ₹668.50 |
| 30+ | ₹59.69 | ₹1,790.70 |
| 100+ | ₹51.00 | ₹5,100.00 |
| 500+ | ₹47.10 | ₹23,550.00 |
| 1,000+ | ₹44.72 | ₹44,720.00 |
1 × ₹83.12
₹83.12
excl. GST
₹98.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
FZT689BTA
₹83.12 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 150MHz
- Collector - Emitter Voltage VCEO
- 20V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 400
- Current - Collector(Ic)
- 3A
- Pd - Power Dissipation
- 1.6W
- Configuration
- Standalone
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.143 g
Overview
Applications
- Darlington replacements
- Flash gun convertors and battery powered circuits
Key features
- BVCEO > 20 V
- BVCBO > 20V
- IC = 3.0 A High Continuous Current
- hFE > 400 @ 2A and Low Saturation Voltage
- VCE(sat) < 450 mV at 3A
- Complementary PNP Type: DIODES™ FZT789B
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
