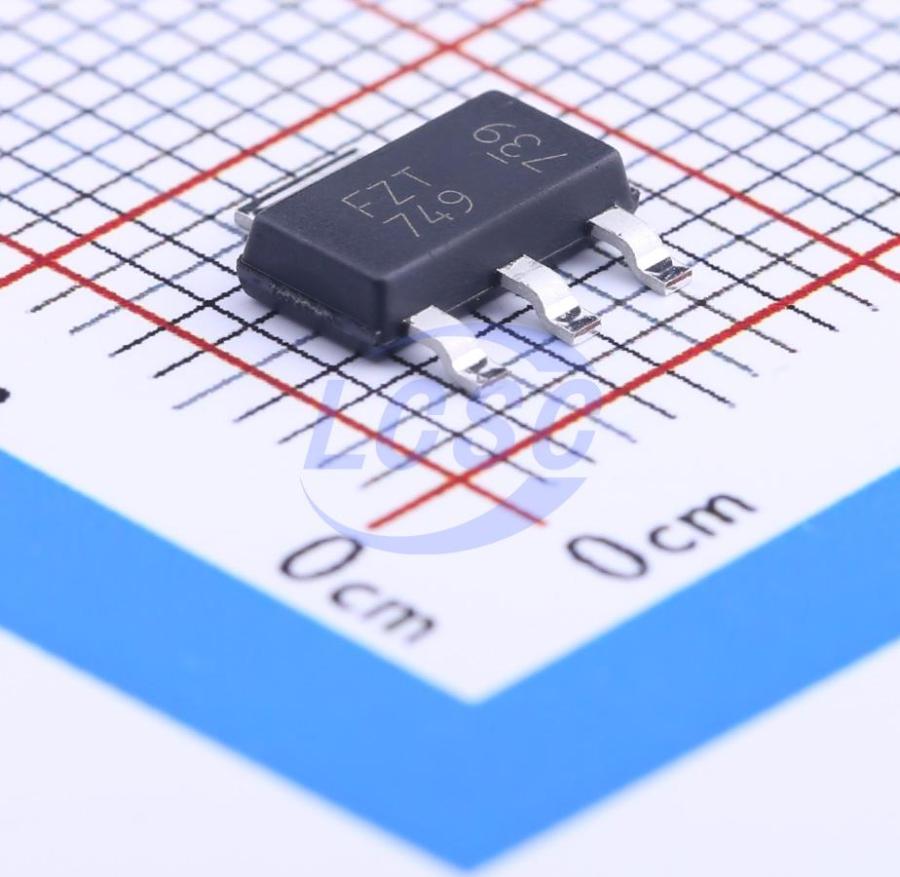

FZT749TA DIODES

FZT749TA

Bipolar (BJT) Transistor PNP 25V 3A 160MHz 3W Surface Mount SOT-223

SOT-223ROHS3 CompliantActive

TRANS PNP 25V 3A SOT-223

Manufacturer: DIODES
Manufacturer part #: FZT749TA
Store part #: C110505
Package / case: SOT-223
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

111 in stock

#C110505

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹64.11	₹64.11
10+	₹50.63	₹506.30
30+	₹44.77	₹1,343.10
100+	₹37.60	₹3,760.00
500+	₹34.35	₹17,175.00
1,000+	₹32.39	₹32,390.00

Quantity (min 1)

1 × ₹64.11

₹64.11

excl. GST

₹75.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

FZT749TA

₹64.11 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 10uA
Transition frequency(fT): 160MHz
Collector - Emitter Voltage VCEO: 25V
Emitter-Base Voltage VEBO: 7V
DC Current Gain: 75
Current - Collector(Ic): 3A
Pd - Power Dissipation: 3W
Configuration: Standalone
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 300mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.232 g

Overview

Applications

MOSFET and IGBT gate driving

Key features

BVCEO > -25V
lc = -3A High Continuous Current
lcM = -8A Peak Pulse Current
Low Saturation Voltage VCE(sat) < -300mV @ -1A
Complementary NPN Type: FZT649
Lead-Free Finish; RoHS Compliant
Halogen and Antimony Free. “Green” Device

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	FZT949#C5245606DIODES · SOT-223	DIODES	SOT-223	6	₹311.37 · 6 in stock	View
	FZT951QTA#C460221DIODES · SOT-223	DIODES	SOT-223	911	₹225.76 · 911 in stock	View
	FZT955TA#C110508DIODES · SOT-223	DIODES	SOT-223	986	₹155.58 · 986 in stock	View
