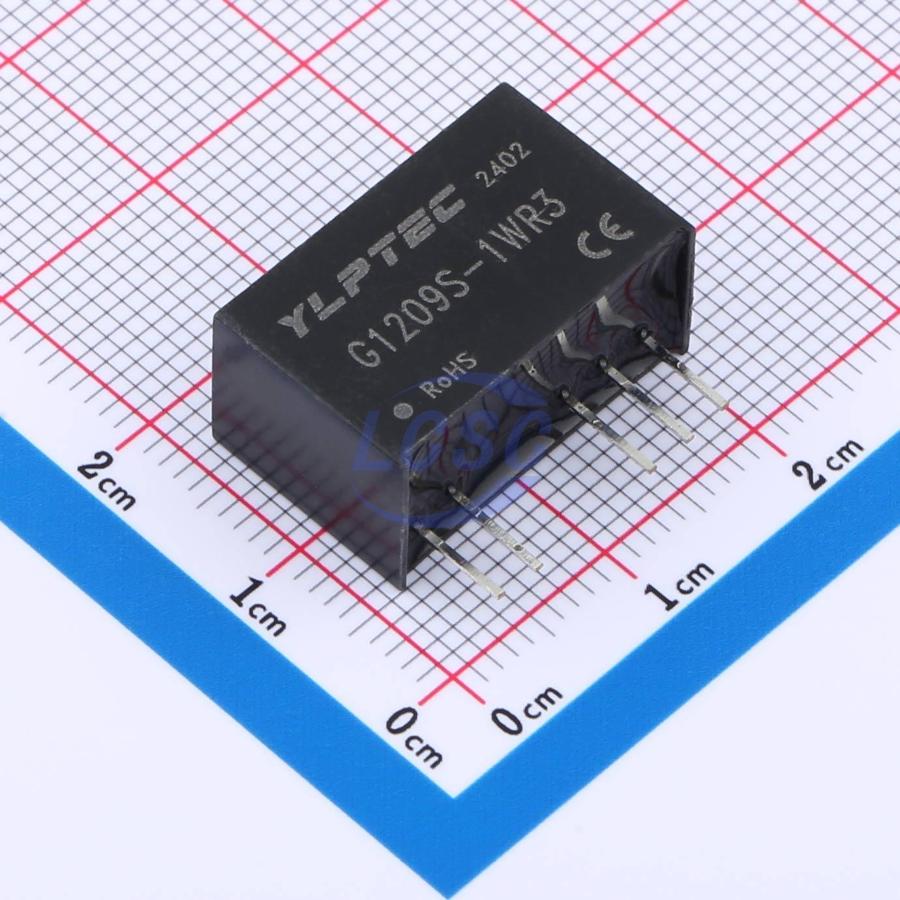

G1209S-1WR3
Isolated Module DC DC Converter Buck 2 Output ±9V ±56mA 10.8V~13.2V Input
1W isolated non-regulated positive and negative dual-output DC/DC module power supply with fixed voltage input
- Manufacturer
- YLPTEC
- Manufacturer part #
- G1209S-1WR3
- Store part #
- C19724255
- Package / case
- SIP,19.5x9.8mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C19724255
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹485.01 | ₹485.01 |
| 10+ | ₹414.65 | ₹4,146.50 |
| 25+ | ₹372.85 | ₹9,321.25 |
| 100+ | ₹330.42 | ₹33,042.00 |
| 500+ | ₹311.09 | ₹1,55,545.00 |
| 1,000+ | ₹302.27 | ₹3,02,270.00 |
1 × ₹485.01
₹485.01
excl. GST
₹572.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
G1209S-1WR3
₹485.01 for 1 + GST
Specifications
- Output Voltage
- ±9V
- Ripple Noise
- 30mVp-p
- Type
- Plastic encapsulated type
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 3mA
- Voltage - Supply
- 10.8V~13.2V
- Capacitive Load(Max)
- 560uF
- Number of Outputs
- 2
- Iout
- 56mA
- Height
- 12.5mm
- Frequency - Switching
- 100kHz
- Isolation Voltage(Vrms)
- 6kV
- Conversion Efficiency
- 89%
- Output Power
- 1W
- Features
- Short Circuit Protection;Automatic fault recovery;Over-temperature protection
- Length
- 19.5mm
- Width
- 9.8mm
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.2 g
Overview
The G_S-1WR3 series is a compact, high-efficiency micro-power DC/DC module with regulated voltage input and isolated unregulated dual positive/negative outputs. This series meets reinforced insulation requirements and is primarily designed for power supply applications demanding small form factor, high isolation, low isolation capacitance, and low leakage current.
Applications
- Medical
- Power
- IGBT drive
- Pure digital circuit applications
- General low-frequency analog circuit applications
- Relay drive circuits
- Data switching circuit applications
Key features
- No-load power consumption: 0.025W (Typ.)
- Efficiency: up to 90%
- Operating temperature: -40°C~+85°C
- MTBF 23.5 million hours (3500000Hrs)
- Fixed voltage input, isolated unregulated dual output, 1W power
- Isolation voltage: 6000VDC
- Output short-circuit protection: continuous short-circuit protection, auto-recovery
- Compact SIP package, plastic enclosure
- International standard pinout
- Ripple/noise (20MHz bandwidth): 30mVp-p (Typ.)
- Over-temperature protection and continuous output short-circuit protection, RoHS
