VBsemi ElecDatasheet (PDF)

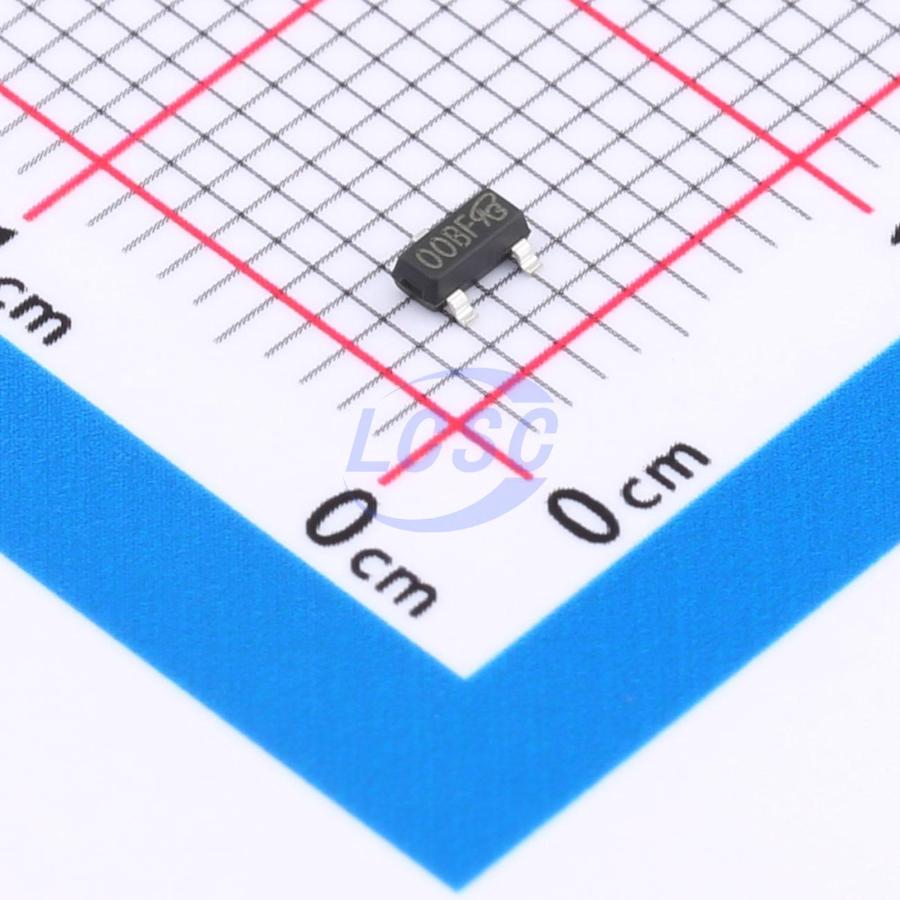

G2308E-VB
N-Channel 20V 6A 1.25W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 20V 6A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- G2308E-VB
- Store part #
- C41370251
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C41370251
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.16 | ₹91.60 |
| 100+ | ₹7.30 | ₹730.00 |
| 300+ | ₹6.38 | ₹1,914.00 |
| 3,000+ | ₹5.68 | ₹17,040.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹9.16
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
G2308E-VB
₹91.60 for 10 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 865pF
- Pd - Power Dissipation
- 1.25W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 50mΩ@1.8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.15 g
Overview
Applications
- DC/DC Converters
- Load Switch for Portable Applications
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- Trench Power MOSFET
- 100 % Rg Tested Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMG3414U-7-VB#C18212474VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 10 | ₹8.82 · 10 in stock | View |
 | NTR4501NT3G-VB#C22389050VBsemi Elec · SOT-23 | VBsemi Elec | SOT-23 | 90 | ₹8.97 · 90 in stock | View |
 | BSH105-VB#C22389088VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 940 | ₹9.82 · 940 in stock | View |
 | WNM2024-3/TR-VB#C22389172VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹8.67 · 100 in stock | View |
 | IRFML8244GTRPBF-VB#C29779582VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹8.67 · 50 in stock | View |
