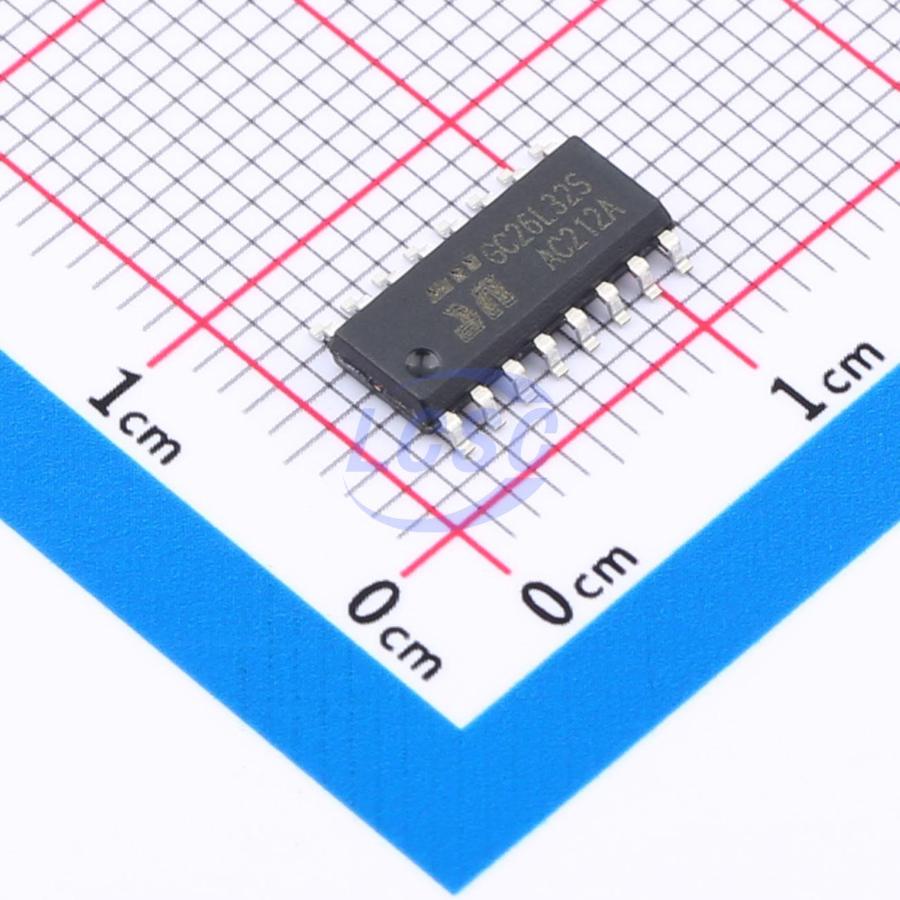

GC26L32S

GC26L32S is a low-voltage 5V quad-channel differential line receiver capable of receiving both differential balanced and unbalanced digital data. The enable control pins support simultaneous control of all four receivers — G is active-high and GN is active-low. With open-circuit inputs, the output is high. GC26L32S is available in SOP16 and TSSOP16 packages. The GC26L32S differential bus receiver is a monolithic IC designed for unidirectional data communication and transmission, compliant with ANSI standard EIA/TIA-422-B and ITU recommendation V.11. It features four tri-state differential line receivers and operates from a single 5V supply. This device allows low-power or low-voltage MCUs to interface with heavy machinery, subsystems, and other equipment over cable runs up to 1000 meters, providing reliable and easy-to-use connectivity for any design.

Applications

• Automotive applications
• Factory automation
• ATM and currency counters
• AC and servo motor drives

Key features

• Meets ANSI TIA/EIA-422-B and ITU V1.0 and V1.11 requirements
• Common-mode input range: ±7V
• Input sensitivity: ±200mV
• Input hysteresis: 50mV
• 5V single supply
• Low-power Schottky circuitry
• Three-state outputs
• Complementary enable input control
• Minimum 12KΩ input impedance
