SUPSiCDatasheet (PDF)

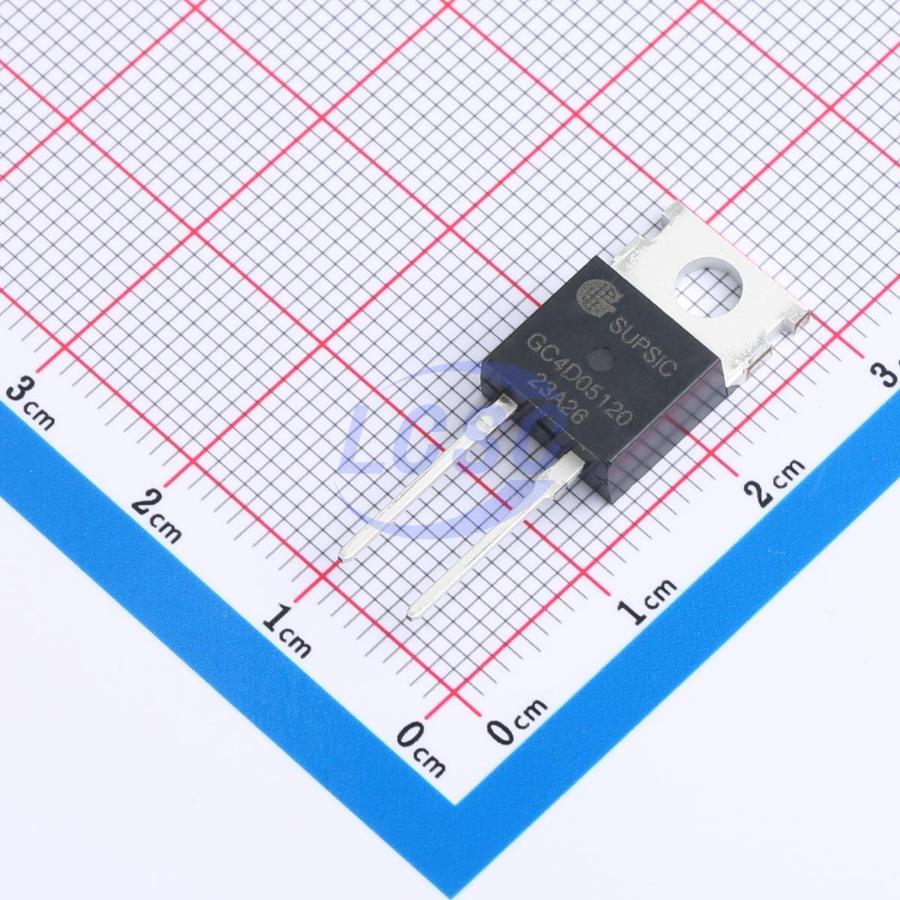

GC4D05120A
SiC Diode Independent 1.2kV 19A Through Hole TO-220-2
TO-220-2RoHSActive
DIODE SIC 1.2kV 19A TO-220-2
- Manufacturer
- SUPSiC
- Manufacturer part #
- GC4D05120A
- Store part #
- C7435074
- Package / case
- TO-220-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
994 in stock
#C7435074
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹118.26 | ₹118.26 |
| 10+ | ₹98.22 | ₹982.20 |
| 50+ | ₹82.11 | ₹4,105.50 |
| 100+ | ₹72.09 | ₹7,209.00 |
| 500+ | ₹66.22 | ₹33,110.00 |
| 1,000+ | ₹63.16 | ₹63,160.00 |
1 × ₹118.26
₹118.26
excl. GST
₹139.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
GC4D05120A
₹118.26 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Voltage - Forward(Vf@If)
- 1.4V@5A
- Reverse Leakage Current (Ir)
- 150uA@1200V
- Non-Repetitive Peak Forward Surge Current
- 46A
- Current - Rectified
- 19A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.956 g
Overview
Applications
- Switched-Mode Power Supply (SMPS)
- Boost diode for Power Factor Correction (PFC) or DC/DC stage
- Freewheeling diode for inverter stage
- AC/DC converter
Key features
- 1.2kV Schottky Rectifier
- Zero reverse recovery current
- High-frequency operation
- Temperature-independent switching characteristics
- Ultra-fast switching speed
- Positive temperature coefficient of forward voltage drop (VF)
- Replaces bipolar rectifiers with unipolar rectifiers
- Virtually no switching losses
- Higher efficiency
- Reduced heatsink requirements
- No thermal runaway in parallel devices
