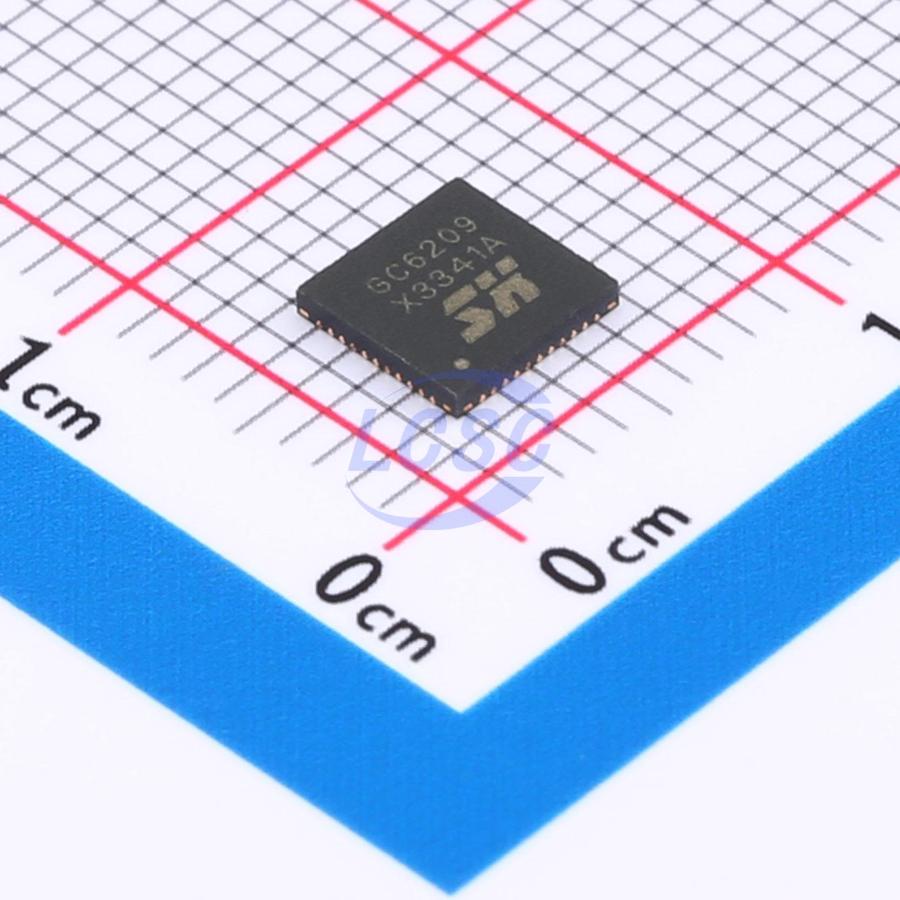

GC6209
QFN-44 Motor Drivers, Controllers RoHS
QFN-44ROHS CompliantActive
Dual Channel STM driver
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC6209
- Store part #
- C16197207
- Package / case
- QFN-44
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,465 in stock
#C16197207
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.21 | ₹86.21 |
| 10+ | ₹76.10 | ₹761.00 |
| 30+ | ₹71.16 | ₹2,134.80 |
| 100+ | ₹66.22 | ₹6,622.00 |
| 500+ | ₹63.21 | ₹31,605.00 |
| 1,000+ | ₹61.49 | ₹61,490.00 |
1 × ₹86.21
₹86.21
excl. GST
₹101.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GC6209
₹86.21 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Motor step-out prevention function;Over temperature protection;Under-voltage lockout
- Technology
- Yes
- Interface
- SPI
- Operating Temperature
- -40℃~+100℃
- Output Current
- 800mA
- Step Resolution
- 256
- Control Voltage
- 2.7V~3.6V
- RDS(on)
- 1.2Ω
- Motor Drive Voltage(Vm)
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.183 g
Overview
GC6209 is a dual-channel 5V low-voltage stepper motor driver featuring low noise and low vibration, making it particularly suitable for camera zoom and focus systems, gimbal stabilizers, and other precision, low-noise stepper motor control systems. The IC integrates a 256-microstep driver per channel. Driver parameters can be easily adjusted via SPI interface.
Applications
- Camera
- Security Camera
- Consumer Products
- Robotics
- Medical Devices
Key features
- Integrated dual stepper motor drivers for zoom and focus control
- 256 microstep drive technology with ultra-low noise characteristics
- Output drive current up to 0.8A
- 2 open-drain outputs for LED driving
- Over-temperature protection
- Under-voltage protection
- QFN44 (05x05) package
