SX-globalchipDatasheet (PDF)
GC6236
QFN-40 Motor Drivers, Controllers RoHS
QFN-40ROHS CompliantActive

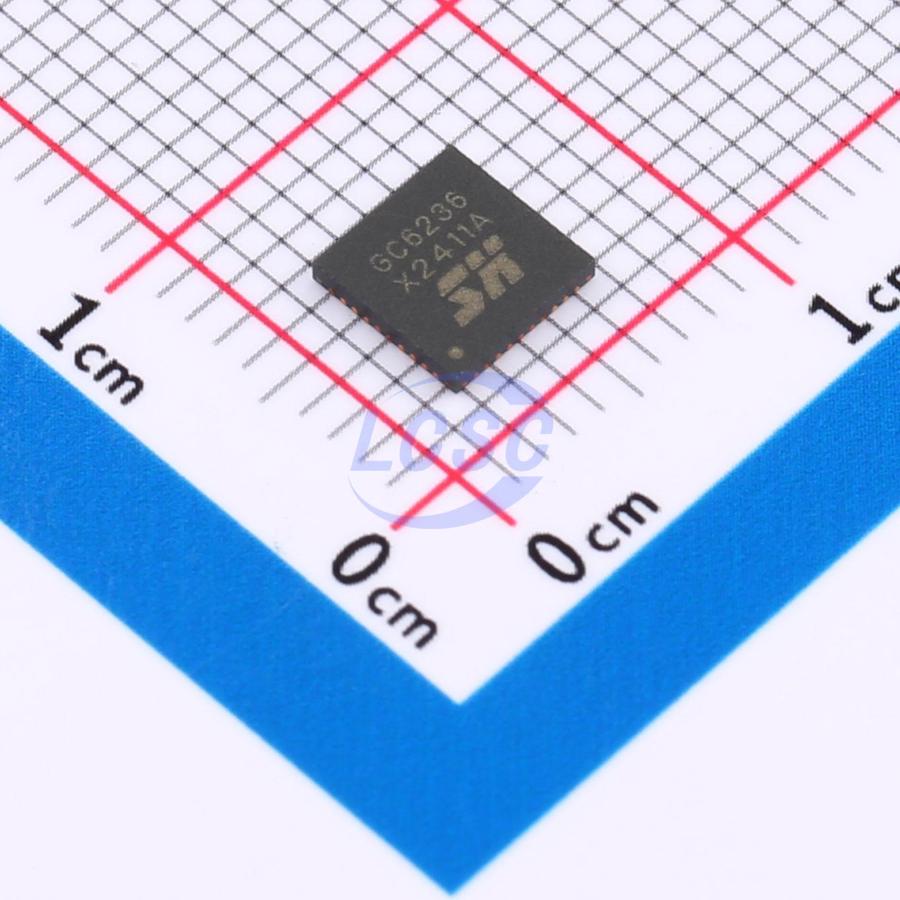

Lens driver for Digital Still Camera
- Manufacturer
- SX-globalchip
- Manufacturer part #
- GC6236
- Store part #
- C16197210
- Package / case
- QFN-40
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,628 in stock
#C16197210
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.43 | ₹136.43 |
| 10+ | ₹122.18 | ₹1,221.80 |
| 30+ | ₹114.43 | ₹3,432.90 |
| 100+ | ₹105.83 | ₹10,583.00 |
| 500+ | ₹101.84 | ₹50,920.00 |
| 1,000+ | ₹99.97 | ₹99,970.00 |
1 × ₹136.43
₹136.43
excl. GST
₹160.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GC6236
₹136.43 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 6
- Features
- Motor step-out prevention function
- Technology
- Yes
- Interface
- SPI
- Operating Temperature
- -40℃~+100℃
- Output Current
- 500mA
- Step Resolution
- 1024
- Control Voltage
- 2.8V~3.6V
- RDS(on)
- 1Ω
- Motor Drive Voltage(Vm)
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
GC6236 is a system lens driver featuring micro-step driving for precise, high-accuracy, and low-noise lens drive system configurations. This IC integrates DC motor and voice coil motor drivers along with a micro-step controller that reduces CPU power consumption, enabling multi-function lens applications.
Applications
- Digital cameras
- Pan-tilt machines
Key features
- Integrated 6-channel H-bridge motor driver
- Channels 1–4: Voltage-controlled H-bridge (for STM 2 systems)
- Channel 5: Voltage/current-controlled H-bridge
- Channel 6: Current-controlled H-bridge
- 0.5A RMS current per channel
- Integrated 2-channel PI driver
- Integrated FLL digital servo circuit
- Integrated PLL circuit for multiple system clocks
- Integrated STM control circuit: autonomous control (buffer/increment-decrement mode), clock input control
