DIODESDatasheet (PDF)

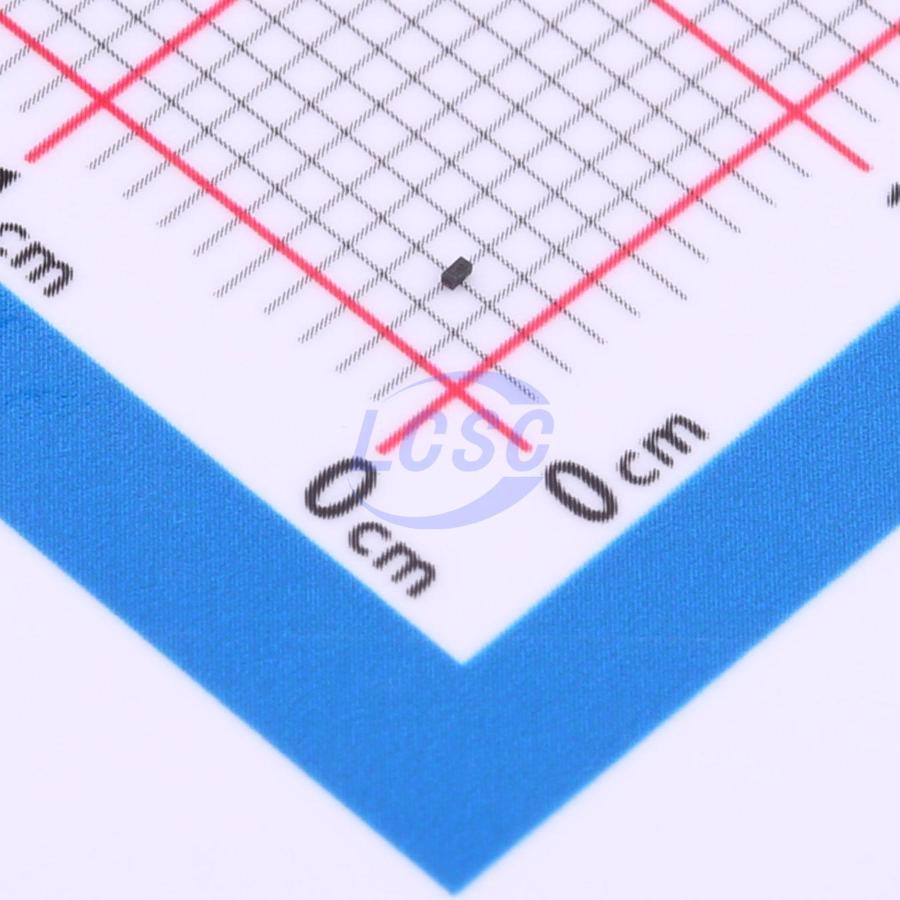

GDZ3V6LP3-7
Zener Diode 3.6V 250mW Surface Mount X3-DFN0603-2
X3-DFN0603-2ROHS3 CompliantActive
DIODE ZENER 3.6V 250mW X3-DFN0603-2
- Manufacturer
- DIODES
- Manufacturer part #
- GDZ3V6LP3-7
- Store part #
- C5157735
- Package / case
- X3-DFN0603-2
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C5157735
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.00 | ₹90.00 |
| 100+ | ₹7.20 | ₹720.00 |
| 300+ | ₹6.30 | ₹1,890.00 |
| 1,000+ | ₹5.62 | ₹5,620.00 |
| 5,000+ | ₹5.08 | ₹25,400.00 |
| 10,000+ | ₹4.82 | ₹48,200.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 10uA@1V
- Zener Voltage(Range)
- 3.41V~3.79V
- Zener Voltage(Nom)
- 3.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.004 g
Overview
Key features
- Ultra-Small Leadless Surface Mount Package (0.6 x 0.3 mm)
- Ultra-Low Profile Package (0.3 mm)
- Ideally Suited for Automated Assembly Processes
- Low Leakage Current, Suitable for Battery-Powered Applications
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free, "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GDZ3V3LP3-7#C5157733DIODES · X3-DFN0603-2 | DIODES | X3-DFN0603-2 | 95 | ₹8.56 · 95 in stock | View |
| NZD3V9MUT5G#C3735551onsemi · X3DFN2(0.3x0.6) | onsemi | X3DFN2(0.3x0.6) | 855 | ₹14.21 · 855 in stock | View | |
 | GDZ3V9LP3-7#C5244924DIODES · X3-DFN0603-2 | DIODES | X3-DFN0603-2 | On request | ₹9.41 · 0 in stock | View |
| NZD3V3MUT5G#C3733391onsemi · X3DFN2(0.3x0.6) | onsemi | X3DFN2(0.3x0.6) | On request | ₹4.84 · 0 in stock | View | |
