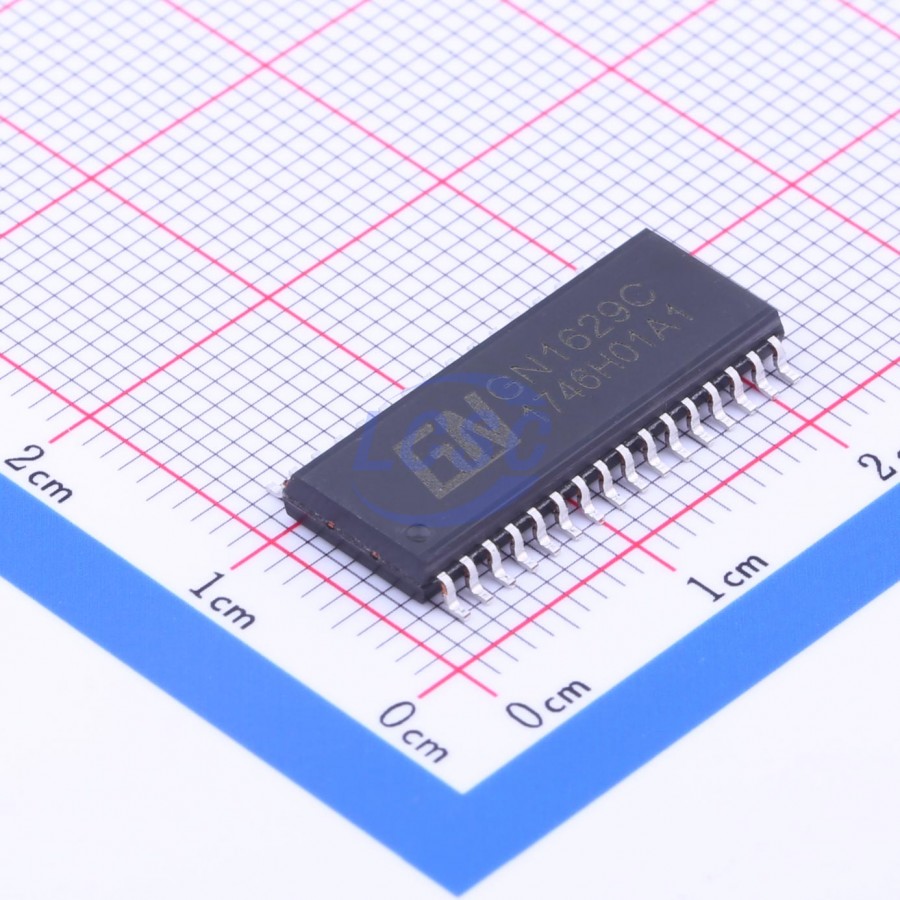

GN Semic

GN1629C

3V~5.5V 1MHz 20mA 80mA SOP-32-300mil Display Drivers

SOP-32-300milRoHSActive

3-line serial interface common cathode 15 seg 8 grid LED controller/driver

Manufacturer: GN Semic
Manufacturer part #: GN1629C
Store part #: C265471
Package / case: SOP-32-300mil
Category: Display Drivers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,805 in stock

#C265471

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹31.37	₹156.85
50+	₹26.05	₹1,302.50
140+	₹23.76	₹3,326.40
500+	₹21.47	₹10,735.00
3,200+	₹19.95	₹63,840.00
4,800+	₹19.04	₹91,392.00

Quantity (min 5, multiples of 5)

5 × ₹31.37

₹156.85

excl. GST

₹185.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 20 per tube

GN1629C

₹156.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3V~5.5V
Configuration: 15 Segment x 8 Digit
Operating Temperature: -20℃~+70℃
Clock Frequency: 1MHz
Pd - Power Dissipation: 400mW
Features: Built-in display RAM;PWM dimming
Segment Drive Current: 20mA
Digit Drive Current: 80mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 20 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.603 g

Overview

GN1629C is a 3-line serial interface common cathode 15 seg 8 grid LED controller/driver. It has keyboard scan ports, MCU digital ports, data latches, LED drivers and other circuits. Used in all kind of LED panels, such as microwave ovens, induction cookers, water heaters and other home appliances.
