VISHAYDatasheet (PDF)
GP10T-E3/54

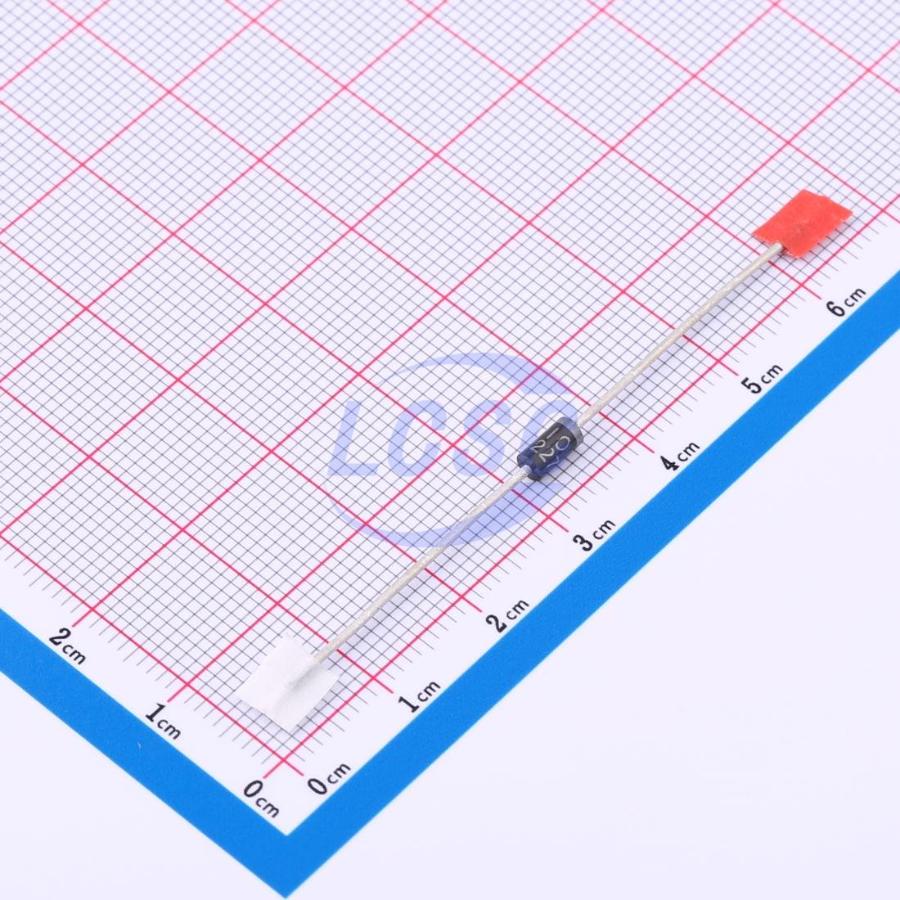

Diode 1.3kV 1A Through Hole DO-204AL(DO-41)
DO-204AL(DO-41)ROHS3 CompliantActive
DIODE STANDARD 1.3kV 1A DO-204AL(DO-41)
- Manufacturer
- VISHAY
- Manufacturer part #
- GP10T-E3/54
- Store part #
- C5358832
- Package / case
- DO-204AL(DO-41)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,220 in stock
#C5358832
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.81 | ₹99.05 |
| 50+ | ₹17.08 | ₹854.00 |
| 150+ | ₹15.92 | ₹2,388.00 |
| 500+ | ₹14.45 | ₹7,225.00 |
| 2,500+ | ₹13.80 | ₹34,500.00 |
| 5,500+ | ₹13.42 | ₹73,810.00 |
5 × ₹19.81
₹99.05
excl. GST
₹116.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,500 per reel
GP10T-E3/54
₹99.05 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1.3kV
- Voltage - Forward(Vf@If)
- 1.3V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.433 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer applications.
Key features
- Superectifier structure for high reliability application
- Cavity-free glass-passivated junction
- Low forward voltage drop
- Low leakage current
- High forward surge capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EM516#C5148434DIOTEC · DO-41 | DIOTEC | DO-41 | 3,530 | ₹12.21 · 3,530 in stock | View |
 | EM520#C424500SUNMATE Elec · DO-41 | SUNMATE Elec | DO-41 | 6,270 | ₹6.50 · 6,270 in stock | View |
 | BY133#C5338389SUNMATE Elec · DO-41 | SUNMATE Elec | DO-41 | 1,820 | ₹5.93 · 1,820 in stock | View |
 | HVR116#C3015368EIC · DO-41 | EIC | DO-41 | 8,848 | ₹4.23 · 8,848 in stock | View |
| GP10T-E3/73#C17609118VISHAY · DO-204AL(DO-41) | VISHAY | DO-204AL(DO-41) | On request | ₹53.89 · 0 in stock | View | |
