Guestgood

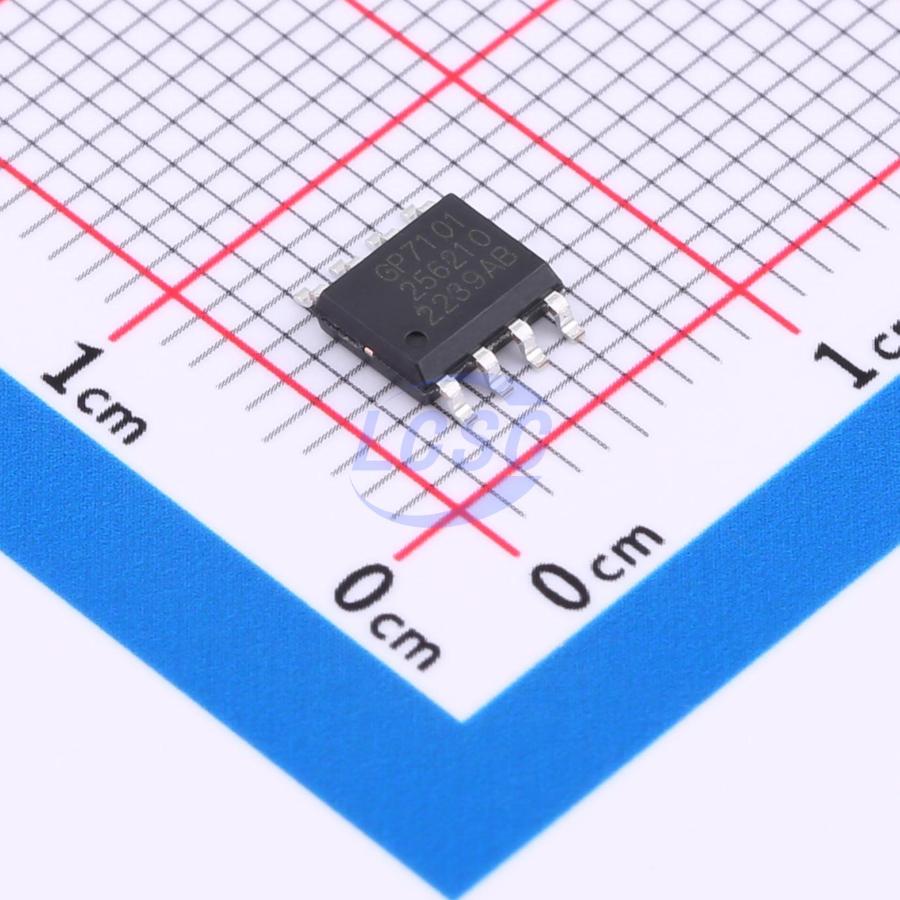

GP7101-F1K-L1H1-SW

SOP-8 Analog to Digital Converters (ADC) RoHS

SOP-8ROHS CompliantActive

Manufacturer: Guestgood
Manufacturer part #: GP7101-F1K-L1H1-SW
Store part #: C7471834
Package / case: SOP-8
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,928 in stock

#C7471834

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹90.61	₹90.61
10+	₹71.93	₹719.30
30+	₹62.37	₹1,871.10
100+	₹53.03	₹5,303.00
500+	₹48.67	₹24,335.00
1,000+	₹45.86	₹45,860.00

Quantity (min 1)

1 × ₹90.61

₹90.61

excl. GST

₹106.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

GP7101-F1K-L1H1-SW

₹90.61 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.106 g

Overview

GP7101 is an I2C-to-PWM signal converter, belonging to the DPC chip family. The device linearly converts data input via the I2C protocol into a PWM signal with a duty cycle range of 0% to 100%, with a duty cycle linearity error of less than 0.5%.

Applications

DC motor speed control
LED smart dimming
Industrial analog signal isolation
Inverters
Power supplies

Key features

Data input via I2C, linearly converted to PWM signal output with 0% to 100% duty cycle
Overvoltage protection
Input data range: 0×00 to 0×FF or 0×0000 to 0×FFFF
Output PWM frequency range: 1 Hz to 100 kHz
Output PWM high-level voltage range: 2.7V to 5.5V
Maximum PWM duty cycle error: less than 1%
PWM duty cycle linearity error: less than 0.5%
Supply voltage range: 2.7 V to 5.5 V
Power consumption: less than 5mA
Start-up time: less than 2ms
Operating temperature range: -40°C to 85°C
