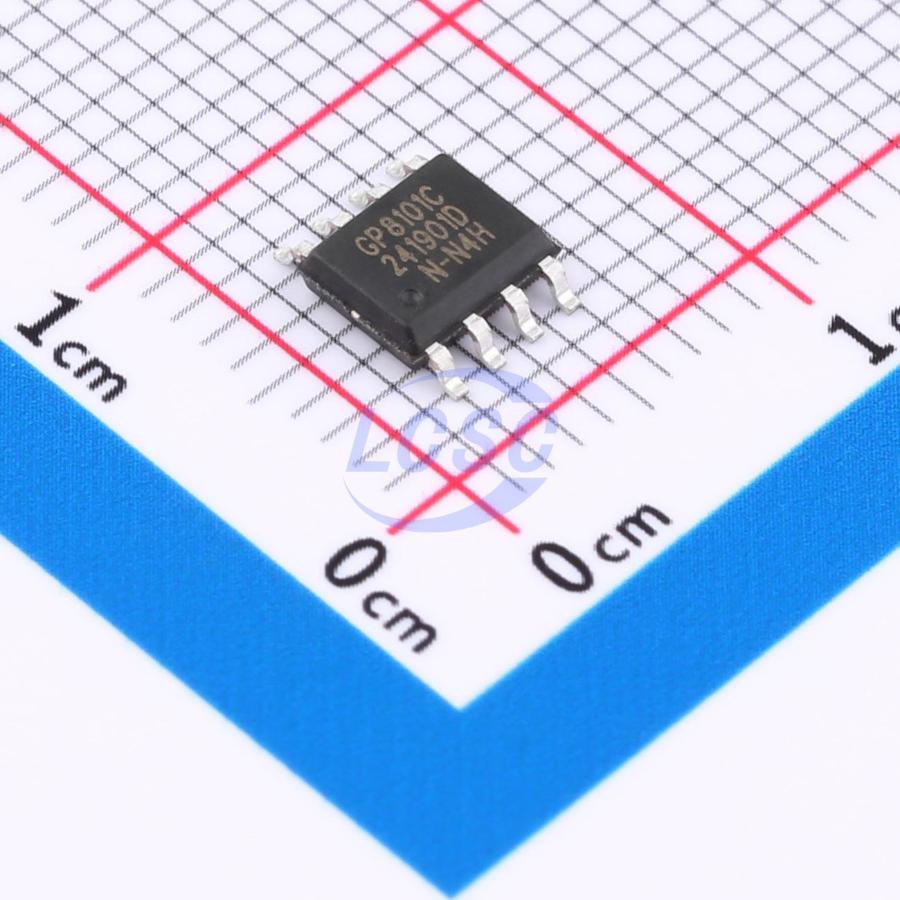

Guestgood

GP8101C-SH

11V~32V SOIC-8 Analog to Digital Converters (ADC)

SOIC-8RoHSActive

Manufacturer: Guestgood
Manufacturer part #: GP8101C-SH
Store part #: C49253868
Package / case: SOIC-8
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,326 in stock

#C49253868

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹89.33	₹89.33
10+	₹71.77	₹717.70
30+	₹62.88	₹1,886.40
100+	₹54.22	₹5,422.00
500+	₹49.00	₹24,500.00
1,000+	₹46.19	₹46,190.00

Quantity (min 1)

1 × ₹89.33

₹89.33

excl. GST

₹105.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

GP8101C-SH

₹89.33 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Features: Built-in reference source
Resolution(Bits): -;50kHz
Quiescent Current (Iq): 1.2mA
Voltage - Supply: 11V~32V
Number of Channels: 1

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.106 g

Overview

GP8101C is a PWM-to-analog signal converter that functions as a DAC with PWM signal input and analog signal output. The device linearly converts a PWM signal with a duty cycle of 0% to 100% into an analog voltage of 0 to 10.05V, with a full-scale output voltage accuracy better than 0.2%.

Applications

Motor speed control
LED dimming
Inverter
Power supply
Industrial analog signal isolation
Variable frequency drive
Servo speed control

Key features

Input signal range: 0% ~ 100%
Input PWM signal frequency range: 50Hz ~ 50kHz
Input PWM signal high level: 2.7V ~ 5.5V
Enable and disable output 0 ~ 10.05V function supported
Built-in high-performance low-drift bandgap reference; typical output temperature coefficient: 20ppm/℃
Full-scale output voltage error: < 0.2%
Output voltage linearity error: 0.1%
Voltage coefficient: < 40ppm/V
Current coefficient: 100ppm/mA
Drive capability: 10mA
Built-in overcurrent protection and undervoltage protection
ESD capability: > 2kV
Supply voltage: 11V ~ 32V
Package: SOIC-8
Power consumption: < 1.5mA
Start-up time: < 2ms
Response period: 3-cycle response
Settling time: < 200µs
Operating temperature: -40°C ~ 125°C
