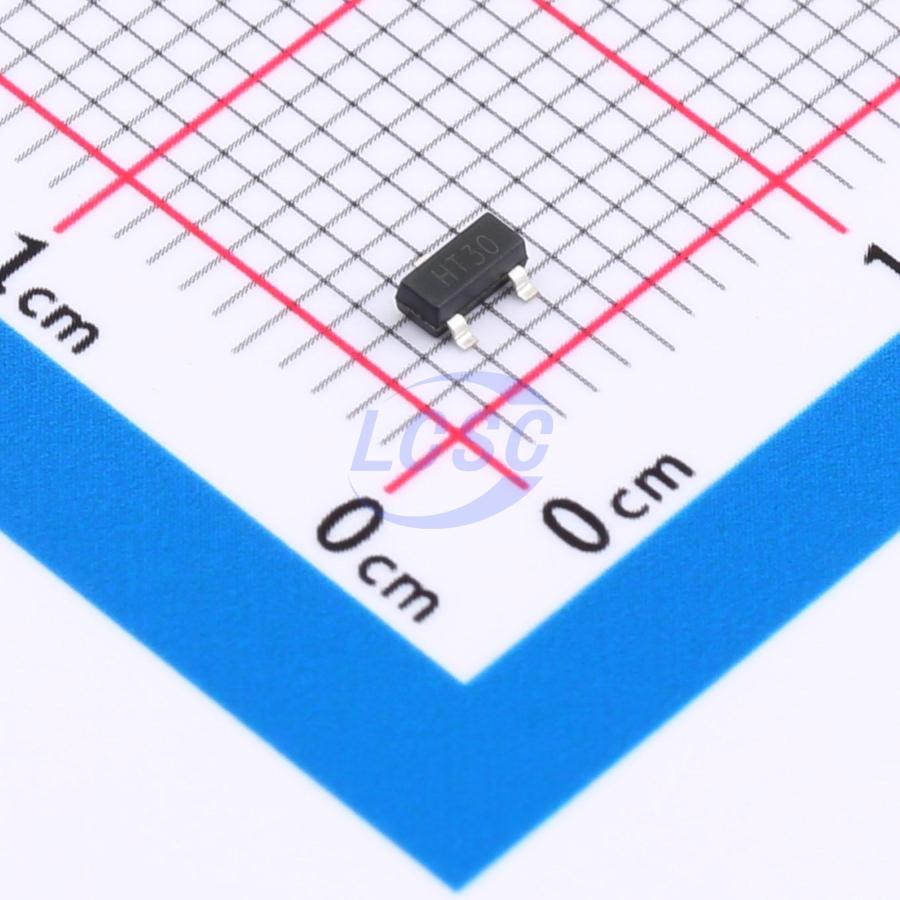

GR7130S
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3RoHSActive
LDO Linear Voltage Regulator
- Manufacturer
- GR
- Manufacturer part #
- GR7130S
- Store part #
- C19631774
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C19631774
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.20 | ₹64.00 |
| 200+ | ₹2.50 | ₹500.00 |
| 600+ | ₹2.12 | ₹1,272.00 |
| 3,000+ | ₹1.89 | ₹5,670.00 |
| 9,000+ | ₹1.68 | ₹15,120.00 |
| 21,000+ | ₹1.57 | ₹32,970.00 |
20 × ₹3.20
₹64.00
excl. GST
₹75.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GR7130S
₹64.00 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 18V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.038 g
Overview
The GR71xx series are low-power, high-voltage regulators fabricated using CMOS technology, supporting a maximum input voltage of 18V with an output voltage range of 2V - 5V. Key features include high-accuracy output voltage, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and power supply equipment
- Various communication devices
- Audio/video equipment
- Security and surveillance equipment
Key features
- Low power consumption: ≤3μA
- Low dropout voltage: 0.1V typical
- Low temperature drift: 50ppm/℃ typical
- High input voltage: up to 18V
- High-accuracy output voltage: ±3% tolerance
- Package: TO-92, SOT89-3, SOT23-3
