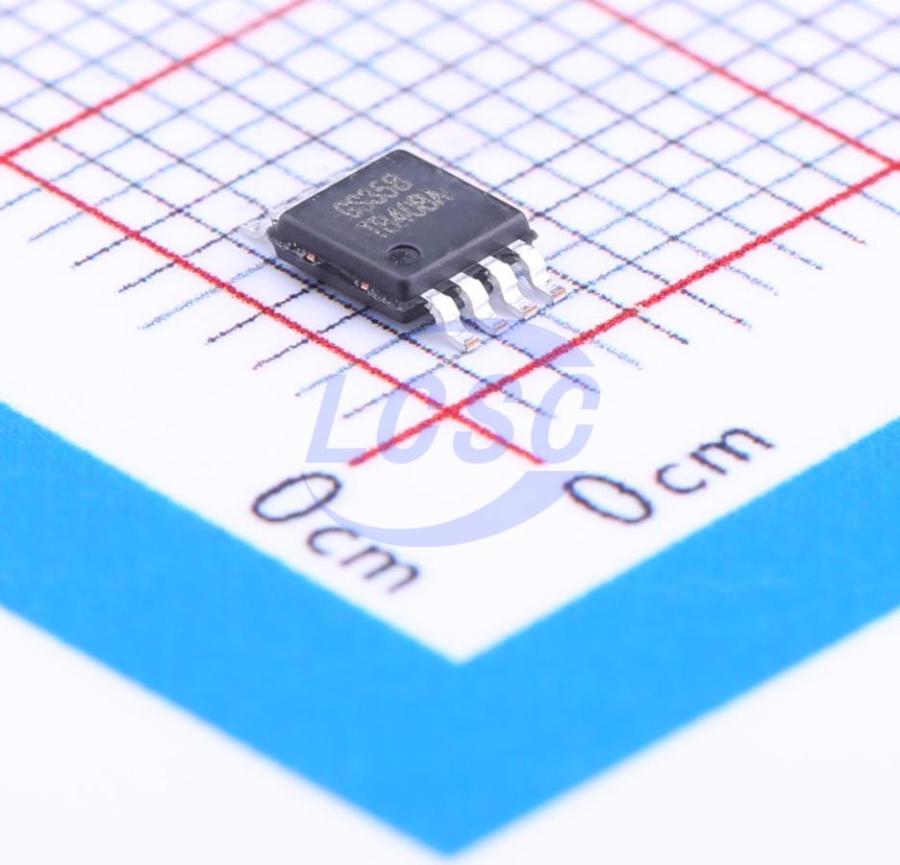

GS358-MR

8mA 2 3.5mV 600V/ms 1pA 70dB 1MHz 40uA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

1MHZ CMOS Rail-to-Rail I/O Opamp with RF Filter

Manufacturer: Gainsil
Manufacturer part #: GS358-MR
Store part #: C157697
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,175 in stock

#C157697

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹24.21	₹121.05
50+	₹19.01	₹950.50
150+	₹16.79	₹2,518.50
500+	₹14.01	₹7,005.00
3,000+	₹12.08	₹36,240.00
6,000+	₹11.34	₹68,040.00

Quantity (min 5, multiples of 5)

5 × ₹24.21

₹121.05

excl. GST

₹142.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

GS358-MR

₹121.05 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 8mA
Number of Channels: 2
Vos - Input Offset Voltage: 3.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 40uA
Features: EMI filtering/RF suppression;Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.087 g

Overview

The GS321/358/324 family have a high gain-bandwidth product of 1MHz, a slew rate of 0.6V/μs, and a quiescent current of 40μA/amplifier at 5v. The GS321/358/324 family is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV for GS321/358/324 family. They are specified over the extended industrial temperature range (-40°C to +125°C). The operating range is from 2.1V to 5.5V. The GS321 single is available in Green SC70-5 and SOT-23-5 packages. The GS358 Dual is available in Green SOP-8, MSOP-8, DIP-8 and DFN-8 packages. The GS324 Quad is available in Green SOP-14 and TSSOP-14 packages.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Medical Communication
Smoke Detectors
Audio Output
Piezoelectric Transducer Amplifier
Medical Instrumentation
Portable Systems

Key features

Single-Supply Operation from +2.1V~+5.5V
Rail-to-Rail Input / Output
Gain-Bandwidth Product: 1MHz (Typ)
Low Input Bias Current: 1pA (Typ)
Low Offset Voltage: 3.5mV (Max)
Quiescent Current: 40μA per Amplifier (Typ)
Operating Temperature: -40°C~+125°C
Embedded RF Anti-EMI Filter
Small Package:
GS321 Available in SOT23-5 and SC70-5 Packages
GS358 Available in SOP-8, MSOP-8, DIP-8 and DFN-8 Packages
GS324 Available in SOP-14 and TSSOP-14 Packages
