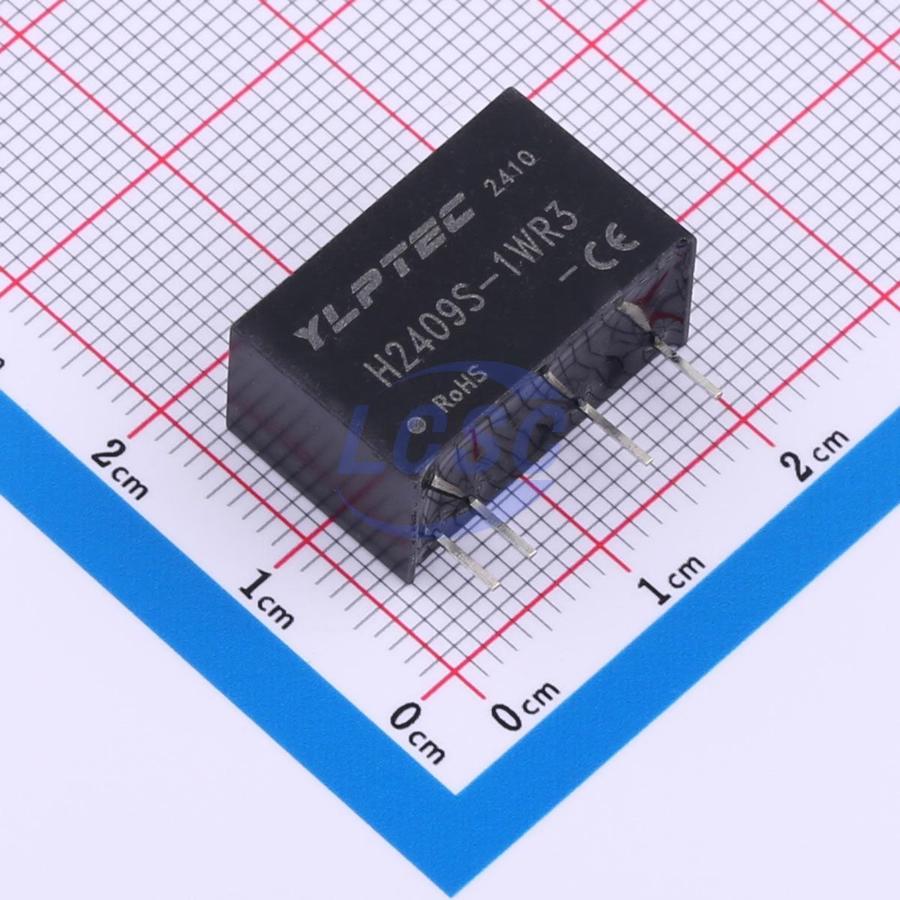

H2409S-1WR3
Isolated Module DC DC Converter Buck 1 Output 9V 111mA 21.6V~26.4V Input
1W isolated non-regulated single-output DC/DC power module with constant voltage input
- Manufacturer
- YLPTEC
- Manufacturer part #
- H2409S-1WR3
- Store part #
- C19724272
- Package / case
- SIP,19.5x9.8mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C19724272
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹450.34 | ₹450.34 |
| 10+ | ₹386.37 | ₹3,863.70 |
| 25+ | ₹348.43 | ₹8,710.75 |
| 100+ | ₹310.05 | ₹31,005.00 |
| 500+ | ₹292.28 | ₹1,46,140.00 |
| 1,000+ | ₹284.25 | ₹2,84,250.00 |
1 × ₹450.34
₹450.34
excl. GST
₹531.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
H2409S-1WR3
₹450.34 for 1 + GST
Specifications
- Output Voltage
- 9V
- Ripple Noise
- 30mVp-p
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 1mA
- Voltage - Supply
- 21.6V~26.4V
- Capacitive Load(Max)
- 1000uF
- Number of Outputs
- 1
- Iout
- 111mA
- Height
- 12mm
- Frequency - Switching
- 100kHz
- Isolation Voltage(Vrms)
- 6kV
- Output Power
- 1W
- Features
- Short Circuit Protection;Automatic fault recovery;Over-temperature protection
- Conversion Efficiency
- 80%
- Length
- 19.5mm
- Width
- 9.8mm
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.2 g
Overview
1W, fixed voltage input, isolated unregulated, single output, DC/DC power module. This series is specifically designed for applications in on-board power systems that require generating a voltage isolated from the input power supply.
Applications
- Pure digital circuit applications
- General low-frequency analog circuit applications
- Relay driver circuits
- Data switching circuit applications
Key features
- Regulated voltage input, isolated unregulated output, 1W power
- Isolation voltage: 6000VDC
- Low no-load power consumption: 0.025W (Typ.)
- Efficiency: up to 90%
- Operating temperature: -40°C~+85°C
- MTBF ≥ 3,500,000Hrs
- Output short-circuit protection: continuous short-circuit protection, auto-recovery
- Compact SIP package, plastic housing
- International standard pinout
- Ripple/Noise (20MHz bandwidth): 30mVp-p (Typ.)
- Over-temperature protection and continuous output short-circuit protection
- RoHS
