R+ODatasheet (PDF)

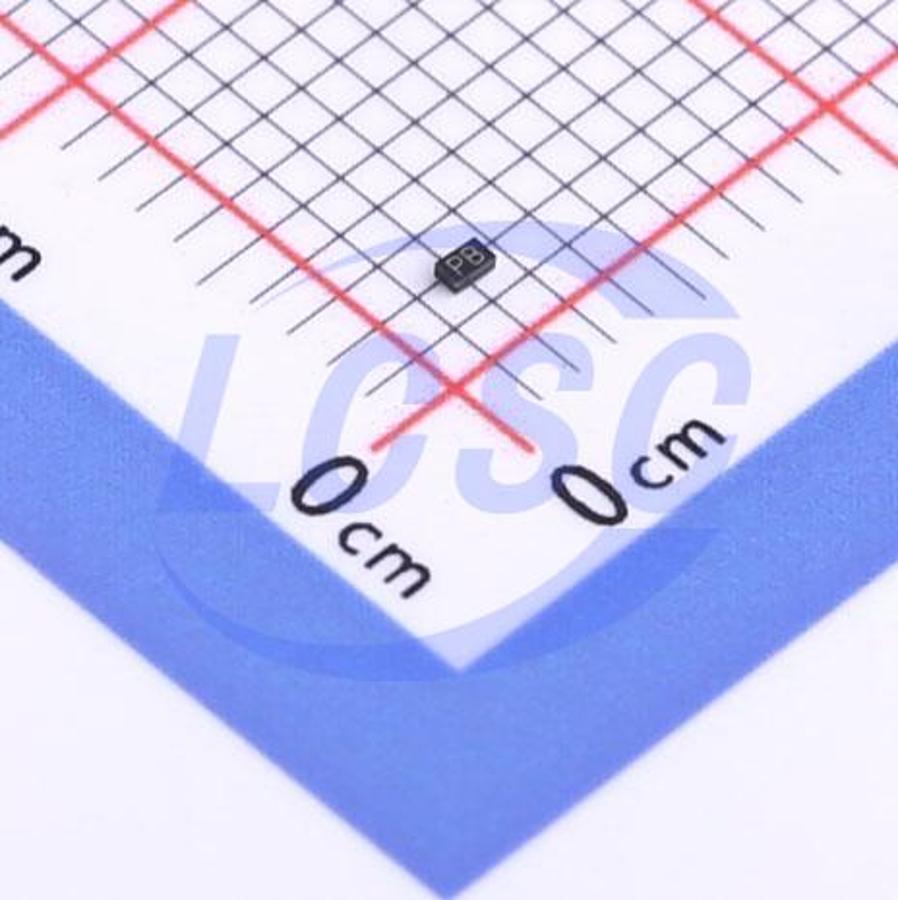

H5VL10B
10VC Clamp 5A Ipp ESD DIODE DFN1006-2L
DFN1006-2LROHS CompliantActive
ESD DIODE 5VWM 10VC DFN1006-2L
- Manufacturer
- R+O
- Manufacturer part #
- H5VL10B
- Store part #
- C7420372
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,01,91,450 in stock
#C7420372
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹0.860 | ₹43.00 |
| 500+ | ₹0.7144 | ₹357.20 |
| 1,500+ | ₹0.6483 | ₹972.45 |
| 10,000+ | ₹0.5027 | ₹5,027.00 |
| 20,000+ | ₹0.4763 | ₹9,526.00 |
| 50,000+ | ₹0.4631 | ₹23,155.00 |
50 × ₹0.860
₹43.00
excl. GST
₹50.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
H5VL10B
₹43.00 for 50 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 5A
- Peak Pulse Power Dissipation (Ppp)
- 50W
- Number of Channels
- 1
- Voltage - Breakdown
- 5.6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.04 g
Overview
Applications
- Mobile phones & accessories
- Laptops & handheld devices
- Personal digital assistants
- Keyboards, side keys, LCD displays
- Audio players, peripherals
- Portable instruments
Key features
- Low leakage current
- Low clamping voltage
- IEC 61000-4-2 (ESD air discharge): ±25kV
- IEC 61000-4-2 (ESD contact discharge): ±25kV
- IEC 61000-4-5 (Lightning surge 8/20 µs): 5A
