HXY MOSFETDatasheet (PDF)

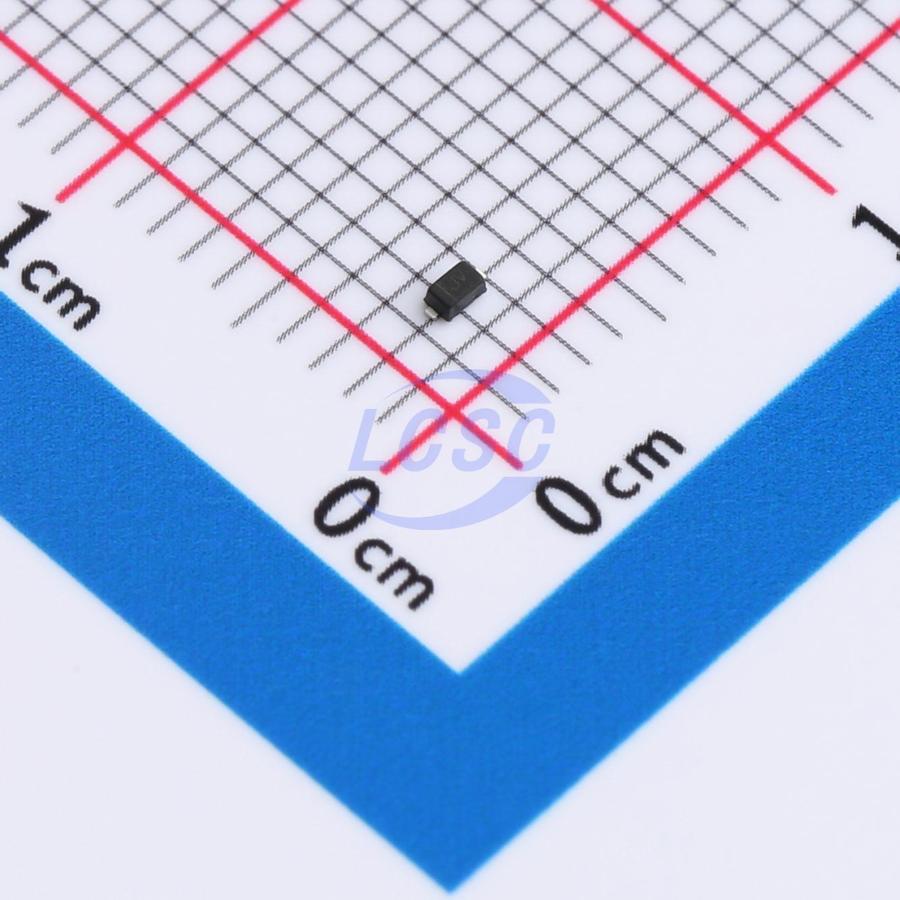

HBAT54XV2T1G
Diode Independent 30V 200mA Surface Mount SOD-523
SOD-523RoHSActive
DIODE SCHOTTKY 30V SOD-523
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HBAT54XV2T1G
- Store part #
- C22396422
- Package / case
- SOD-523
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C22396422
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.75 | ₹55.00 |
| 200+ | ₹2.14 | ₹428.00 |
| 600+ | ₹1.81 | ₹1,086.00 |
| 3,000+ | ₹1.60 | ₹4,800.00 |
| 9,000+ | ₹1.43 | ₹12,870.00 |
| 21,000+ | ₹1.34 | ₹28,140.00 |
20 × ₹2.75
₹55.00
excl. GST
₹64.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HBAT54XV2T1G
₹55.00 for 20 + GST
Specifications
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Pd - Power Dissipation
- 200mW
- Voltage - Forward(Vf@If)
- 400mV
- Reverse Leakage Current (Ir)
- 2uA@25V
- Non-Repetitive Peak Forward Surge Current
- 600mA
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.027 g
Overview
Key features
- Ultra-fast switching speed
- Low forward voltage
- Lead-free package available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HRB521S30TE61#C42389392HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | 60 | ₹3.02 · 60 in stock | View |
 | RB521S-30#C5766556HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | On request | ₹2.08 · 0 in stock | View |
 | HRB520S30FJTE61#C42389393HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | 2,850 | ₹2.13 · 2,850 in stock | View |
 | RB520S-30#C5766554HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | 2,600 | ₹1.60 · 2,600 in stock | View |
 | 1N5819WT#C5451630HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | 2,13,950 | ₹1.65 · 2,13,950 in stock | View |
