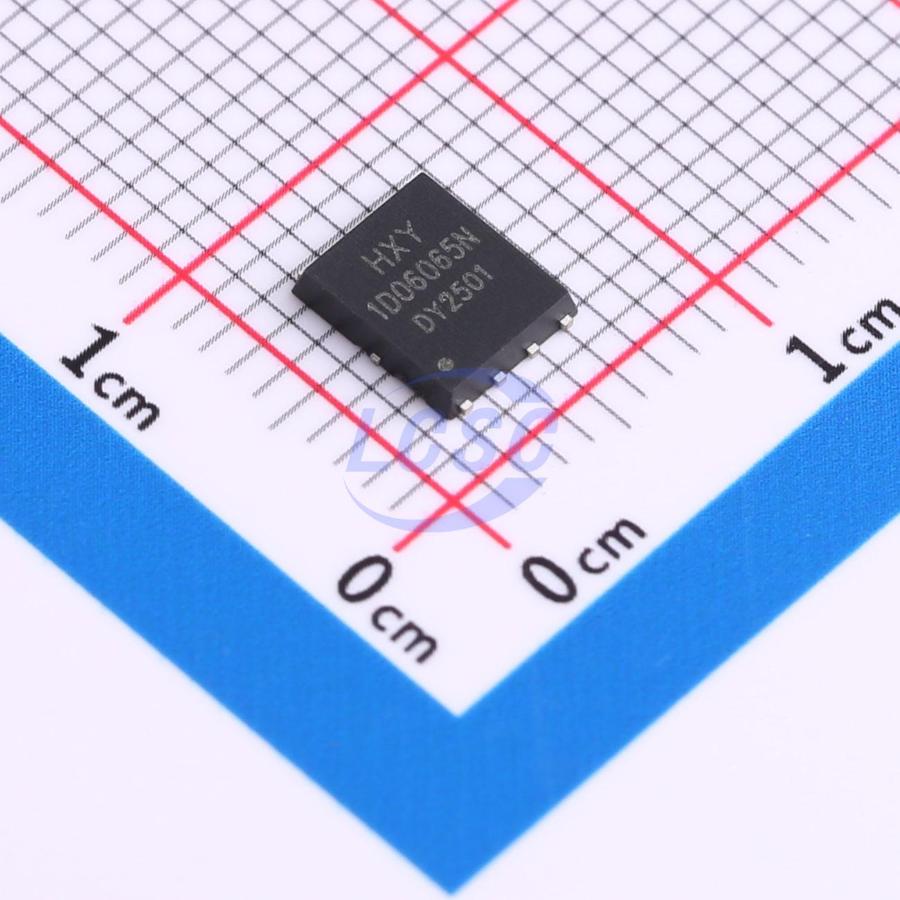

HXY MOSFETDatasheet (PDF)
HC1D06065N
SiC Diode 650V 23A Surface Mount QPFN-8(5x6)
QPFN-8(5x6)RoHSActive
DIODE SIC 650V 23A QPFN-8(5x6)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HC1D06065N
- Store part #
- C41428799
- Package / case
- QPFN-8(5x6)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,270 in stock
#C41428799
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.73 | ₹117.73 |
| 10+ | ₹95.06 | ₹950.60 |
| 30+ | ₹83.72 | ₹2,511.60 |
| 100+ | ₹72.61 | ₹7,261.00 |
| 500+ | ₹64.31 | ₹32,155.00 |
| 1,000+ | ₹60.83 | ₹60,830.00 |
1 × ₹117.73
₹117.73
excl. GST
₹138.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
HC1D06065N
₹117.73 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.3V@6A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Non-Repetitive Peak Forward Surge Current
- 48A
- Current - Rectified
- 23A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.148 g
Overview
This product series delivers state-of-the-art performance. It is designed for high-frequency applications requiring high efficiency and reliability.
Applications
- Uninterruptible power supplies
- Power inverters
- High-performance switching power supplies
- Power factor correction
Key features
- Low conduction loss due to low VF
- Ultra-low switching loss due to minimal QC
- High durability with superior surge current capability
- Industrial-standard quality and reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HC1D08065N#C41428798HXY MOSFET · QPFN-8(5x6) | HXY MOSFET | QPFN-8(5x6) | 164 | ₹501.71 · 164 in stock | View |
