HXY MOSFETDatasheet (PDF)

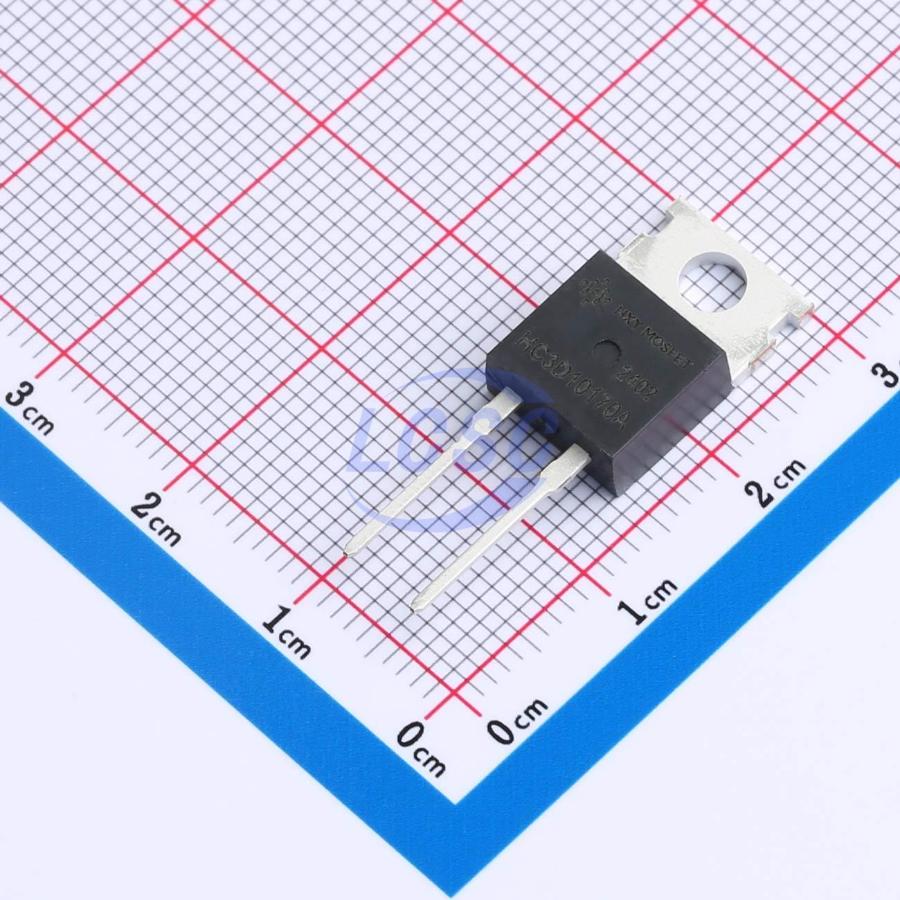

HC3D10170A
SiC Diode Independent 1700V 14.4A Through Hole TO-220-2L
TO-220-2LRoHSActive
DIODE SIC 1700V 14.4A TO-220-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HC3D10170A
- Store part #
- C19723879
- Package / case
- TO-220-2L
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C19723879
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹591.04 | ₹591.04 |
| 10+ | ₹505.40 | ₹5,054.00 |
| 50+ | ₹454.45 | ₹22,722.50 |
| 100+ | ₹402.85 | ₹40,285.00 |
| 500+ | ₹379.00 | ₹1,89,500.00 |
| 1,000+ | ₹368.38 | ₹3,68,380.00 |
1 × ₹591.04
₹591.04
excl. GST
₹697.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HC3D10170A
₹591.04 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 1.7kV
- Voltage - Forward(Vf@If)
- 2V@10A
- Reverse Leakage Current (Ir)
- 60uA@1700V
- Current - Rectified
- 14.4A
- Non-Repetitive Peak Forward Surge Current
- 55A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3 g
Overview
Key features
- 1700V Schottky rectifier
- Zero reverse recovery current
- Zero forward recovery voltage
- High-frequency operation
- Temperature-independent switching behavior
- Extremely fast switching speed
- Halogen-free; RoHS compliant
