HXY MOSFETDatasheet (PDF)

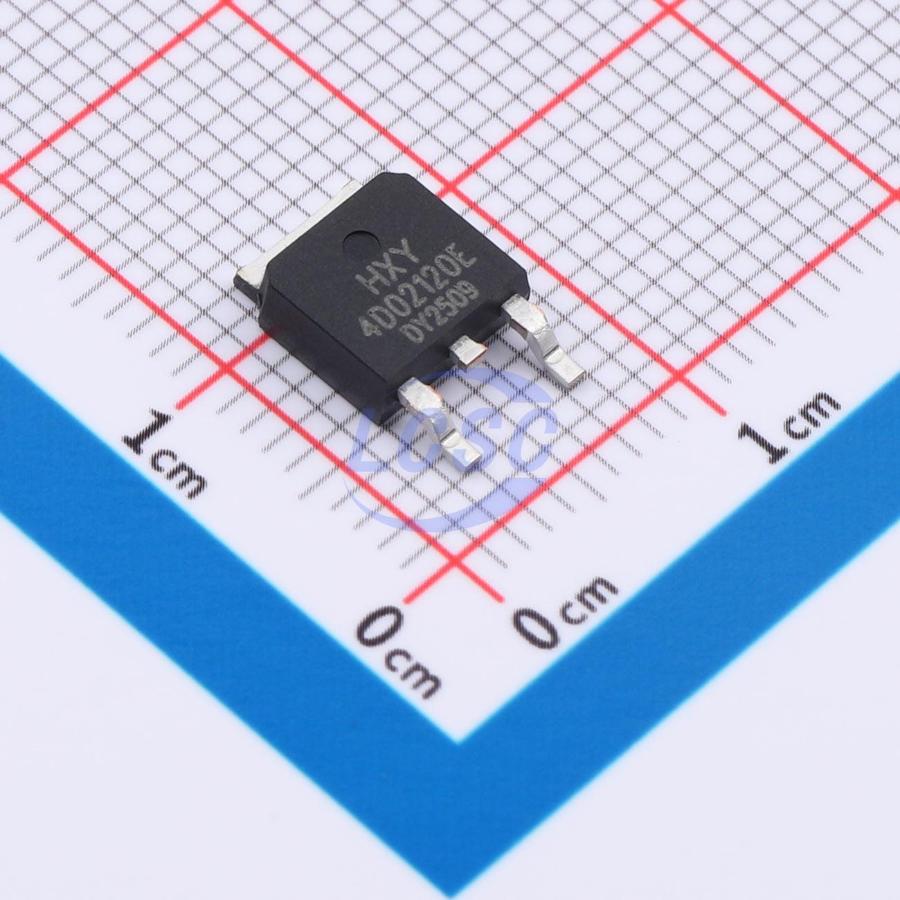

HC4D02120E
SiC Diode 1200V 10A Surface Mount TO-252-2L(DPAK)
TO-252-2L(DPAK)RoHSActive
DIODE SIC 1.2kV 10A TO-252-2L(DPAK)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HC4D02120E
- Store part #
- C42389274
- Package / case
- TO-252-2L(DPAK)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
123 in stock
#C42389274
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹234.04 | ₹234.04 |
| 10+ | ₹198.19 | ₹1,981.90 |
| 30+ | ₹175.59 | ₹5,267.70 |
| 100+ | ₹152.56 | ₹15,256.00 |
| 500+ | ₹142.12 | ₹71,060.00 |
| 1,000+ | ₹137.55 | ₹1,37,550.00 |
1 × ₹234.04
₹234.04
excl. GST
₹276.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HC4D02120E
₹234.04 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Voltage - Forward(Vf@If)
- 1.75V@2A
- Reverse Leakage Current (Ir)
- 2uA@1200V
- Non-Repetitive Peak Forward Surge Current
- 24A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
Applications
- Uninterruptible power supply
- Power inverters
- High-performance switch-mode power supplies
- Power factor correction
Key features
- Low conduction loss due to low V<sub>F</sub>
- Ultra-low switching loss via minimal Q<sub>C</sub>
- High robustness due to superior surge current capability
- Industry-standard quality and reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HIDM02G120C5#C42389291HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 1 | ₹177.36 · 1 in stock | View |
 | HC3D02120E#C22449566HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 96 | ₹241.54 · 96 in stock | View |
 | HC4D10120E#C42389275HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 379 | ₹400.90 · 379 in stock | View |
 | FFSD08120A-HXY#C51896367HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 178 | ₹484.80 · 178 in stock | View |
 | HC4D05120E#C42389273HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 47 | ₹243.88 · 47 in stock | View |
