HXY MOSFETDatasheet (PDF)

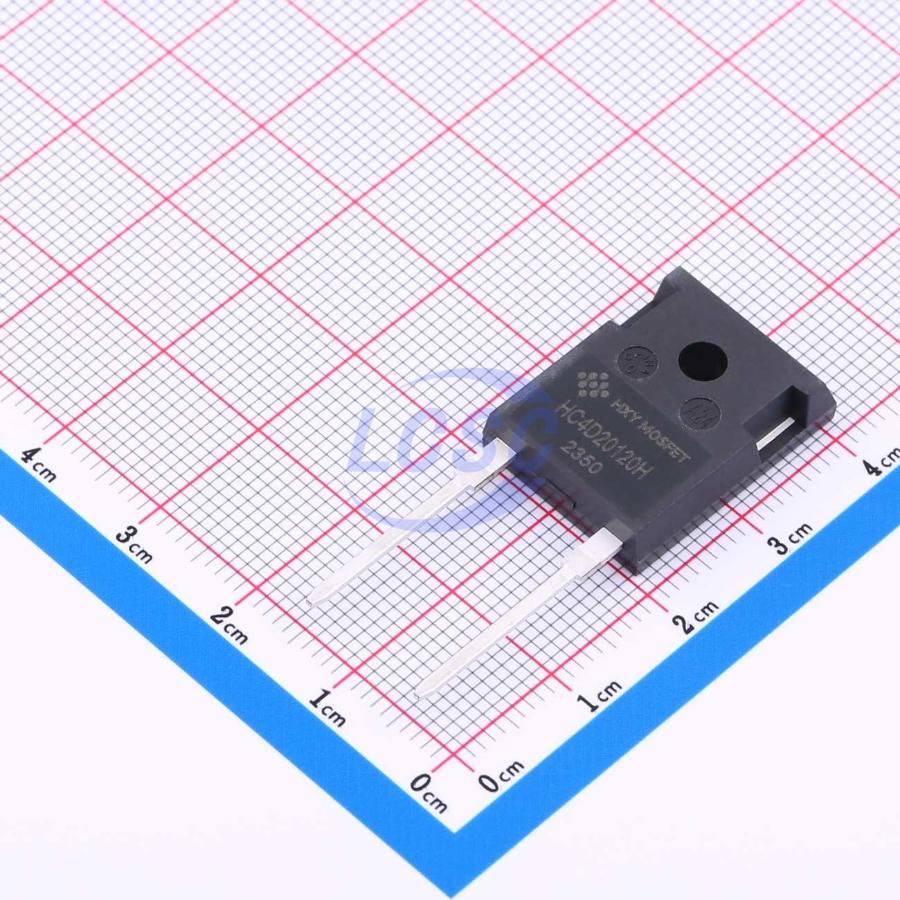

HC4D20120H
SiC Diode Independent 1.2kV Through Hole TO-247-2L
TO-247-2LRoHSActive
DIODE SIC 1.2kV TO-247-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HC4D20120H
- Store part #
- C19723889
- Package / case
- TO-247-2L
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C19723889
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹354.86 | ₹354.86 |
| 10+ | ₹301.18 | ₹3,011.80 |
| 30+ | ₹262.06 | ₹7,861.80 |
| 90+ | ₹227.73 | ₹20,495.70 |
| 510+ | ₹212.09 | ₹1,08,165.90 |
| 990+ | ₹205.36 | ₹2,03,306.40 |
1 × ₹354.86
₹354.86
excl. GST
₹418.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
HC4D20120H
₹354.86 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.5V@20A
- Reverse Leakage Current (Ir)
- 200uA@1200V
- Current - Rectified
- 54A
- Non-Repetitive Peak Forward Surge Current
- 130A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.867 g
Overview
Applications
- Switching power supplies
- Boost diode in power factor correction or DC/DC conversion stages
- Freewheeling diode in inverter stages
Key features
- 1.2kV Schottky Rectifier
- Zero reverse recovery current
- High-frequency operation
- Temperature-independent switching characteristics
- Extremely fast switching speed
- Positive temperature coefficient of VF
- Increased creepage/clearance distance
