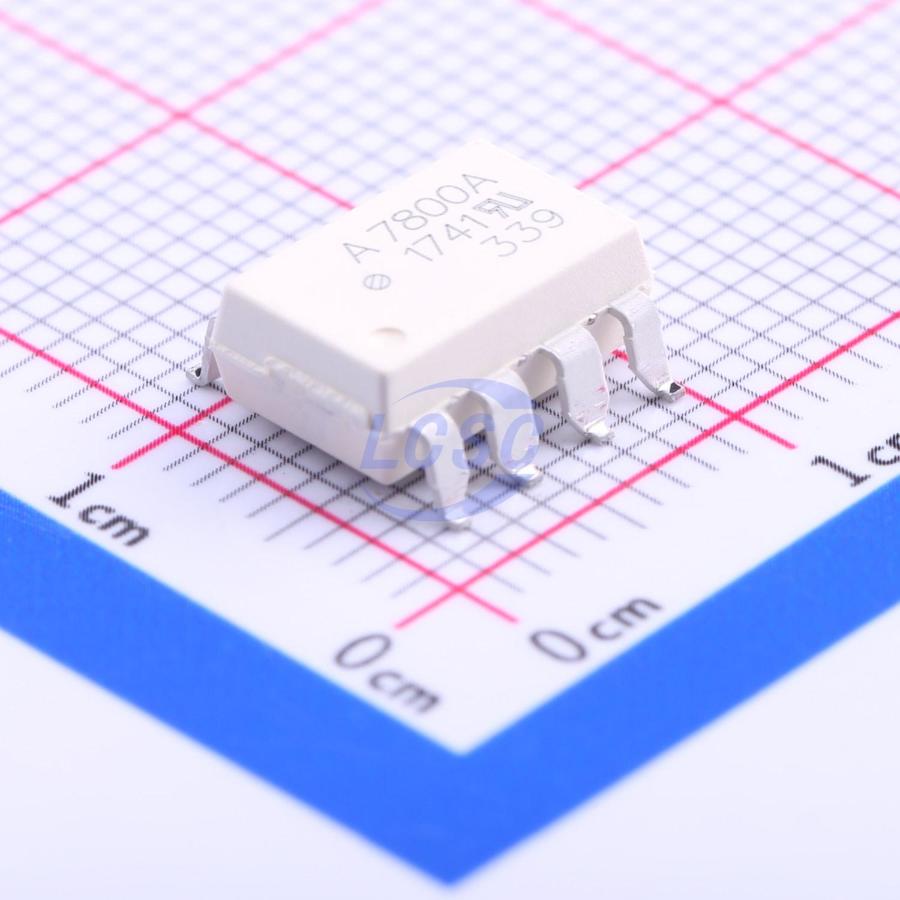

HCPL-7800A-500E

The HCPL-7800(A) isolation amplifier family was designed for current sensing in electronic motor drives. In a typical implementation, motor currents flow through an external resistor and the resulting analog voltage drop is sensed by the HCPL-7800(A). A differential output voltage is created on the other side of the HCPL-7800(A) optical isolation barrier. This differential output voltage is proportional to the motor current and can be converted to a single-ended signal by using an op-amp as shown in the recommended application circuit. Since common - mode voltage swings of several hundred volts in tens of nanoseconds are common in modern switching inverter motor drives, the HCPL-7800(A) was designed to ignore very high common - mode transient slew rates (of at least 10 kV/μs).

Applications

• Motor Phase and Rail Current Sensing
• Inverter Current Sensing
• Switched Mode Power Supply Signal Isolation
• General Purpose Current Sensing and Monitoring
• General Purpose Analog Signal Isolation

Key features

• 15 kV/μs Common - Mode Rejection at VCM = 1000 V
• Compact, Auto - Insertable Standard 8 - pin DIP Package
• 0.00025 V/V/°C Gain Drift vs. Temperature
• 0.3 mV Input Offset Voltage
• 100 kHz Bandwidth
• 0.004% Nonlinearity
• Worldwide Safety Approval: UL 1577 (3750 Vrms/1 min.) and CSA, IEC/EN/DIN EN 60747 - 5 - 2
• Advanced Sigma - Delta (Σ−∆) A/D Converter Technology
• Fully Differential Circuit Topology
