HXY MOSFETDatasheet (PDF)

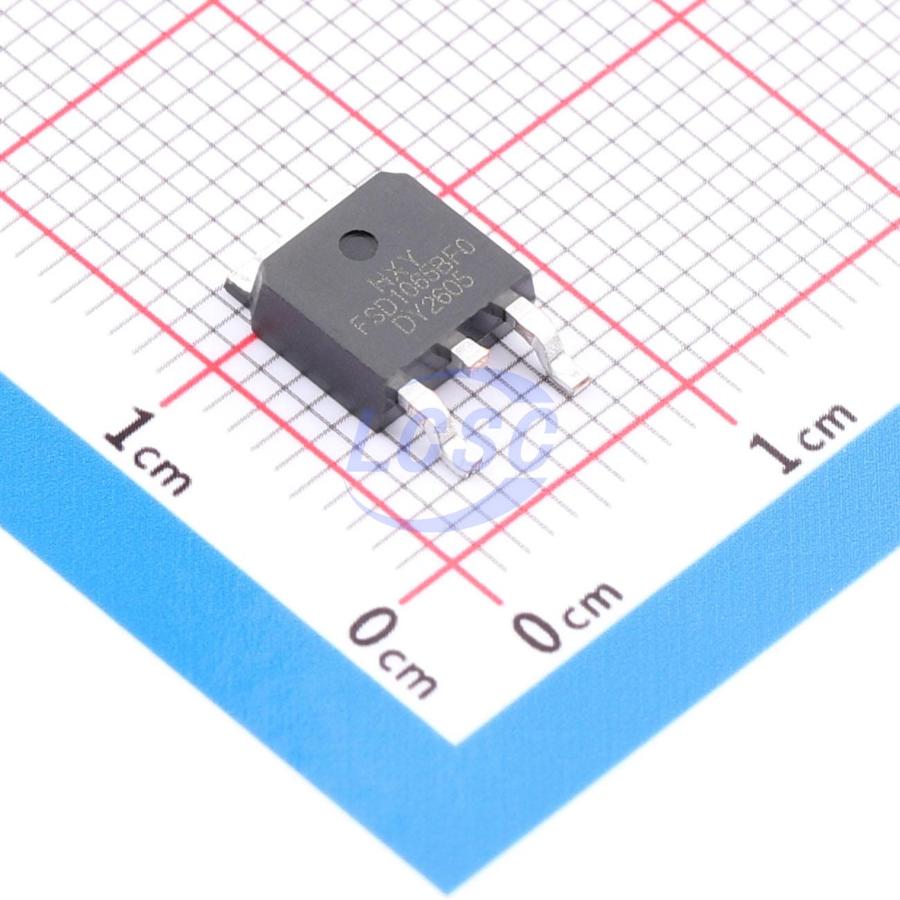

HFFSD1065BF085
SiC Diode 650V 30A Surface Mount TO-252-2L(DPAK)
TO-252-2L(DPAK)RoHSActive
DIODE SIC 650V 30A TO-252-2L(DPAK)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HFFSD1065BF085
- Store part #
- C42389212
- Package / case
- TO-252-2L(DPAK)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
206 in stock
#C42389212
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹264.73 | ₹264.73 |
| 10+ | ₹224.41 | ₹2,244.10 |
| 30+ | ₹199.05 | ₹5,971.50 |
| 100+ | ₹171.08 | ₹17,108.00 |
| 500+ | ₹159.58 | ₹79,790.00 |
| 1,000+ | ₹154.38 | ₹1,54,380.00 |
1 × ₹264.73
₹264.73
excl. GST
₹312.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HFFSD1065BF085
₹264.73 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.5V@10A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.428 g
Overview
Applications
- Uninterruptible power supplies
- Power inverters
- High-performance switching power supplies
- Power factor correction
Key features
- Low conduction loss due to low VF
- Ultra-low switching loss via miniature QC
- High robustness due to improved surge current capability
- Industrial-standard quality and reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSTPSC10H065BTR#C42389259HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 3 | ₹393.57 · 3 in stock | View |
 | HSTPSC10H065BYTR#C42389308HXY MOSFET · TO-252-2L(DPAK) | HXY MOSFET | TO-252-2L(DPAK) | 3 | ₹297.44 · 3 in stock | View |
 | S3D10065E-HXY#C51896241HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹159.57 · 48 in stock | View |
 | HC3D10065E#C22449557HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 6 | ₹337.78 · 6 in stock | View |
 | CSICD10-650 TR13-HXY#C53468120HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹327.44 · 48 in stock | View |
