HGSEMIDatasheet (PDF)

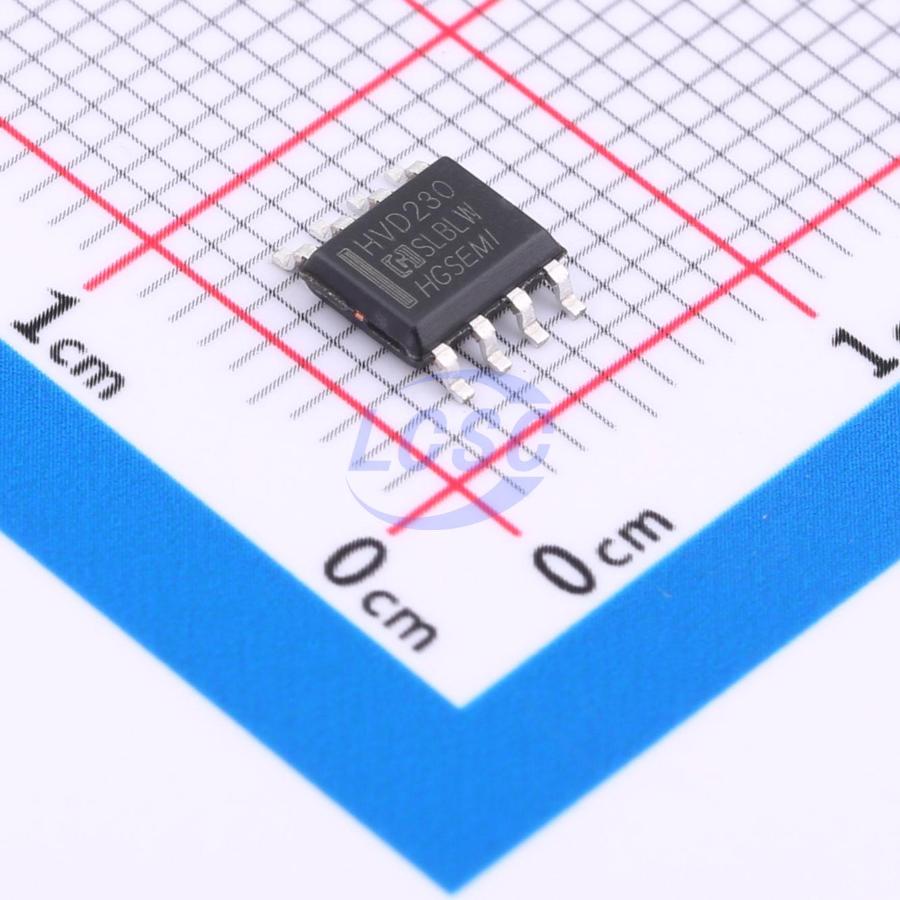

HG65HVD230M/TR
4.75V~5.25V CAN Transceiver 1Mbps SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
High-speed bus receiver
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG65HVD230M/TR
- Store part #
- C7432171
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,232 in stock
#C7432171
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.22 | ₹42.22 |
| 10+ | ₹36.95 | ₹369.50 |
| 30+ | ₹34.62 | ₹1,038.60 |
| 100+ | ₹31.88 | ₹3,188.00 |
| 500+ | ₹30.61 | ₹15,305.00 |
| 1,000+ | ₹29.77 | ₹29,770.00 |
1 × ₹42.22
₹42.22
excl. GST
₹49.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HG65HVD230M/TR
₹42.22 for 1 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- CAN Transceiver
- number of channels
- 1
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+150℃
- Features
- Low-power mode;Wake-up function;TXD dominant timeout;Thermal shutdown protection;Bus fault protection;ESD protection
- Supply Current
- 70mA
- Quiescent Supply Current
- 15uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
The HG65HVD230 is an interface between a CAN protocol controller and the physical bus. It is primarily designed for high-speed automotive applications at rates up to 1 Mbaud. The HG65HVD230 provides differential transmit capability to the bus and differential receive capability to the CAN controller. The HG65HVD230 features excellent EMC performance and ideal passive behavior in an unpowered state, along with low-power management and remote wake-up capability.
Applications
- Automotive Electronics
Key features
- Fully compliant with ISO 11898
- High speed (up to 1 Mbaud)
- Very low electromagnetic emission (EME)
- Wide common-mode range differential receiver for EMI immunity
- Unpowered transceiver disconnects from bus (zero load)
- Input stage compatible with 3.3V to 5V devices
- Split termination voltage source stabilizes recessive bus level (further improves EME)
- Supports connection of at least 110 nodes
- Ultra-low current standby mode with bus wake-up (remote) capability
- TXD dominant timeout function
- Bus pin protection against automotive transient environments
- Thermal protection against bus pins and SPLIT pin short-circuit to supply and ground
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HGA1040M/TR#C512780HGSEMI · SOIC-8 | HGSEMI | SOIC-8 | 2,461 | ₹63.73 · 2,461 in stock | View |
 | PCA82C251M/TR#C7432060HGSEMI · SOP-8 | HGSEMI | SOP-8 | 871 | ₹52.44 · 871 in stock | View |
 | HGA82C251M/TR#C7432110HGSEMI · SOP-8 | HGSEMI | SOP-8 | 185 | ₹66.31 · 185 in stock | View |
 | TJA1050M/TR#C7432164HGSEMI · SOP-8 | HGSEMI | SOP-8 | 4,493 | ₹63.03 · 4,493 in stock | View |
 | TJA1040M/TR#C7432165HGSEMI · SOP-8 | HGSEMI | SOP-8 | 976 | ₹43.02 · 976 in stock | View |
