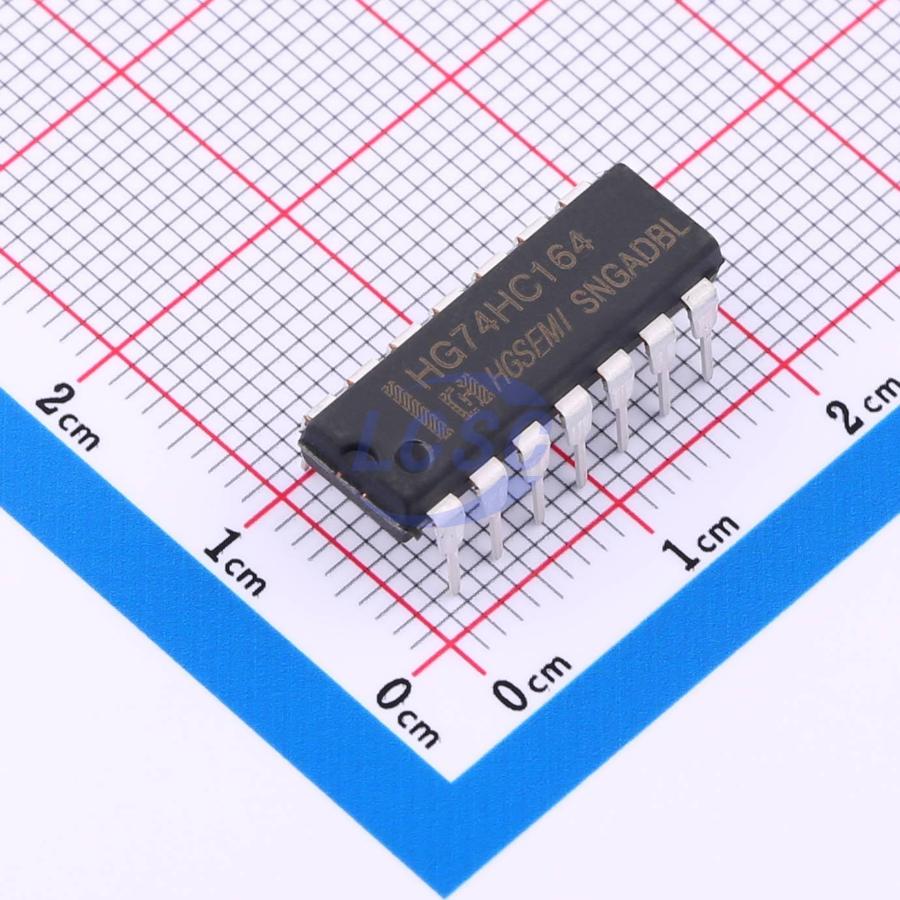

HG74HC164N
2V~6V 25mA Serial-to-Parallel DIP-14 Shift Registers
DIP-14RoHSActive
8-bit register with two-wire input
- Manufacturer
- HGSEMI
- Manufacturer part #
- HG74HC164N
- Store part #
- C19193511
- Package / case
- DIP-14
- Category
- Shift Registers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,170 in stock
#C19193511
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.72 | ₹103.60 |
| 50+ | ₹16.22 | ₹811.00 |
| 150+ | ₹14.29 | ₹2,143.50 |
| 500+ | ₹11.89 | ₹5,945.00 |
| 2,000+ | ₹10.82 | ₹21,640.00 |
| 5,000+ | ₹10.17 | ₹50,850.00 |
5 × ₹20.72
₹103.60
excl. GST
₹122.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
HG74HC164N
₹103.60 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Series
- 74HC Series
- Output Current
- 25mA
- Features
- Asynchronous clear function
- Propagation Delay
- 24ns@5V,16pF;18ns@5V,16pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 6
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.664 g
Overview
The HG74HC164 is an 8-bit shift register with two-line input, designed using high-speed CMOS process technology. The register is constructed from master-slave D-type flip-flops, offering high noise immunity and interference rejection. On the rising edge of the clock, the 8-bit binary data shifts one position to the right. It features a clear input for easy output data reset. The shift register also supports multi-stage cascade expansion as needed.
Applications
- 8-bit decoder or expansion
- Automation engineering control
Key features
- Low input current: ≤1uA
- Low quiescent current: Icc ≤ 5.0μA @ VCC=6V
- Wide operating voltage range: 2.0V ~ 6.0V
- Propagation delay time: 20ns (typical)
- Compound enable inputs for easy multi-stage expansion
- Package types: DIP-14, SOP-14, TSSOP-14
