HLDatasheet (PDF)

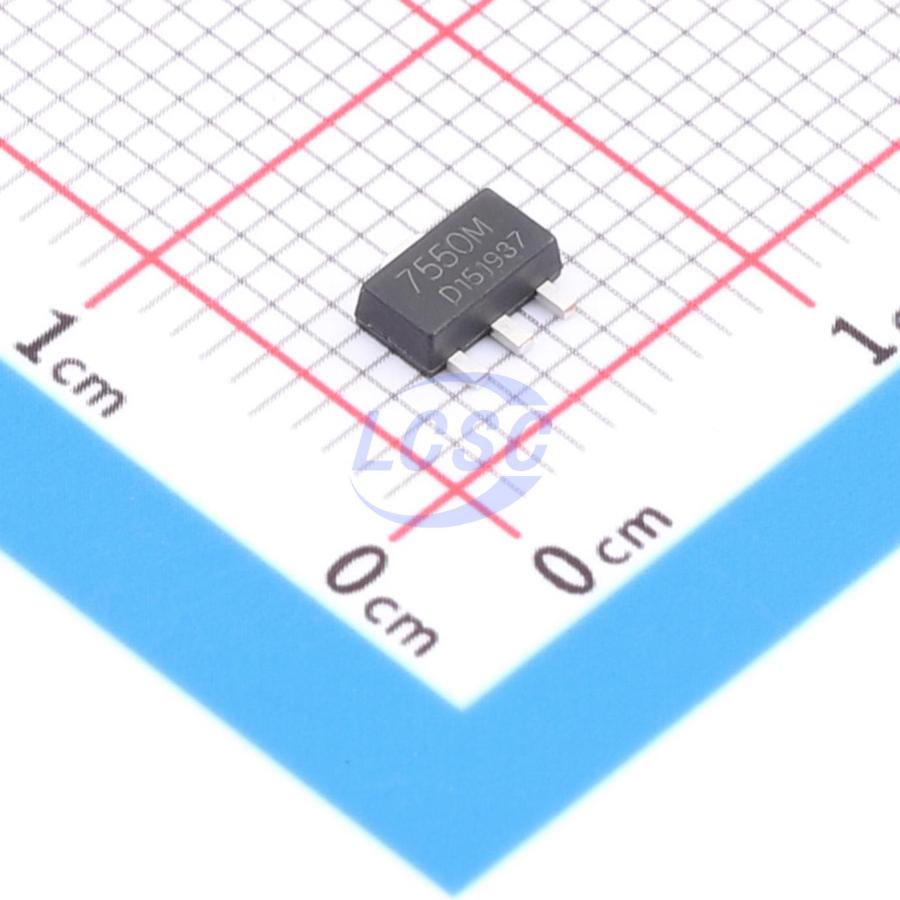

HL7550L
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
- Manufacturer
- HL
- Manufacturer part #
- HL7550L
- Store part #
- C50331909
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C50331909
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.84 | ₹96.80 |
| 200+ | ₹3.80 | ₹760.00 |
| 1,000+ | ₹3.21 | ₹3,210.00 |
| 2,000+ | ₹2.87 | ₹5,740.00 |
| 8,000+ | ₹2.57 | ₹20,560.00 |
| 20,000+ | ₹2.41 | ₹48,200.00 |
20 × ₹4.84
₹96.80
excl. GST
₹114.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HL7550L
₹96.80 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Overview
The HL7550L series is a high-voltage, micropower, low-dropout regulator. The device delivers 100mA output current with a dropout voltage of 450mV at 100mA, and supports input voltages up to 24V. Typical quiescent current is only 2.5µA.
Applications
- Portable battery-powered devices
- Audio/video equipment
- Home automation
- Electronic fingerprint locks
- Smoke detectors and sensors
- Weighing scales
Key features
- Ultra-low quiescent current: 2.5µA (typical)
- Maximum output current: 150mA
- Operating voltage range: 5.5~24V
- Output voltage accuracy: ±2%
- Excellent transient response
- Integrated short-circuit protection
- Over-temperature protection with output current limiting
- Low temperature coefficient
- Stable with ceramic capacitors
- RoHS compliant and lead-free
- Operating temperature range: -40℃ to +85℃
- Fixed output voltage version: 5V
- Available in green SOT89-3 package
