VBsemi ElecDatasheet (PDF)

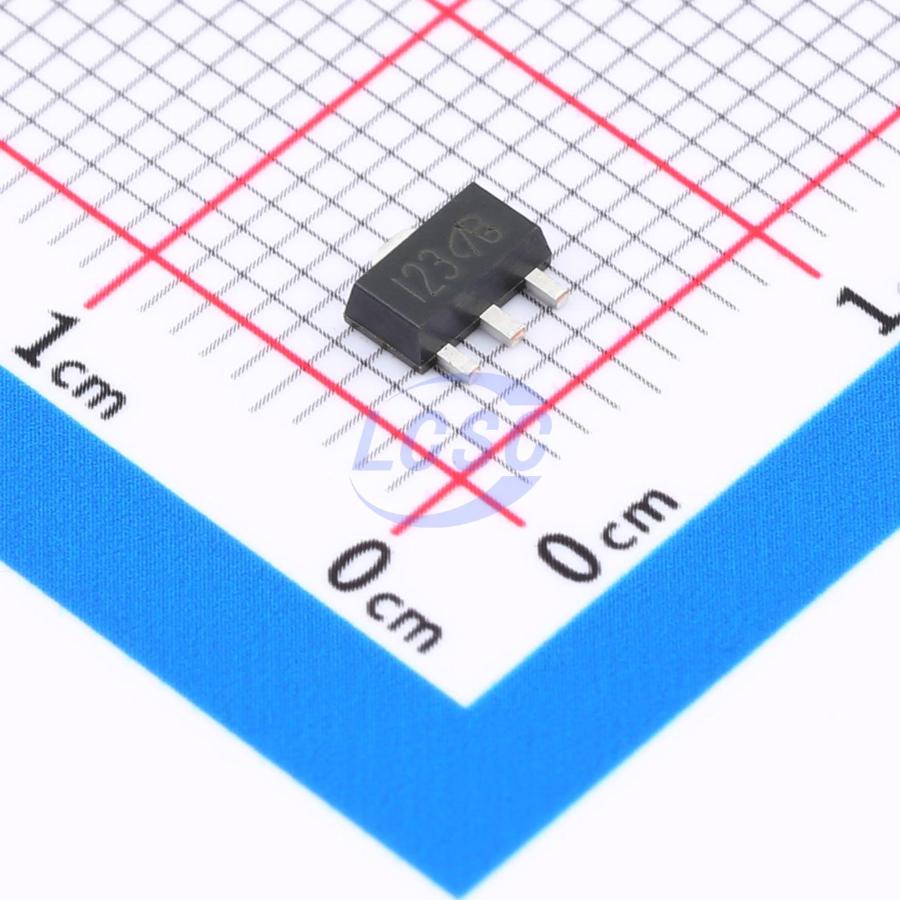

HM3401PR-VB
30V 6A 3.5W 1 P-Channel SOT-89-3 Single FETs, MOSFETs
SOT-89-3RoHSActive
MOSFET P-CH 30V 6A SOT-89-3
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- HM3401PR-VB
- Store part #
- C558138
- Package / case
- SOT-89-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C558138
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.97 | ₹224.85 |
| 50+ | ₹37.63 | ₹1,881.50 |
| 150+ | ₹34.48 | ₹5,172.00 |
| 1,000+ | ₹21.04 | ₹21,040.00 |
| 2,000+ | ₹19.29 | ₹38,580.00 |
| 5,000+ | ₹18.24 | ₹91,200.00 |
5 × ₹44.97
₹224.85
excl. GST
₹265.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HM3401PR-VB
₹224.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 1.355nF
- Pd - Power Dissipation
- 3.5W
- Reverse Transfer Capacitance (Crss)
- 145pF
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 13nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.111 g
Overview
Applications
- Load Switch
- Battery Switch
Key features
- Halogen-free compliant per IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P06P03LCG-VB#C18794941VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 5 | ₹44.07 · 5 in stock | View |
 | 2SJ484-VB#C20417472VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 50 | ₹41.30 · 50 in stock | View |
 | 2SJ317NYTL-E-VB#C19188160VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 45 | ₹34.78 · 45 in stock | View |
 | APM3195PDC-TRLG-VB#C22389263VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 20 | ₹33.04 · 20 in stock | View |
 | 2SJ517-VB#C29778755VBsemi Elec · SOT-89 | VBsemi Elec | SOT-89 | 15 | ₹41.71 · 15 in stock | View |
