HXY MOSFETDatasheet (PDF)

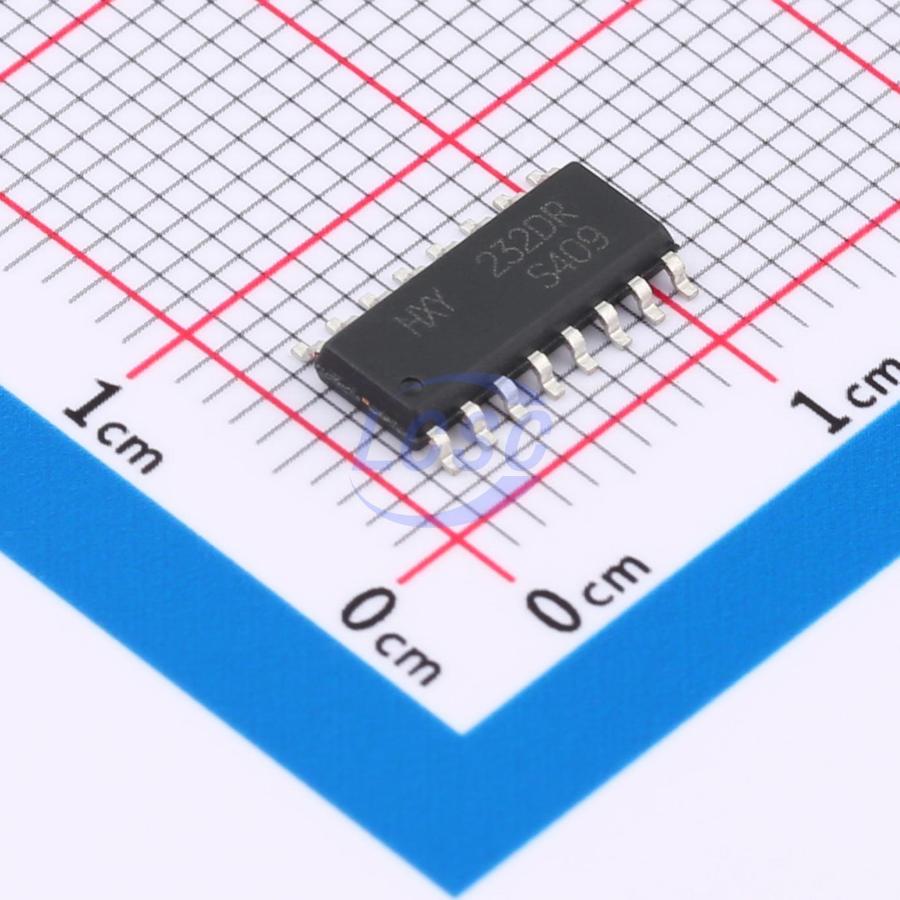

HMAX232DR
4.5V~5.5V Transceiver 140Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
Drivers/Receivers
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HMAX232DR
- Store part #
- C22392679
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,255 in stock
#C22392679
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.56 | ₹232.80 |
| 50+ | ₹36.55 | ₹1,827.50 |
| 150+ | ₹32.27 | ₹4,840.50 |
| 500+ | ₹26.92 | ₹13,460.00 |
| 2,500+ | ₹24.54 | ₹61,350.00 |
| 5,000+ | ₹23.11 | ₹1,15,550.00 |
5 × ₹46.56
₹232.80
excl. GST
₹274.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HMAX232DR
₹232.80 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 140Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.198 g
Overview
HMAX232DR is an integrated circuit designed for high-performance information processing systems and a wide range of controller applications. Its input voltage levels are compatible with standard CMOS levels.
Applications
- Portable computers
- Battery-powered RS-232 systems
- Interface conversion
- Low-power modems
- Terminal equipment
Key features
- Output voltage levels compatible with C-MOS, N-MOS, and TTL IC input levels.
- Supply voltage range: 2.0 to 6.0 V
- Low input current: 1.0 μA; 0.1 μA at T = 25 °C.
- Output current: 24 mA.
- Latch-up current not less than 450 mA at T = 25 °C.
- Withstandable electrostatic potential not less than 2000V.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP232EEN-HXY#C22386549HXY MOSFET · SOP-16 | HXY MOSFET | SOP-16 | 995 | ₹44.98 · 995 in stock | View |
 | HMAX232ECDR#C22392678HXY MOSFET · SOP-16 | HXY MOSFET | SOP-16 | 97 | ₹71.28 · 97 in stock | View |
 | HMAX232EIDR#C22396402HXY MOSFET · SOP-16 | HXY MOSFET | SOP-16 | 2,436 | ₹61.23 · 2,436 in stock | View |
 | MAX202-HXY#C22386551HXY MOSFET · SOP-16 | HXY MOSFET | SOP-16 | 58 | ₹54.72 · 58 in stock | View |
 | ADM202-HXY#C22386552HXY MOSFET · SOP-16 | HXY MOSFET | SOP-16 | 33 | ₹73.03 · 33 in stock | View |
