HXY MOSFETDatasheet (PDF)

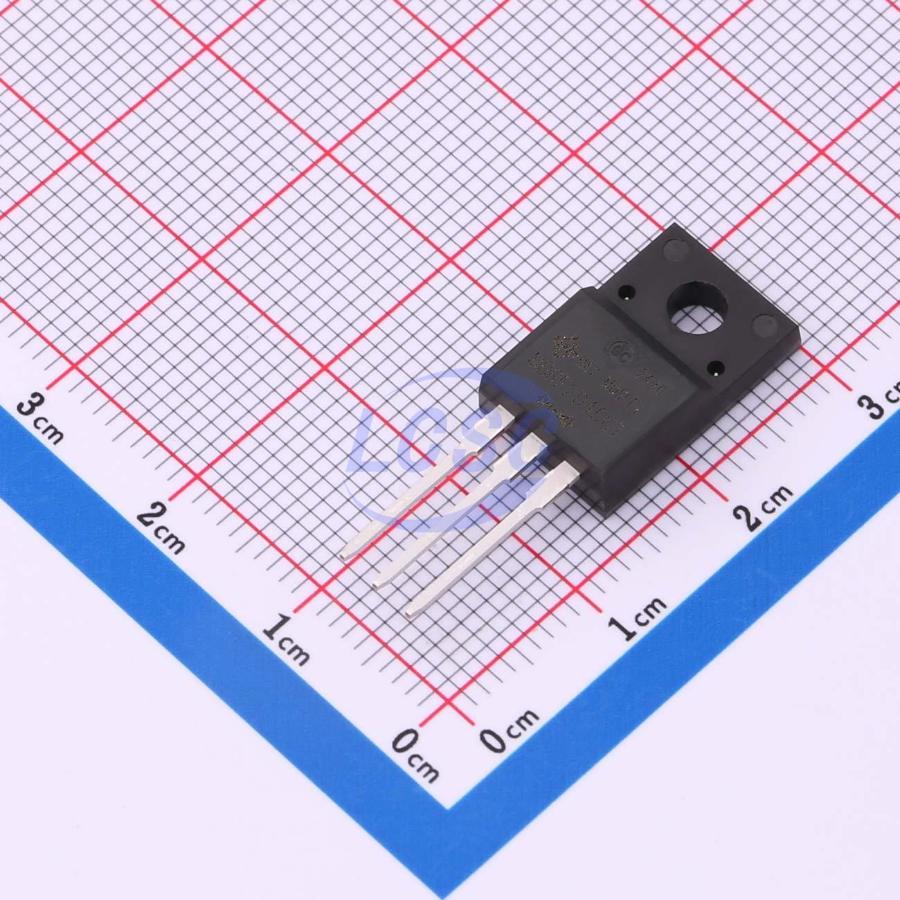

HMBRF2045CT
Diode Array 1 Pair Common Cathode 45V 20A Through Hole TO-220F
TO-220FRoHSActive
DIODE ARR SCHOTTKY 45V TO-220F
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HMBRF2045CT
- Store part #
- C22396415
- Package / case
- TO-220F
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C22396415
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.39 | ₹136.95 |
| 50+ | ₹21.51 | ₹1,075.50 |
| 150+ | ₹18.99 | ₹2,848.50 |
| 500+ | ₹15.85 | ₹7,925.00 |
| 2,500+ | ₹14.45 | ₹36,125.00 |
| 5,000+ | ₹13.60 | ₹68,000.00 |
5 × ₹27.39
₹136.95
excl. GST
₹161.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HMBRF2045CT
₹136.95 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Diode Configuration
- 1 Pair Common Cathode
- Voltage - Forward(Vf@If)
- 650mV
- Reverse Leakage Current (Ir)
- 100uA@45V
- Non-Repetitive Peak Forward Surge Current
- 175A
- Current - Rectified
- 20A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.42 g
Overview
Key features
- Low power dissipation, high efficiency
- High surge capacity
- Suitable for low-voltage high-frequency inverters, freewheeling, and polarity protection applications
- Metal-silicon junction, majority carrier conduction
- High current capability, low forward voltage drop
- Guard ring for overvoltage protection
