ADIDatasheet (PDF)

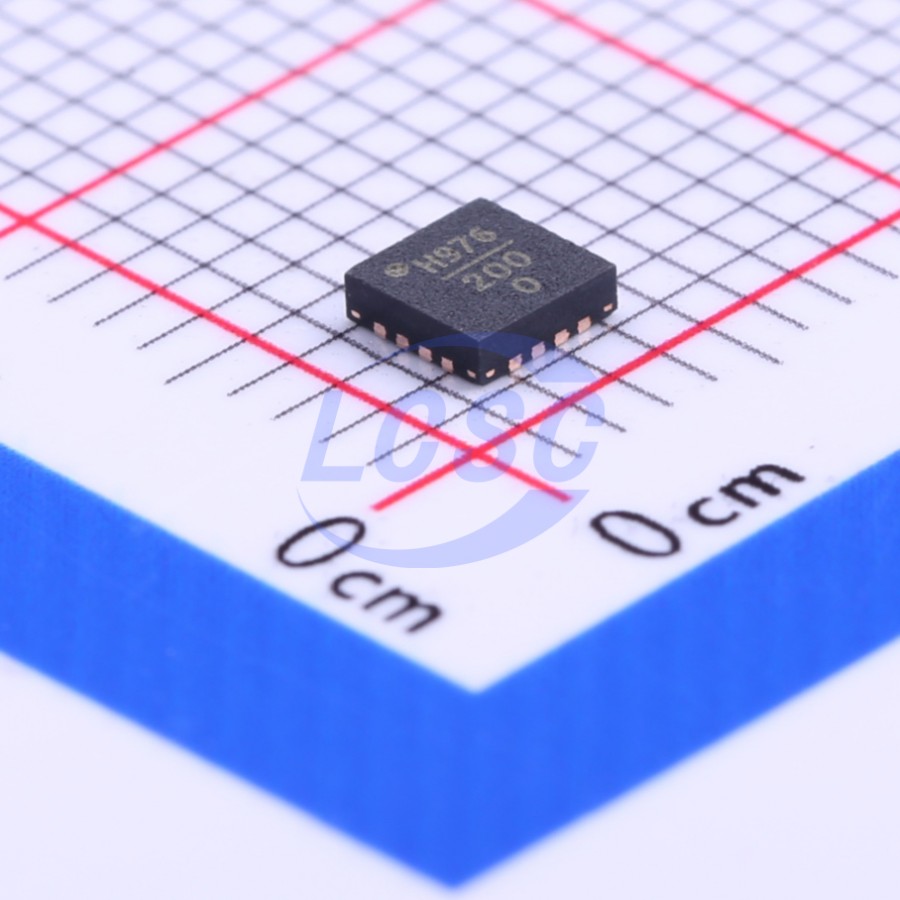

HMC976LP3E
1.8V~5.1V Positive Adjustable QFN-16(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
QFN-16(3x3)ROHS CompliantActive
- Manufacturer
- ADI
- Manufacturer part #
- HMC976LP3E
- Store part #
- C208177
- Package / case
- QFN-16(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34 in stock
#C208177
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,434.85 | ₹1,434.85 |
| 10+ | ₹1,234.09 | ₹12,340.90 |
| 30+ | ₹1,111.85 | ₹33,355.50 |
| 100+ | ₹1,009.20 | ₹1,00,920.00 |
1 × ₹1,434.85
₹1,434.85
excl. GST
₹1,693.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
HMC976LP3E
₹1,434.85 for 1 + GST
Specifications
- Output Voltage
- 1.8V~5.1V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.1mA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 400mA
- Features
- Enable control;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.1 g
Overview
The HMC976LP3E is a BiCMOS ultra low noise linear voltage regulator. The high Power Supply Rejection Ratio (PSRR) in the 0.1 MHz to 10 MHz range provides excellent rejection of any preceding switching regulator or other power supply noise. The voltage output is ideal for frequency generation subsystems including Hittite’s broad line of PLLs with integrated VCOs. The output voltage can be adjusted lower than the default value by using one external resistor. The output can be set to 5V by grounding the HV pin. The regulator can be powered down by the TTL-compatible Enable input. The HMC976LP3E is housed in a 3x3mm QFN SMT package.
Applications
- Test Instrumentation
- Basestation Infrastructure
- Ultra Low Noise Frequency Generation
- Fractional-N Synthesizer Supply
- Microwave VCO Supply
- Mixed-Signal Circuit Supply
- Low Noise Baseband Circuit Supply
Key features
- High Output Current: 400mA
- Low Dropout: 300mV at 400mA Output and VR > 3V
- Ultra Low Noise: 3nV/√Hz at 10 kHz, 6nV/√Hz at 1 kHz
- High Power Supply Rejection Ratio (PSRR): < -60 dB at 1 kHz, < -30 dB at 1 MHz
- Adjustable Voltage Output: VR 1.8 to 5V at 400mA
- Designed to work with low ESR ceramic capacitors
- Low Power-Down Current: < 1 μA
- Thermal Protection
- 16 Lead 3x3 mm SMT Package: 9mm²
