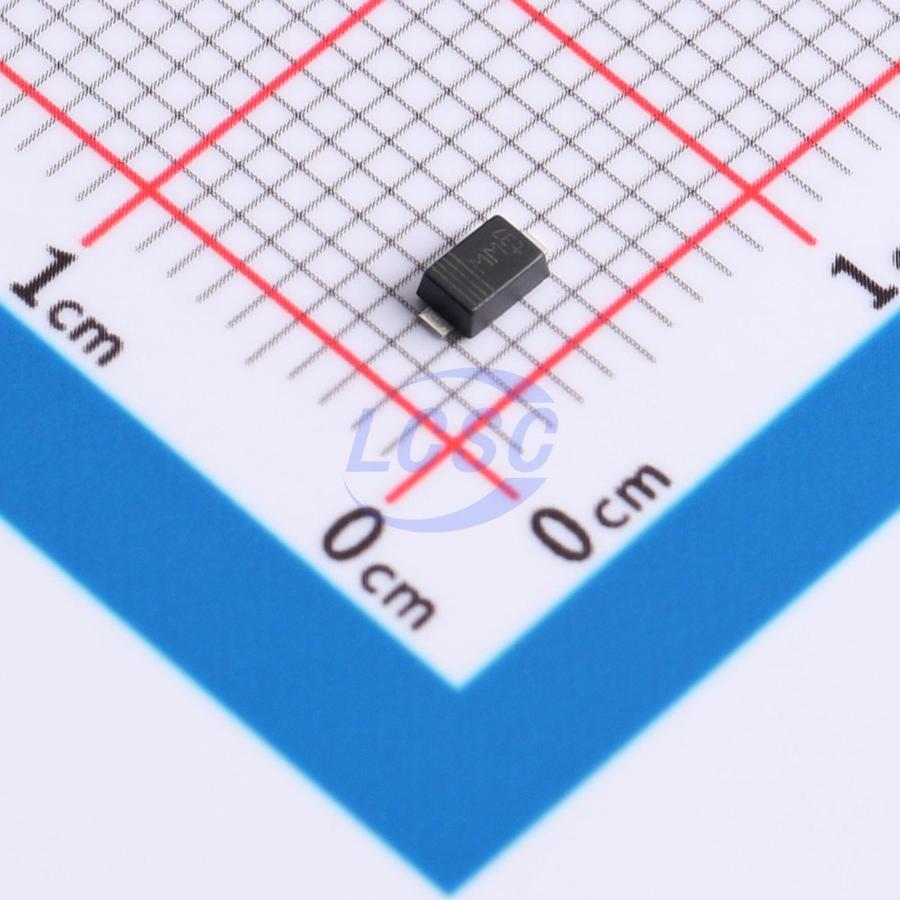

HPZR-C60-QX
1 Independent 56.7V~62.7V 60V SOD-123W Single Zener Diodes RoHS
SOD-123WROHS3 CompliantActive
DIODE ZENER 60V 682mW SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- HPZR-C60-QX
- Store part #
- C6963897
- Package / case
- SOD-123W
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
915 in stock
#C6963897
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.66 | ₹133.30 |
| 50+ | ₹20.82 | ₹1,041.00 |
| 150+ | ₹18.32 | ₹2,748.00 |
| 500+ | ₹15.20 | ₹7,600.00 |
| 3,000+ | ₹13.81 | ₹41,430.00 |
| 6,000+ | ₹12.98 | ₹77,880.00 |
5 × ₹26.66
₹133.30
excl. GST
₹157.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HPZR-C60-QX
₹133.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 682mW
- Reverse Leakage Current (Ir)
- 100nA@51V
- Impedance(Zzt)
- 68.9Ω
- Zener Voltage(Range)
- 56.7V~62.7V
- Zener Voltage(Nom)
- 60V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
High power voltage regulator diodes in a CFP3 (SOD123W) small and flat lead low- profile Surface- Mounted Device (SMD) plastic package.
Applications
- Low-correct general regulation functions
Key features
- Total power dissipation: ≤ 5.5 W @ Tsp = 75℃, measured zero lead length
- Tolerance series: Approximately ± 5%
- Working voltage range: nominal 3.0 V to 75 V
- ESD maximum rating 30 kV according IEC 61000-4-2 (contact discharge)
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HPZR-C60X#C6054149Nexperia · SOD-123W | Nexperia | SOD-123W | 100 | ₹47.39 · 100 in stock | View |
 | LMSZ5264BT1G#C883189LRC · SOD-123 | LRC | SOD-123 | 1,350 | ₹2.77 · 1,350 in stock | View |
 | LMSZ5265BT1G#C2847461LRC · SOD-123 | LRC | SOD-123 | 1,880 | ₹3.02 · 1,880 in stock | View |
 | S-LMSZ5265BT1G#C2932862LRC · SOD-123 | LRC | SOD-123 | 320 | ₹5.48 · 320 in stock | View |
 | BZT52C62#C54930426HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 3,000 | ₹1.43 · 3,000 in stock | View |
