NexperiaDatasheet (PDF)

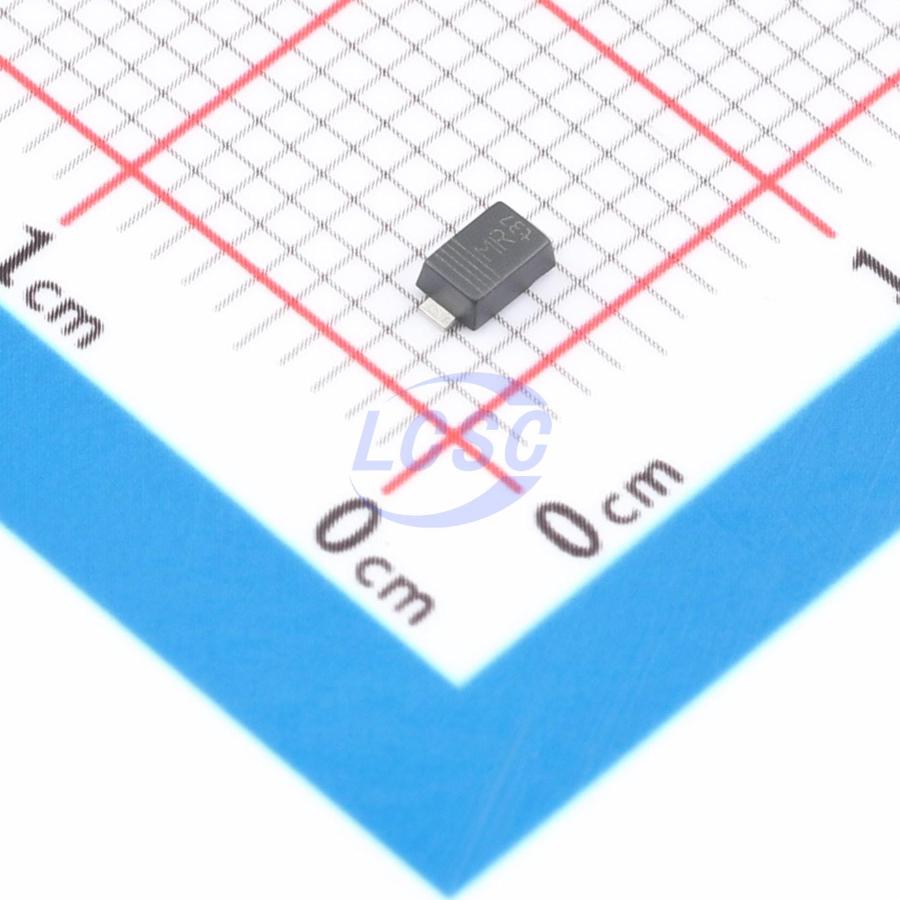

HPZR-C70-QX
1 Independent 66.7V~73.7V 70V SOD-123W Single Zener Diodes RoHS
SOD-123WROHS3 CompliantActive
DIODE ZENER 70V 682mW SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- HPZR-C70-QX
- Store part #
- C5650039
- Package / case
- SOD-123W
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
475 in stock
#C5650039
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.64 | ₹73.64 |
| 10+ | ₹57.56 | ₹575.60 |
| 30+ | ₹50.62 | ₹1,518.60 |
| 100+ | ₹41.93 | ₹4,193.00 |
| 500+ | ₹38.23 | ₹19,115.00 |
| 1,000+ | ₹35.84 | ₹35,840.00 |
1 × ₹73.64
₹73.64
excl. GST
₹86.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HPZR-C70-QX
₹73.64 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 682mW
- Reverse Leakage Current (Ir)
- 100nA@60V
- Impedance(Zzt)
- 76.32Ω
- Zener Voltage(Range)
- 66.7V~73.7V
- Zener Voltage(Nom)
- 70V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
High power voltage regulator diodes in a CFP3 (SOD123W) small and flat lead low- profile Surface- Mounted Device (SMD) plastic package.
Applications
- Low-correct general regulation functions
Key features
- Total power dissipation: ≤ 5.5 W @ Tsp = 75℃, measured zero lead length
- Tolerance series: Approximately ± 5%
- Working voltage range: nominal 3.0 V to 75 V
- ESD maximum rating 30 kV according IEC 61000-4-2 (contact discharge)
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HPZR-C68-QX#C7202530Nexperia · SOD-123W | Nexperia | SOD-123W | 20 | ₹25.75 · 20 in stock | View |
 | MMSZ5266BT1G#C242416onsemi · SOD-123 | onsemi | SOD-123 | 3,170 | ₹7.57 · 3,170 in stock | View |
 | LMSZ5266BT1G#C2936695LRC · SOD-123 | LRC | SOD-123 | 2,540 | ₹3.68 · 2,540 in stock | View |
 | BZT52C68#C7427990NH · SOD-123 | NH | SOD-123 | 4,480 | ₹2.87 · 4,480 in stock | View |
 | MM1Z68W#C2856881JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 3,500 | ₹2.37 · 3,500 in stock | View |
