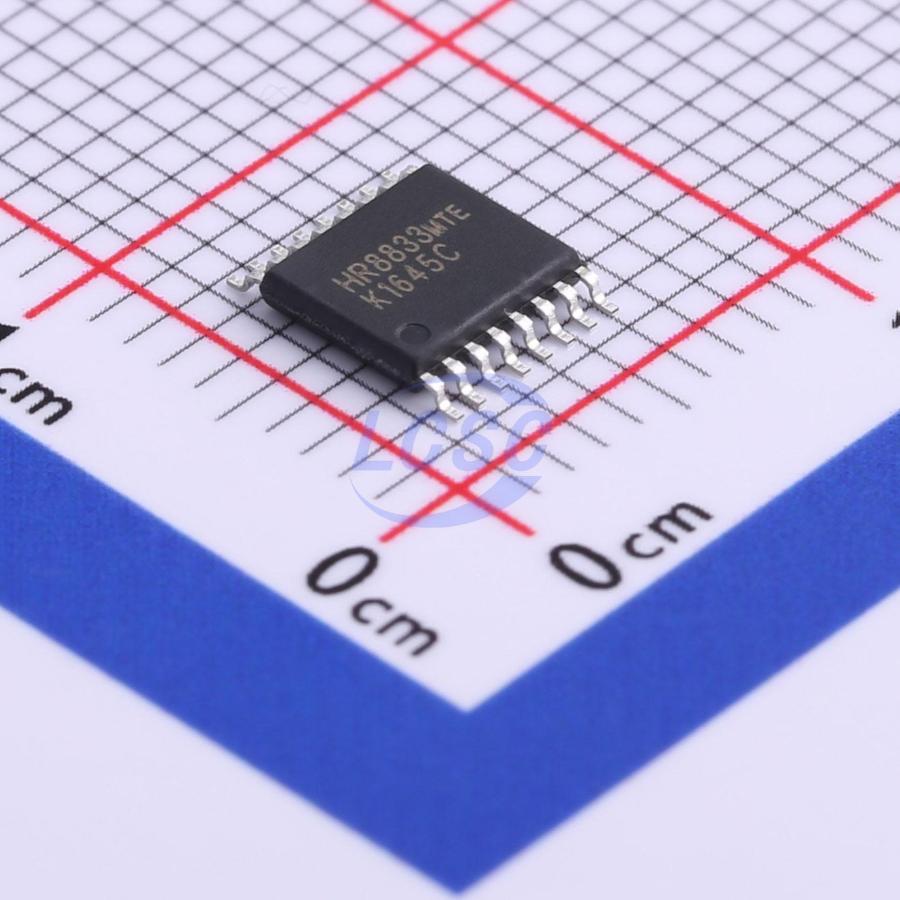

HR8833MTER
ETSSOP-16 Motor Drivers, Controllers RoHS
Dual-channel H-bridge motor driver IC
- Manufacturer
- Jiaxing Heroic Elec Tech
- Manufacturer part #
- HR8833MTER
- Store part #
- C128666
- Package / case
- ETSSOP-16
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,085 in stock
#C128666
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.92 | ₹249.60 |
| 50+ | ₹39.13 | ₹1,956.50 |
| 150+ | ₹34.50 | ₹5,175.00 |
| 500+ | ₹28.74 | ₹14,370.00 |
| 3,000+ | ₹26.17 | ₹78,510.00 |
| 6,000+ | ₹24.62 | ₹1,47,720.00 |
5 × ₹49.92
₹249.60
excl. GST
₹294.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HR8833MTER
₹249.60 for 5 + GST
Specifications
- Number of H-bridges
- 2
- Features
- Interleaved conduction protection;Current sensing/regulation function
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Current
- 1A
- RDS(on)
- 450mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.135 g
Overview
The HR8833 provides an integrated dual-channel motor drive solution for toys, printers, and other mechatronic applications. The device contains two H-bridge drivers capable of driving two brushed DC motors, one bipolar stepper motor, or other inductive loads such as solenoids. The power output stage of each H-bridge is constructed with N-channel power MOSFETs, with integrated rectification and current-limiting circuitry. Internal shutdown functions provide overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature protection, along with a fault detection output pin. The HR8833 is available in two package options: ETSSOP16 with exposed pad and QFN16 with exposed pad, both of which effectively improve thermal dissipation. The product is lead-free and compliant with environmental requirements.
Applications
- Li-ion battery-powered toys
- POS printers
- Security cameras
- Office automation equipment
- Gaming consoles
Key features
- Dual-channel H-bridge motor driver
- Drives two brushed DC motors or one stepper motor
- Low RDS(ON), typical 450mΩ (high-side + low-side)
- 1.5A drive output per channel
- Parallel output support, up to 3A drive output
- Wide supply voltage range: 2.7V to 12V
- PWM control interface
- Integrated over-temperature shutdown
- Short-circuit protection
- Integrated UVLO protection
