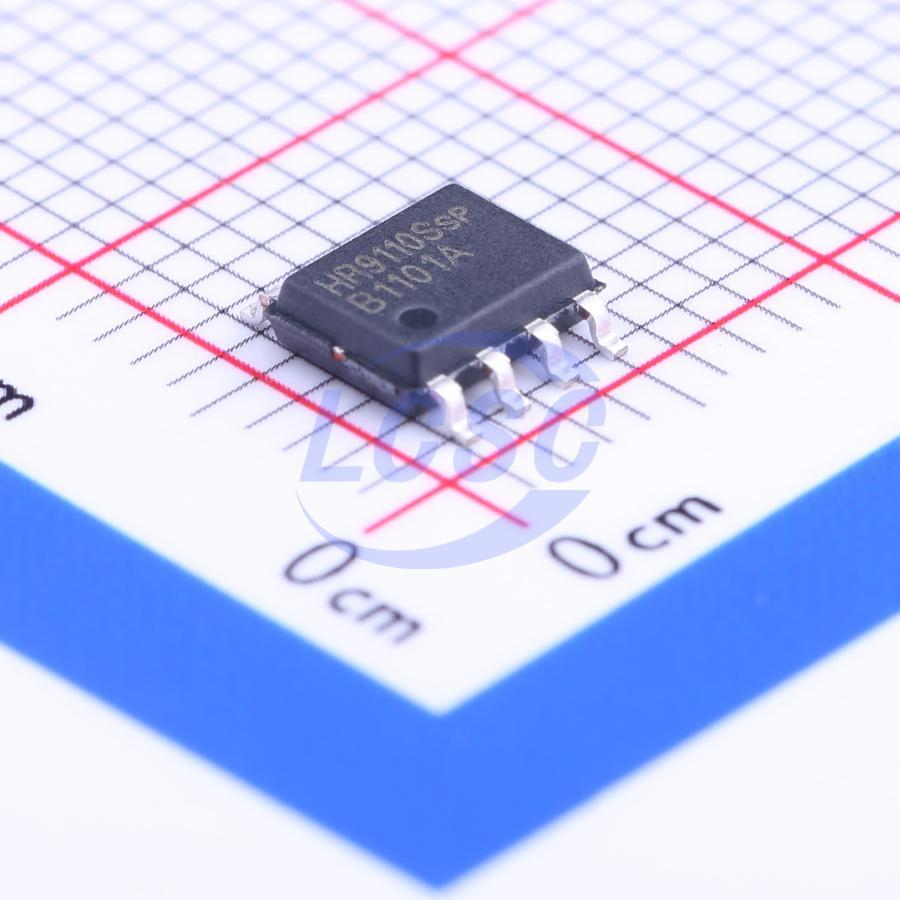

HR9110S
1.8V~5V SOP-8 Motor Drivers, Controllers RoHS
Toy single-channel DC motor driver
- Manufacturer
- Jiaxing Heroic Elec Tech
- Manufacturer part #
- HR9110S
- Store part #
- C130795
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,515 in stock
#C130795
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.30 | ₹146.50 |
| 50+ | ₹23.51 | ₹1,175.50 |
| 150+ | ₹21.02 | ₹3,153.00 |
| 500+ | ₹17.93 | ₹8,965.00 |
| 2,500+ | ₹15.56 | ₹38,900.00 |
| 5,000+ | ₹14.74 | ₹73,700.00 |
5 × ₹29.30
₹146.50
excl. GST
₹172.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HR9110S
₹146.50 for 5 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 1.8V~5V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 0uA
- Output Current
- 1.2A
- Peak Current
- 3A
- RDS(on)
- 300mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
HR9110 is a single-channel H-bridge driver IC designed for DC motor applications. The H-bridge drive section of HR9110 uses low on-resistance PMOS and NMOS power transistors. The low on-resistance ensures minimal power dissipation, allowing the IC to operate safely for extended periods. In addition, HR9110 features low standby current and low quiescent current. These characteristics make HR9110 well-suited for toy applications. HR9110 incorporates an internal over-temperature shutdown protection. When the load motor has low impedance or the output is short-circuited, the output current of HR9110 rises sharply, causing the internal temperature to rise rapidly as well. When the chip temperature exceeds the maximum temperature threshold (typical 150°C), HR9110 shuts down all outputs to prevent potential safety hazards. The drive circuit is re-enabled by the built-in thermal hysteresis only after the chip has returned to a safe operating temperature.
Applications
- Lithium Battery DC Motor Drive Toy Robot Control
Key features
- Single-channel H-bridge driver with integrated PMOS and NMOS
- Four drive modes: forward, reverse, coast, and brake
- Low R<sub>DS(ON)</sub> (0.3Ω), continuous output current 1.2A
- Low standby current (0.01μA) and low quiescent current (0.2mA)
- Low operating voltage
- Wide supply voltage range: 1.8V - 6.8V
- Built-in over-temperature shutdown protection
- RoHS compliant
