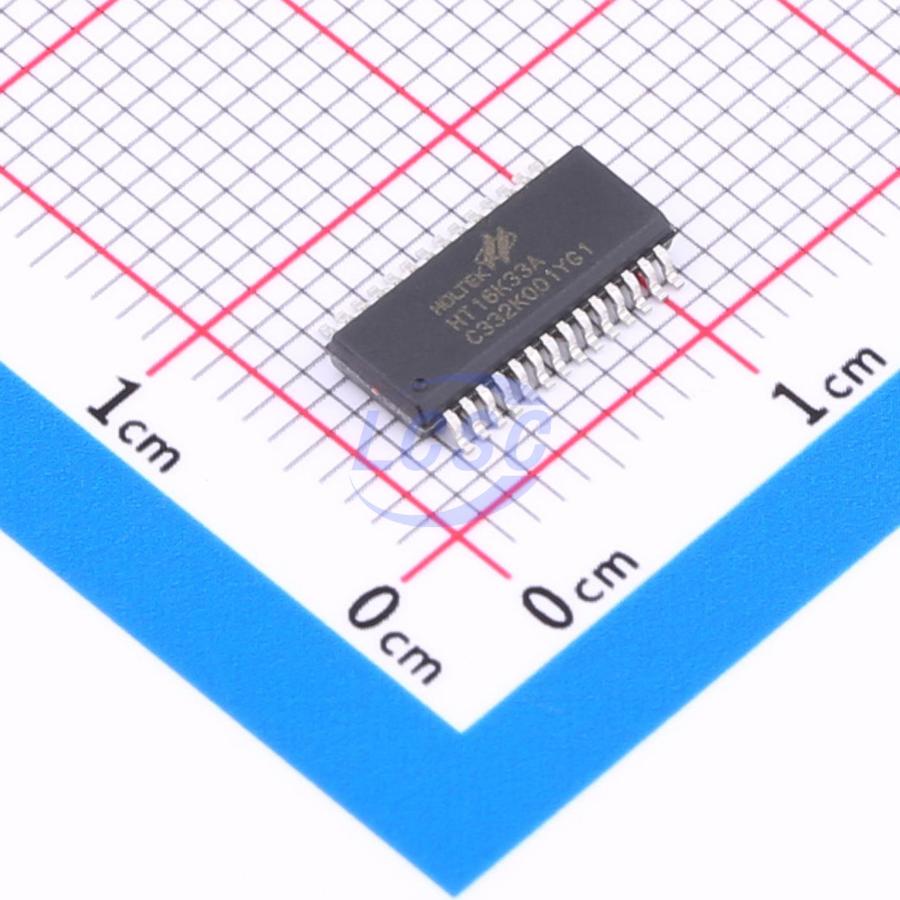

HT16K33A-28SSOP
SSOP-28 Display Drivers
SSOP-28RoHSActive
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT16K33A-28SSOP
- Store part #
- C5444738
- Package / case
- SSOP-28
- Category
- Display Drivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,507 in stock
#C5444738
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.59 | ₹78.59 |
| 10+ | ₹64.01 | ₹640.10 |
| 50+ | ₹56.82 | ₹2,841.00 |
| 100+ | ₹49.64 | ₹4,964.00 |
| 500+ | ₹45.50 | ₹22,750.00 |
| 1,000+ | ₹43.33 | ₹43,330.00 |
1 × ₹78.59
₹78.59
excl. GST
₹92.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HT16K33A-28SSOP
₹78.59 for 1 + GST
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
HT16K33A is a memory-mapped, multi-function LED controller driver IC. The device supports a display mode of up to 128 points (16SEGs×8COMs) and a key scan matrix of up to 13×3. The software-configurable features of the HT16K33A make it suitable for a wide range of LED applications, including LED modules and display subsystems. The HT16K33A communicates with most MCUs via a bidirectional I²C interface.
Applications
- Industrial control indicators
- Digital clocks, thermometers, counters, multimeters
- Set-top boxes
- Video recorder equipment
- Instrument readouts
- Other consumer applications
- LED displays
Key features
- Operating voltage: 4.5V~5.5V
- Internal RC oscillator
- I²C bus interface
- 16×8-bit RAM for display data storage
- Maximum display mode 16×8: 16 SEGs and 8 COMs
- Auto-increment read/write address
- Up to 13×3 key matrix scan
- 16-level dimming circuit
- Package types: 20-pin SOP, 24/28-pin SOP/SSOP
