HTCSEMIDatasheet (PDF)

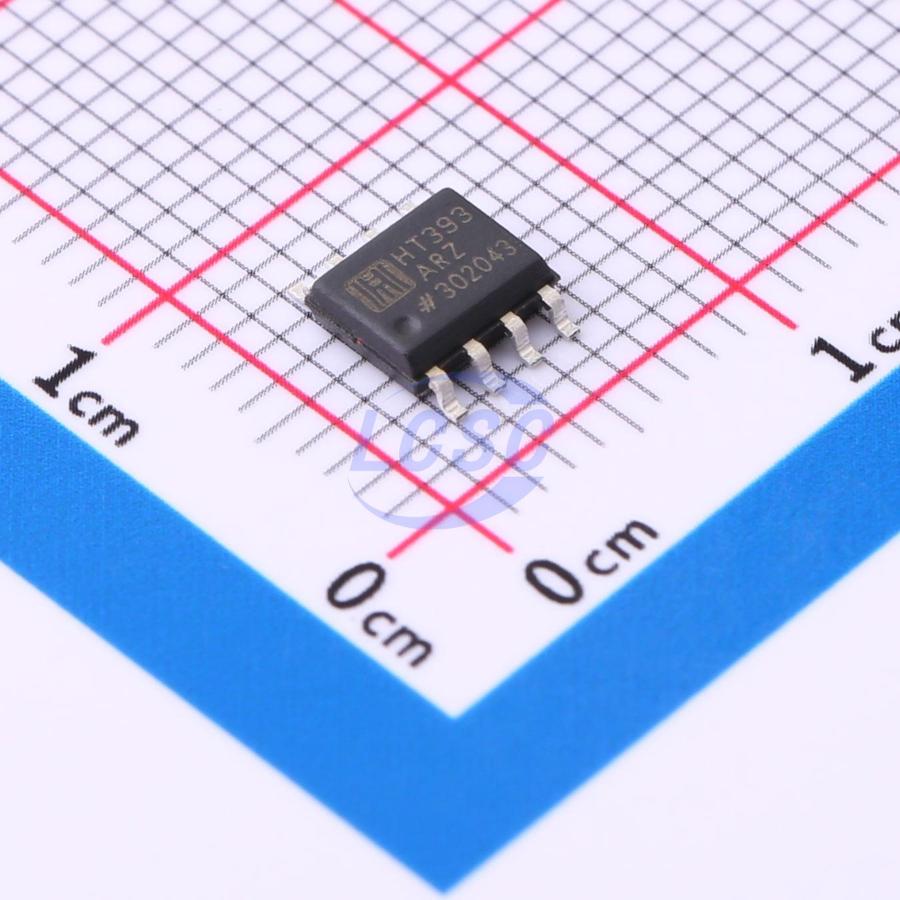

HT393ARZ
5mV 400nA 2 SOIC-8 Linear Comparators
SOIC-8RoHSActive
Low Power Low Offset Voltage Dual Comparators
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT393ARZ
- Store part #
- C5143018
- Package / case
- SOIC-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,868 in stock
#C5143018
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹14.18 | ₹14.18 |
| 10+ | ₹11.26 | ₹112.60 |
| 30+ | ₹9.80 | ₹294.00 |
| 100+ | ₹8.72 | ₹872.00 |
| 500+ | ₹7.85 | ₹3,925.00 |
| 1,000+ | ₹7.40 | ₹7,400.00 |
1 × ₹14.18
₹14.18
excl. GST
₹16.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT393ARZ
₹14.18 for 1 + GST
Specifications
- Features
- ESD protection
- Dual Supply
- 2.5V~15V;-15V~-2.5V
- Vos - Input Offset Voltage
- 5mV
- Ib - Input Bias Current
- 400nA
- Quiescent Current
- 1mA
- Output Mode
- TTL;CMOS
- Number of Channels
- 2
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- -40℃~+85℃
- Response Time (tr)
- 1.3us
- Single Supply
- 5V~30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
The HT393 consists of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for two comparators which were designed specifically to operate from a single power supply over a wide range of voltages.
Applications
- limit comparators
- simple analog to digital converters
- pulse, squarewave and time delay generators
- wide range VCO
- MOS clock timers
- multivibrators
- high voltage digital logic gates
Key features
- Single or Split Supply Operation
- Low Input Bias Current
- Low Input Offset Current
- Input Common Mode Voltage Range to Gnd
- Low Output Saturation Voltage
- TTL and CMOS Compatible
