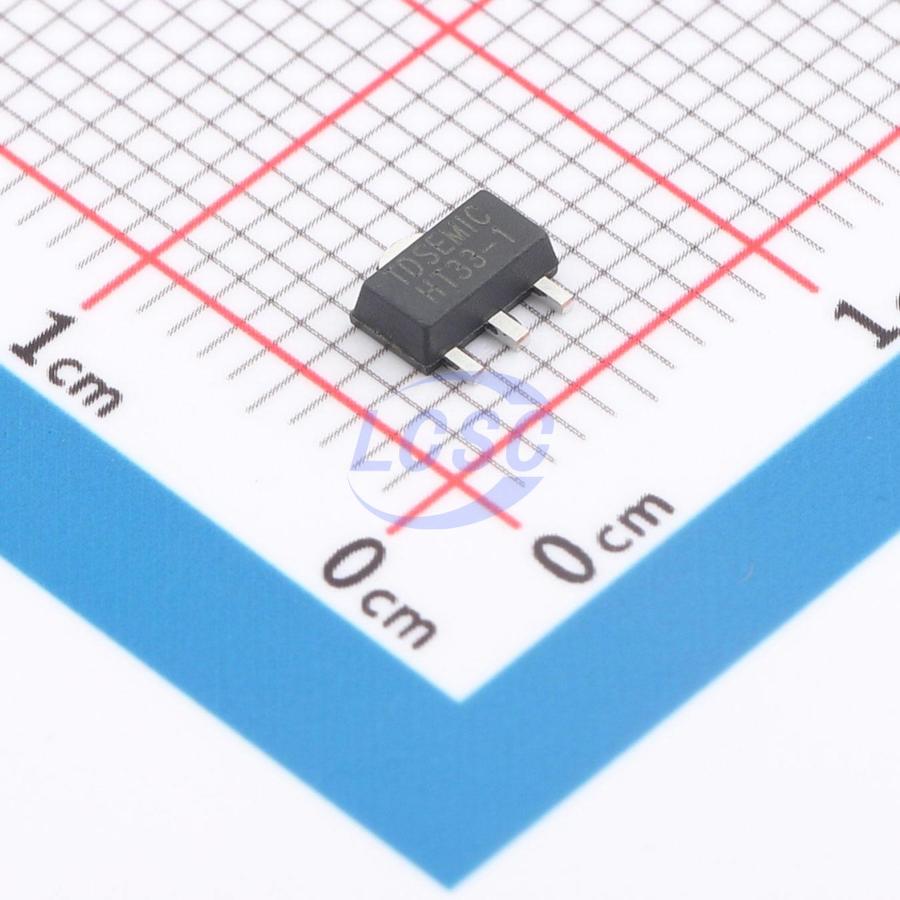

HT7133H-TD(55V)
Linear Voltage Regulator IC 250mA SOT-89
SOT-89ROHS CompliantActive
Low-dropout linear regulator with 250 mA output current, 55 V voltage withstand, and low quiescent current
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7133H-TD(55V)
- Store part #
- C49023492
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38,330 in stock
#C49023492
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.71 | ₹97.10 |
| 100+ | ₹7.69 | ₹769.00 |
| 300+ | ₹6.68 | ₹2,004.00 |
| 1,000+ | ₹5.91 | ₹5,910.00 |
| 5,000+ | ₹5.31 | ₹26,550.00 |
| 10,000+ | ₹5.00 | ₹50,000.00 |
10 × ₹9.71
₹97.10
excl. GST
₹114.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7133H-TD(55V)
₹97.10 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 55V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.156 g
Overview
The HT7133H-TD (55V) is a low-dropout linear regulator based on CMOS technology. It features a 55V voltage rating, output voltages of 3.3V and 5.0V, a maximum output current of 250mA, and low quiescent current consumption. It incorporates output short-circuit protection and thermal derating to prevent system shutdown, making it widely applicable for power supply in audio, video, and communications equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input/output voltage differential
- Small temperature drift coefficient
- 55V voltage rating
- Typical quiescent current: 2.0μA
- Output voltage accuracy: ±1%
- Output short-circuit protection
- Output current derating above junction temperature 120°C
- ESD HBM exceeds 2500V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7533H-TD(55V)#C49023474TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 26,505 | ₹13.31 · 26,505 in stock | View |
