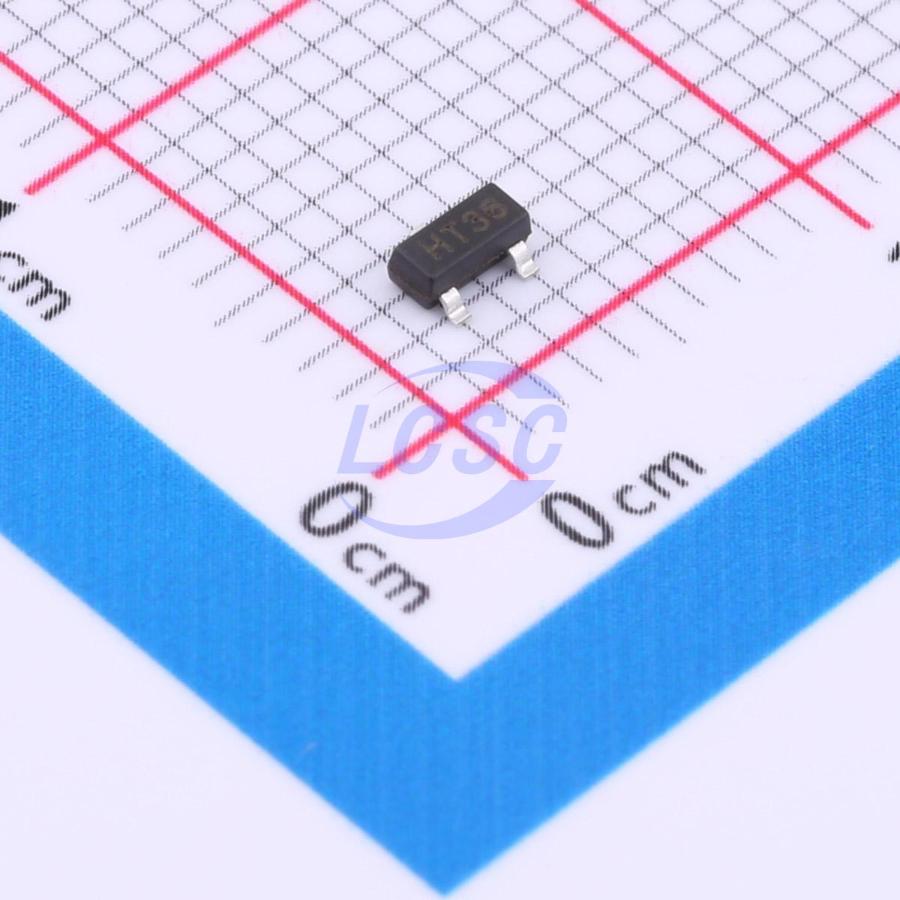

HT7136
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 3.6V 100mA SOT-23-3
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HT7136
- Store part #
- C2984877
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C2984877
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.81 | ₹58.10 |
| 100+ | ₹4.66 | ₹466.00 |
| 300+ | ₹4.09 | ₹1,227.00 |
| 3,000+ | ₹3.33 | ₹9,990.00 |
| 6,000+ | ₹2.99 | ₹17,940.00 |
| 9,000+ | ₹2.82 | ₹25,380.00 |
10 × ₹5.81
₹58.10
excl. GST
₹68.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7136
₹58.10 for 10 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 18V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The HT71XX series are low-power, high-voltage regulators fabricated using CMOS technology, supporting input voltages up to 18V with an output voltage range of 2–5V. Key features include high-accuracy output voltage, ultra-low supply current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: 3μA
- Low dropout voltage: typical 0.1V
- Low temperature drift: typical 50 ppm/℃
- High input voltage: up to 18V
- High output voltage accuracy: ±3% tolerance
- Package types: TO-92, SOT89-3, SOT23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX7536#C296152hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | 1,940 | ₹7.53 · 1,940 in stock | View |
 | HT7536#C2984880hengjiaxing · SOT-23-3 | hengjiaxing | SOT-23-3 | 720 | ₹6.18 · 720 in stock | View |
 | HX7136#C296184hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | 4,400 | ₹5.37 · 4,400 in stock | View |
