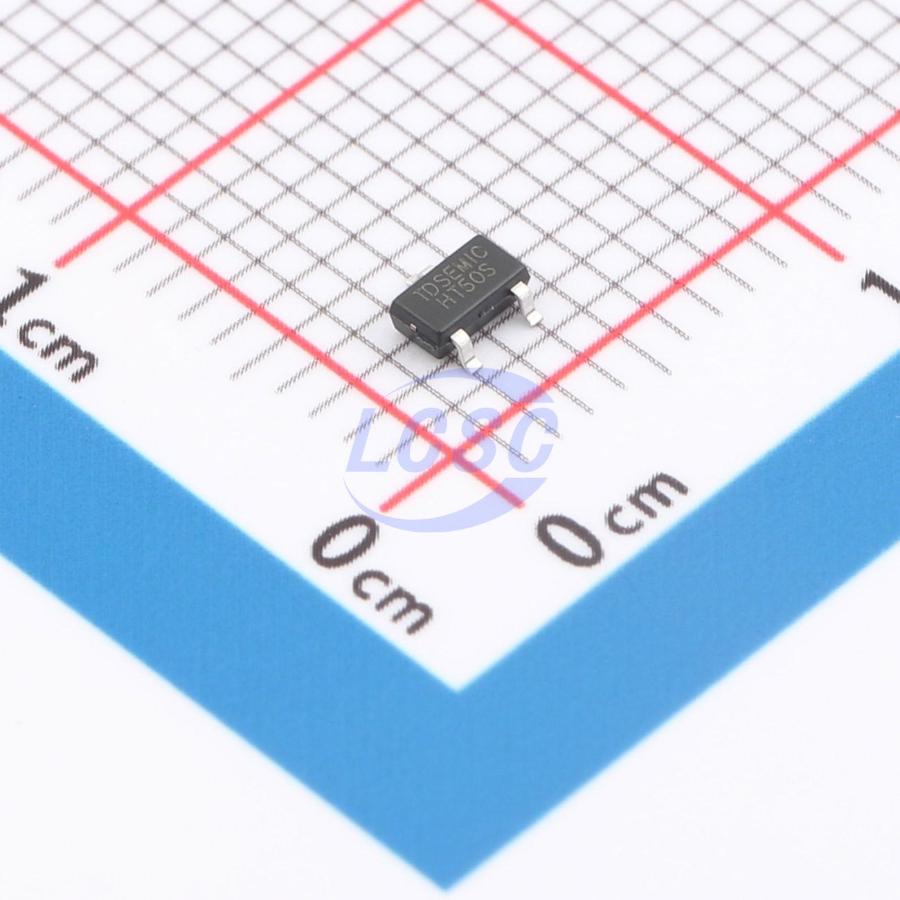

HT7150S
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
100mA LOW POWER LDO
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7150S
- Store part #
- C22466230
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,520 in stock
#C22466230
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.94 | ₹59.40 |
| 100+ | ₹4.67 | ₹467.00 |
| 300+ | ₹4.04 | ₹1,212.00 |
| 3,000+ | ₹3.56 | ₹10,680.00 |
| 6,000+ | ₹3.19 | ₹19,140.00 |
| 9,000+ | ₹3.00 | ₹27,000.00 |
10 × ₹5.94
₹59.40
excl. GST
₹70.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7150S
₹59.40 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
HT71XXS is a low dropout linear regulator using CMOS technology. Maximum output current is 100mA with a maximum allowable input voltage of 36V. Several fixed output voltages are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 36V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7550S#C22466415TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 5,290 | ₹6.43 · 5,290 in stock | View |
 | HT7150S-TD(55V)#C49023491TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 29,500 | ₹9.95 · 29,500 in stock | View |
 | HT7550S-TD(55V)#C49023495TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 14,150 | ₹9.10 · 14,150 in stock | View |
 | HT7150S/H-TD(55V)#C52195502TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 2,990 | ₹10.29 · 2,990 in stock | View |
 | HT7550S/H-TD(55V)#C52195501TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 2,460 | ₹10.29 · 2,460 in stock | View |
