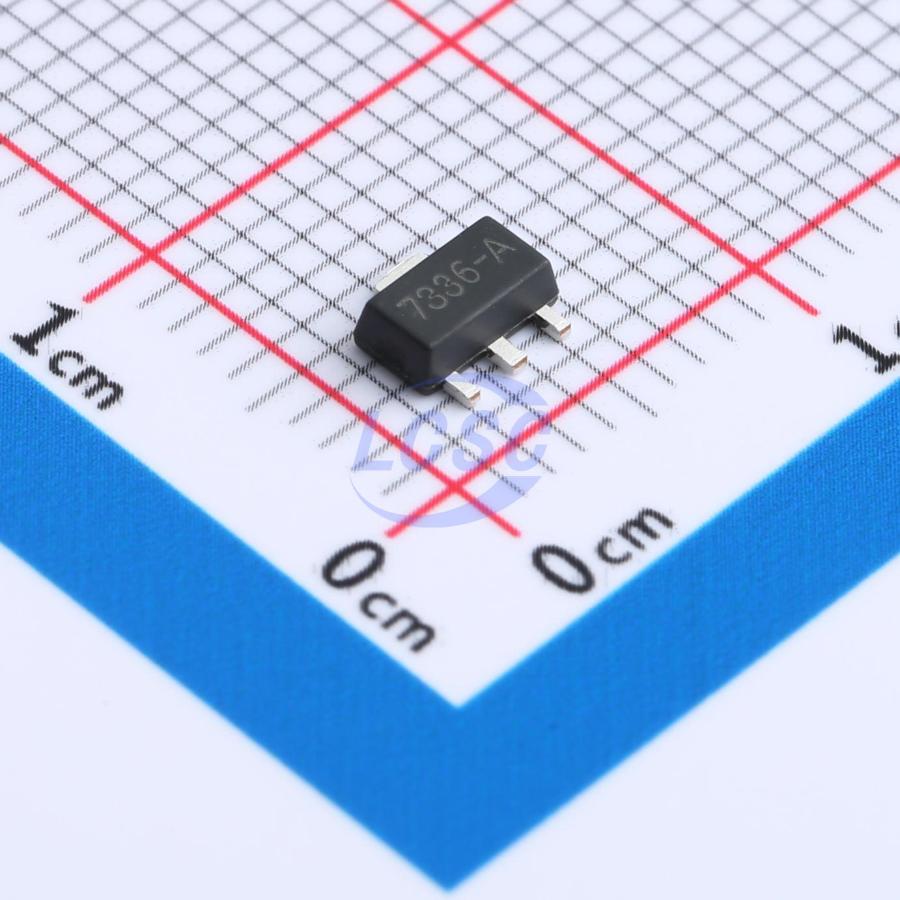

HT7336-A-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89
SOT-89RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- HT7336-A-MS
- Store part #
- C7434193
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
880 in stock
#C7434193
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.88 | ₹88.80 |
| 100+ | ₹7.01 | ₹701.00 |
| 300+ | ₹6.09 | ₹1,827.00 |
| 1,000+ | ₹5.38 | ₹5,380.00 |
| 5,000+ | ₹4.83 | ₹24,150.00 |
| 10,000+ | ₹4.55 | ₹45,500.00 |
10 × ₹8.88
₹88.80
excl. GST
₹104.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7336-A-MS
₹88.80 for 10 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 12V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.14 g
Overview
HT73XX-A-MS is a low dropout linear regulator using CMOS technology. Maximum output current is 250mA, with a maximum allowable input voltage of 12V. Several fixed output voltages are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Operating voltage up to 12V
- Quiescent current 3μA
- Output voltage accuracy: ±3%
- Output current: 250mA
- Package types: SOT23, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7336-1-MS#C7434187MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 470 | ₹9.19 · 470 in stock | View |
 | HT7336-2-MS#C30197518MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 565 | ₹24.65 · 565 in stock | View |
